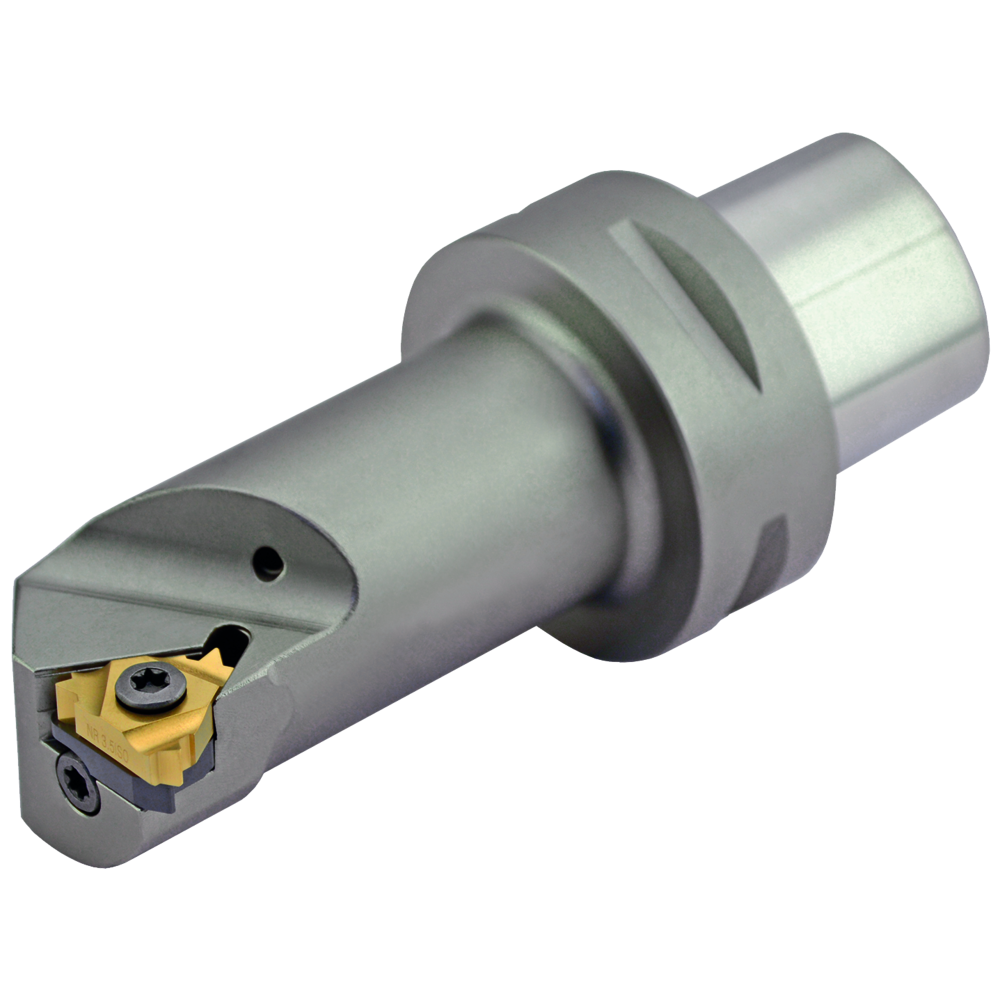

Polygonal thread internal holder PSC40 SIR14060 16 for indexable insert IR16

Polygonal thread internal holder PSC40 SIR14060 16 for indexable insert IR16
Polygonal thread internal holder PSC40 SIR14060 16 for indexable insert IR16 Polygonal thread internal holder PSC40 SIR14060 16 for indexable insert IR16
Price
353,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Polygonal thread boring bar SI90°
  • SI 90°
  • For ISO thread turning insert types IR16 and IR22, setting angle 90º
  • For ISO thread turning insert types IL16 and IL22, setting angle 90º
  • Surface hardness 58 - 60 HRC
  • Core strength HV 670 N/mm²
  • Case depth 0.8 mm ± 0.2 mm
  • Fully burnished and precision-ground
  • Taper surface accuracy max. 1 μm

Article no./ATORN no.
3120270001
Packaging unit
1
Catalogue page

Technical characteristics

Coolant design Internal axial
D min. 25 mm
D1 18,5 mm
D5 40 mm
Design Right-hand
F1 14 mm
for indexable inserts IR..16
ISO designation PSC40 SI.. 14060 16
L1 60 mm
L3 38 mm
