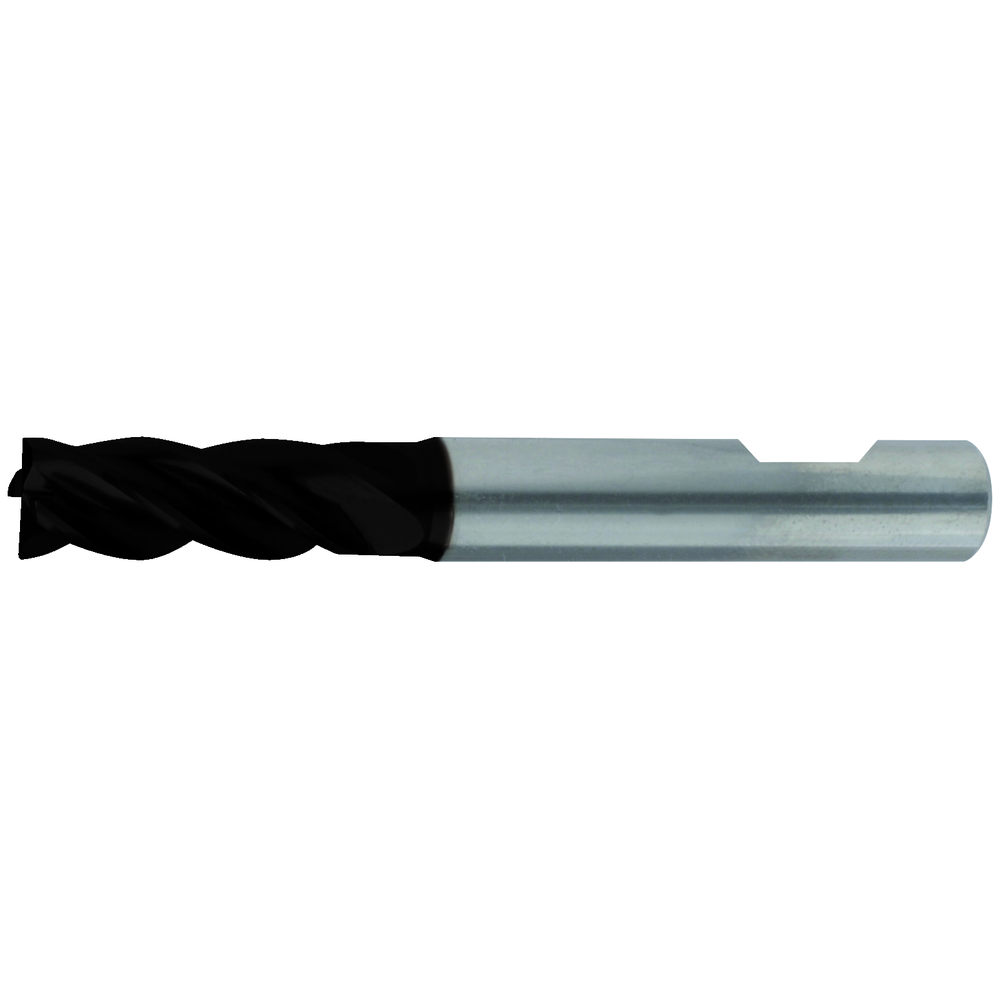

Solid carbide end milling cutter 36°/38° 5,7mm Z=4 HB AlCrN

Solid carbide end milling cutter 36°/38° 5,7mm Z=4 HB AlCrN
Solid carbide end milling cutter 36°/38° 5,7mm Z=4 HB AlCrN Solid carbide end milling cutter 36°/38° 5,7mm Z=4 HB AlCrN
Price
48,70 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Drilling and milling with one tool

Drilling and plunge milling cutter
  • Face geometry for drilling and ramping
  • With clearance
  • Irregular pitch to minimise vibrations
  • High material removal rate
  • High feed rates for plunge milling and groove milling
  • Up to 45° plunge angle
  • Undersized for precise fitting grooves

Standard with driving plane
Article no./ATORN no.
2541450057
Packaging unit
1
Alternative items
View alternative items
Catalogue page
Cutting values
SW-0746

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Coating AlTiN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 5,7 mm
D1 6 mm
D3 5,4 mm
Design HB parallel shank
F x 45° 0,1 mm
Feed fz steel < 1000 N/mm² 0,03 mm/tooth
Feed fz steel < 1000 N/mm² 0,04 mm/tooth
L 57 mm
L1 13 mm
L2 19 mm
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Tooth pitch Unequal
Twist angle 36° | 38°
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
