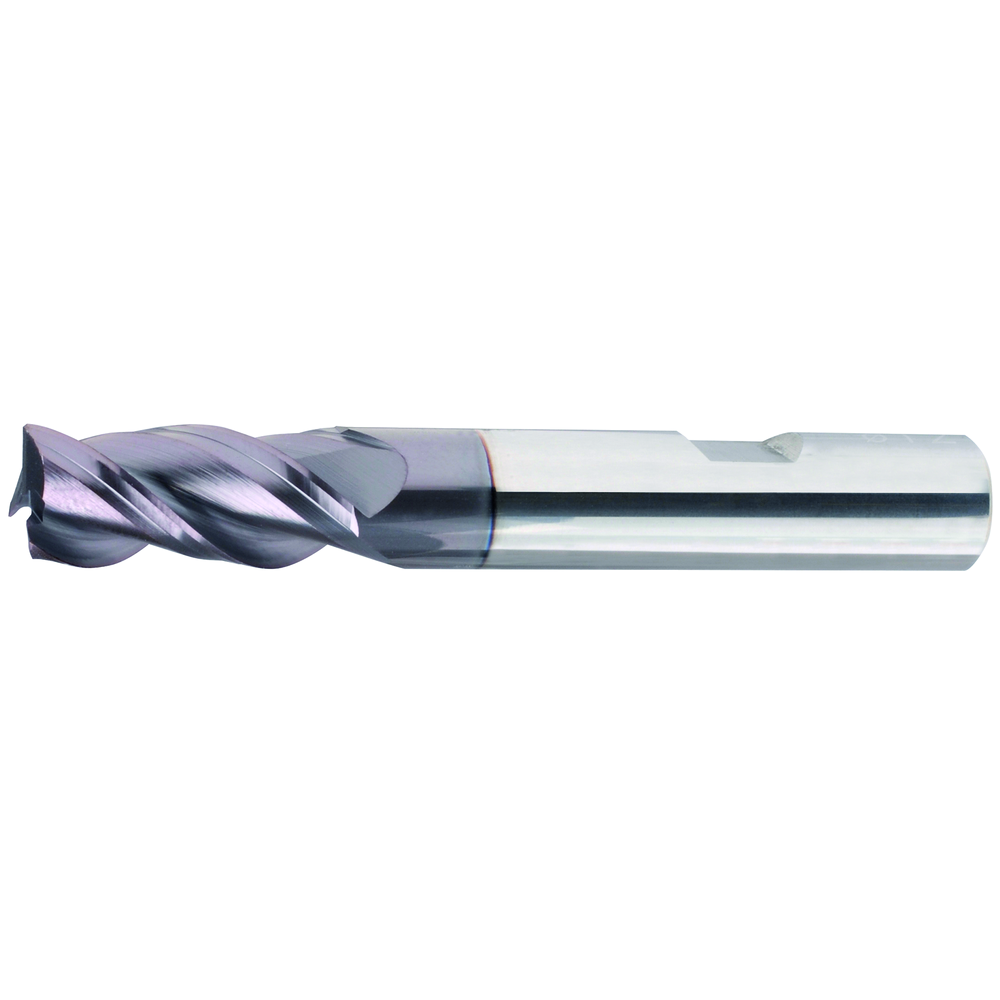

Solid carbide end milling cutter 38/40/42° 3mm Z=3 HB, TiAlN

Solid carbide end milling cutter 38/40/42° 3mm Z=3 HB, TiAlN
Solid carbide end milling cutter 38/40/42° 3mm Z=3 HB, TiAlN Solid carbide end milling cutter 38/40/42° 3mm Z=3 HB, TiAlN
Price:
37,10 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Universal

End milling cutters
  • 38°/40°/42° right-hand helix
  • For universal applications
  • For roughing and finishing
  • For large cutting depths
  • Very high degree of smoothness
  • Protective chamfer for increased service life

Article no./ATORN no.
2510330030
Packaging unit
1
Catalogue page
KS-0425
Cutting values
SW-0736

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3 mm
D1 6 mm
F x 45° 0,1 mm
Feed for grooving fz steel < 1000 mm² 0,01 mm/tooth
Feed for side milling fz steel < 1000 mm² 0,012 mm/tooth
L 57 mm
L1 8 mm
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Twist angle 38° | 40° | 42°
Z 3 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
