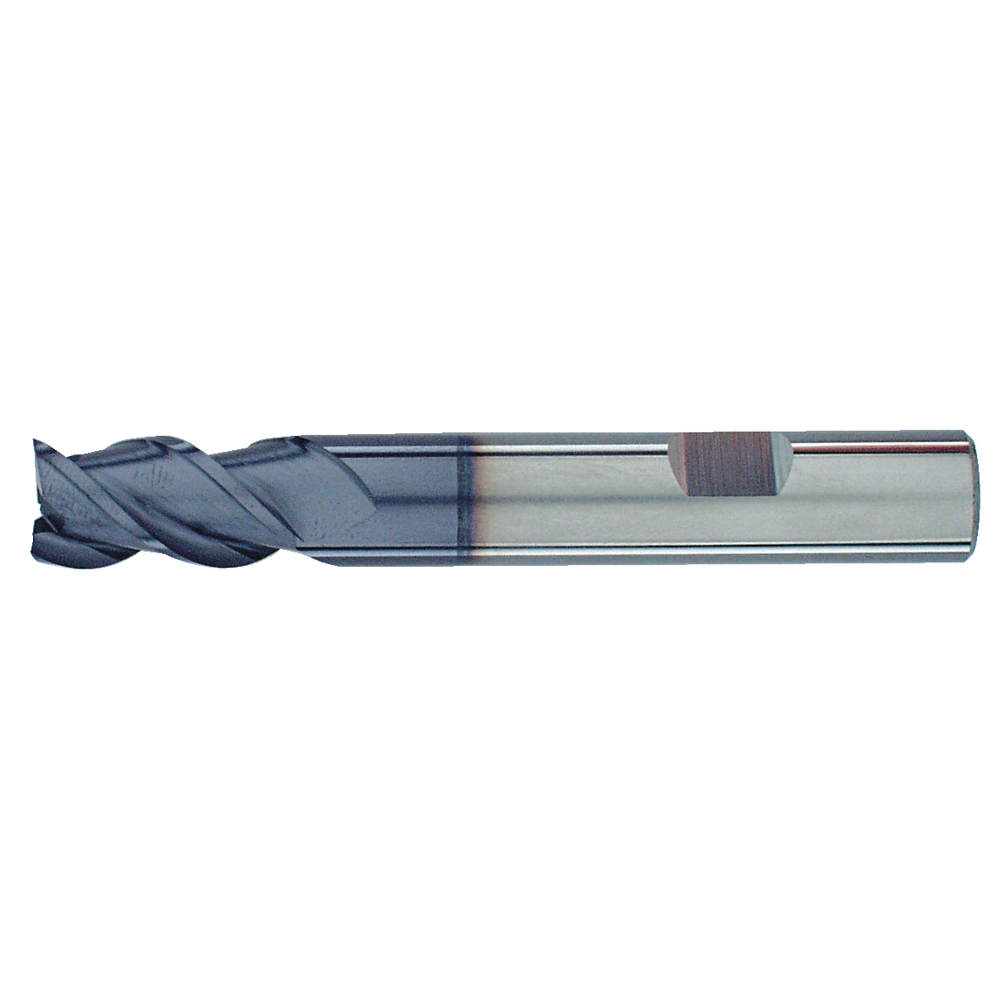

End milling cutter SC 45° 3 mm Z=3 long, HB, TiAlN

End milling cutter SC 45° 3 mm Z=3 long, HB, TiAlN
End milling cutter SC 45° 3 mm Z=3 long, HB, TiAlN End milling cutter SC 45° 3 mm Z=3 long, HB, TiAlN
Price:
13,75 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Basic Line end milling cutter
  • 3 cutting edges, long, 45° right-hand cutting
  • Eccentric relief grinding
  • Cutting material: superfine grain solid carbide

Article no./ATORN no.
2510470030
Packaging unit
1
Catalogue page
KS-0424
Cutting values
SW-0734

Technical characteristics

Application direction milling Lining, ramping and drilling
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3,0 mm
D1 6,0 mm
Feed for grooving fz steel < 1000 mm² 0,012 mm/tooth
Feed for side milling fz steel < 1000 mm² 0,016 mm/tooth
L 57 mm
L1 7 mm
Tolerance of cutting edge diameter e8
Tolerance of shank diameter h5
Tool holding device HB parallel shank
Twist angle 45°
Z 3 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc

very suitable
suitable
Catalogue page Download
Cutting values Download
