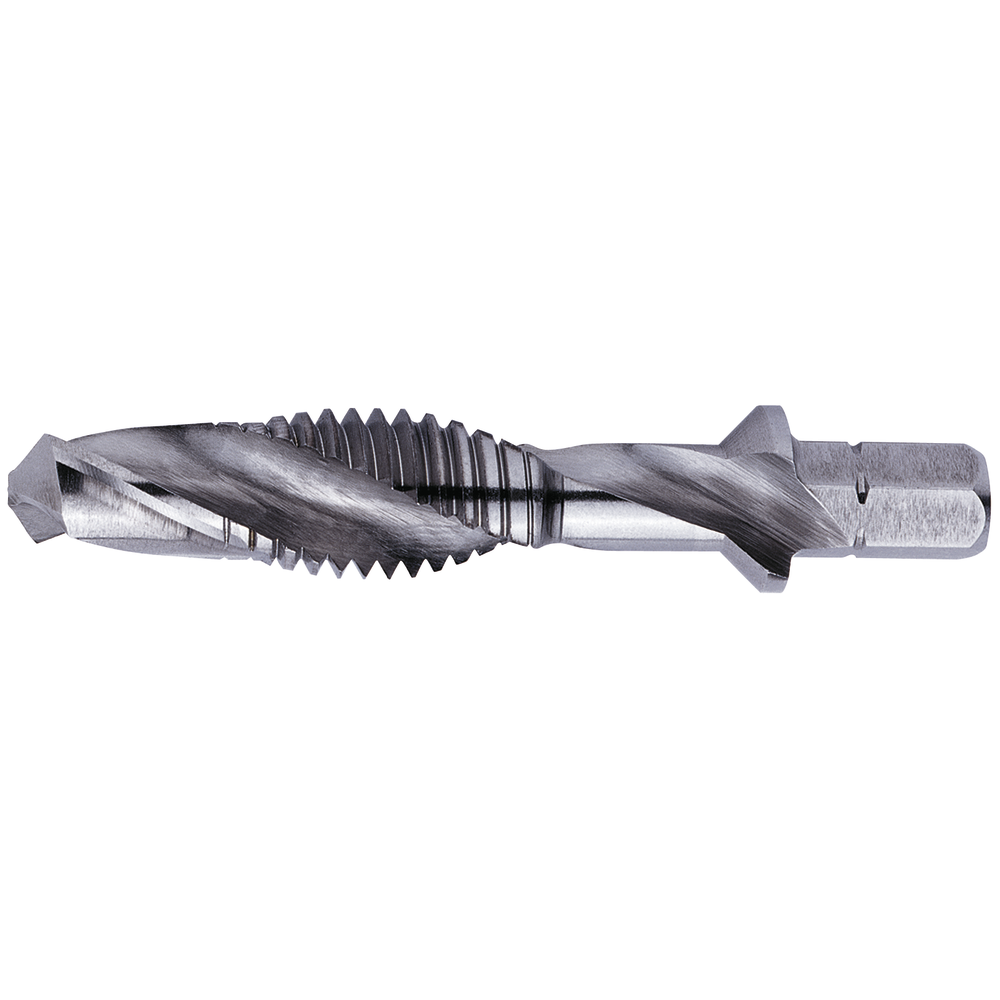

Combination drill bit HSS C6,3-1/4" M3, drill-2,5mm

Combination drill bit HSS C6,3-1/4" M3, drill-2,5mm
Combination drill bit HSS C6,3-1/4" M3, drill-2,5mm
Price:
12,25 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
3-in-1 tool

Combination tap bits
  • For tapping hole creation, threading and deburring in one operation
  • Form C 6.3 hexagonal connector, 6.35 mm (1/4“)
  • For material thickness max. 5-6 mm
  • Increased bending elasticity thanks to heat-treated induction zone
  • Up to 50 % longer service lives
  • Reduced risk of breaking

Single
3-in-1 tool

Combination tap bits
  • For tapping hole creation, threading and deburring in one operation
  • Form C 6.3 hexagonal connector, 6.35 mm (1/4“)
  • For material thickness max. 5-6 mm
  • Increased bending elasticity thanks to heat-treated induction zone
  • Up to 50 % longer service lives
  • Reduced risk of breaking

Single
Article no./ATORN no.
1501290030
Packaging unit
1
Catalogue page

Technical characteristics

D M 3 mm
D M 3 mm
Pitch 0,5 mm
Pitch 0,5 mm
Shank Bit C 6,3
Shank Bit C 6,3
Spiral length 6,5 mm
Spiral length 6,5 mm
Standard constructional dimensions DIN Non-DIN
Standard constructional dimensions DIN Non-DIN
Tapping hole Ø 2,5 mm
Tapping hole Ø 2,5 mm
Thread ISO metric thread
Thread ISO metric thread
Thread angle 60° thread angle °
Thread angle 60° thread angle °
Total length 36 mm
Total length 36 mm

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
copper Cu-alloy
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
