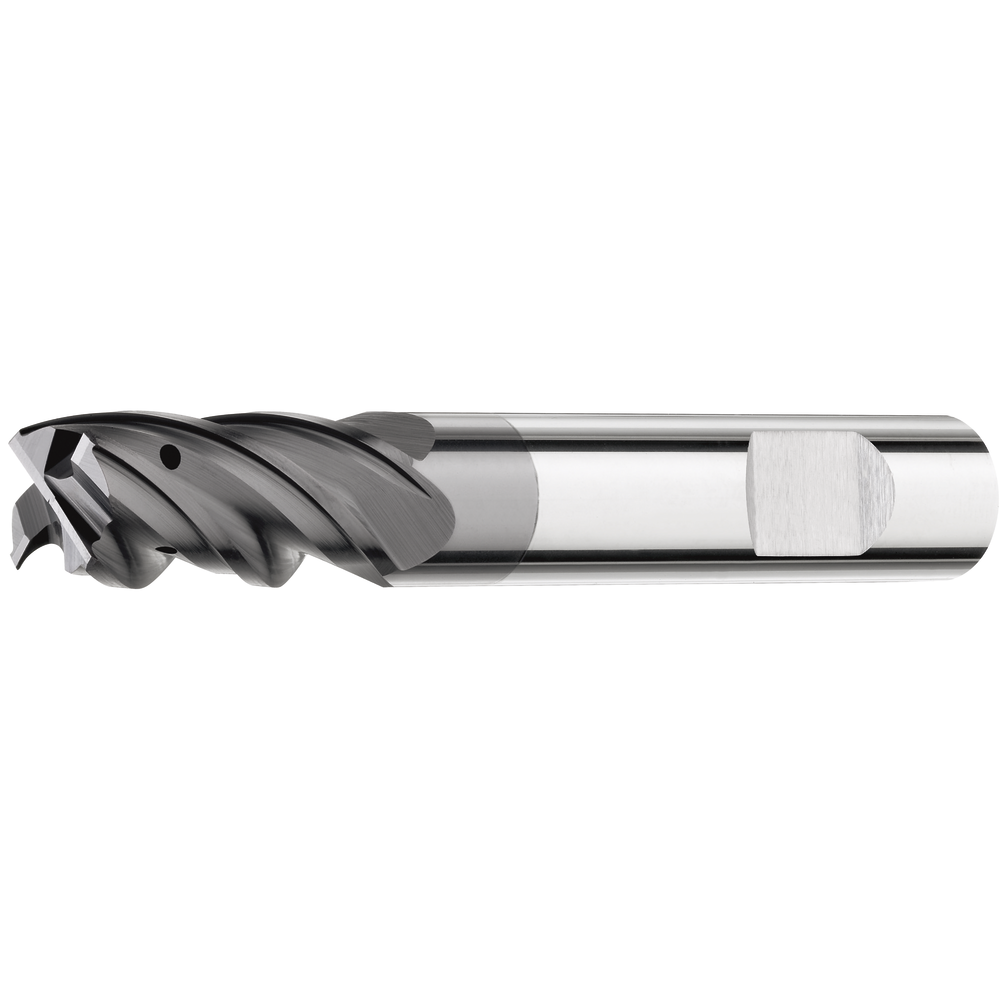

Solid carbide end milling cutter 35°/38° 6mm Z=4 HB IC, TiAlN

Solid carbide end milling cutter 35°/38° 6mm Z=4 HB IC, TiAlN
Solid carbide end milling cutter 35°/38° 6mm Z=4 HB IC, TiAlN Solid carbide end milling cutter 35°/38° 6mm Z=4 HB IC, TiAlN
Price
102,50 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

End milling cutters
  • With internal coolant supply
  • Irregular helix angle and pitch for low-vibration milling
  • With protective chamfer F for improved service life

Article no./ATORN no.
2541400060
Packaging unit
1
Catalogue page
KS-0453
Cutting values
SW-0740

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Coating AlTiN
Coolant supply Internal radial
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 6,0 mm
D1 6 mm
F x 45° 0,20 mm
Feed fz steel < 1000 N/mm² 0,021 mm/tooth
Feed fz steel < 1000 N/mm² 0,025 mm/tooth
L 57 mm
L1 13 mm
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Tooth pitch Unequal
Twist angle 35° | 38°
Type NH
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
STEP Download
DXF Download
Catalogue page Download
Cutting values Download
