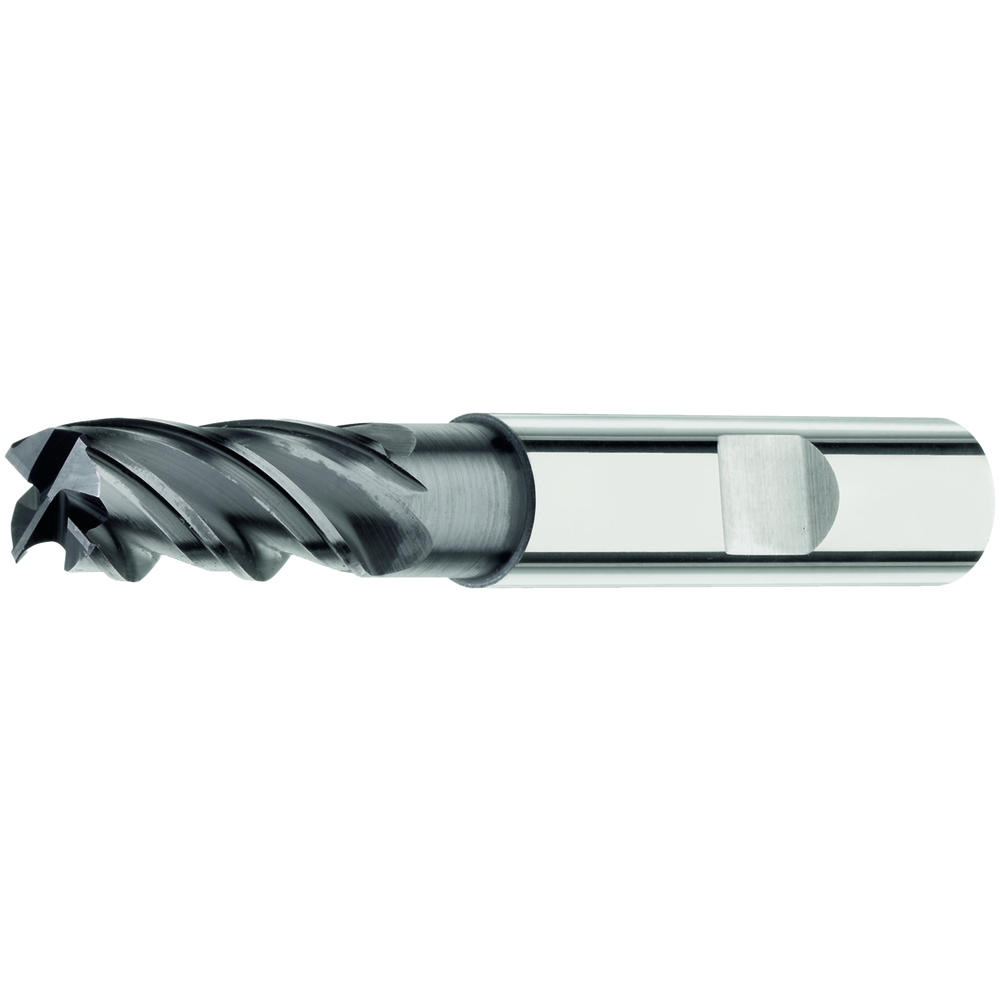

Solid carbide end milling cutter 35°/38° UT 3mm long, clear. Z=4 HB, AlTiN

Solid carbide end milling cutter 35°/38° UT 3mm long, clear. Z=4 HB, AlTiN
Solid carbide end milling cutter 35°/38° UT 3mm long, clear. Z=4 HB, AlTiN Solid carbide end milling cutter 35°/38° UT 3mm long, clear. Z=4 HB, AlTiN
Price
46,60 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

ISO M

End milling cutters Stainless steel
  • With clearance
  • Irregular helix angle and pitch for low-vibration milling
  • With protective chamfer F for improved service life
  • Specially designed for stainless steel machining

Article no./ATORN no.
2541360030
Packaging unit
1
Catalogue page
KS-0454
Cutting values
SW-0745

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Coating AlTiN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3,0 mm
D1 6 mm
D3 2,8 mm
F x 45° 0,13 mm
Feed fz stainless steel austenitic 0,008 mm/tooth
Feed fz stainless steel austenitic 0,009 mm/tooth
L 57 mm
L1 8 mm
L2 18 mm
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Tooth pitch Unequal
Twist angle 35° | 38°
Type N
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
