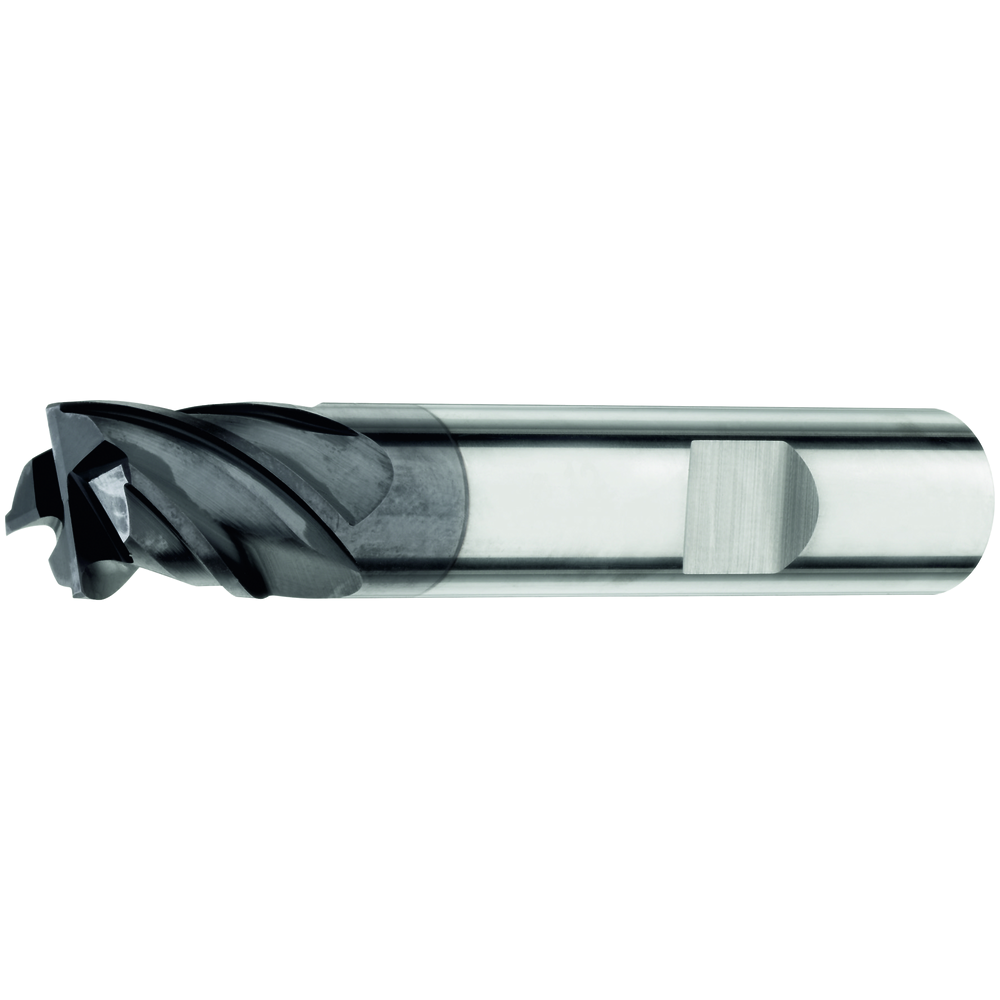

Solid carbide end milling cutter 35°/38° UT 3mm short Z=4 HB, TiAlN

Solid carbide end milling cutter 35°/38° UT 3mm short Z=4 HB, TiAlN
Solid carbide end milling cutter 35°/38° UT 3mm short Z=4 HB, TiAlN Solid carbide end milling cutter 35°/38° UT 3mm short Z=4 HB, TiAlN
Price
37,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

ISO P

End milling cutters
  • Irregular helix angle and pitch for low-vibration milling
  • With protective chamfer F for improved service life
  • Also suitable for dry machining

Short
Article no./ATORN no.
2541300030
Packaging unit
1
Catalogue page
KS-0445
Cutting values
SW-0739

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3,0 mm
D1 6 mm
F x 45° 0,10 mm
Feed fz steel < 1000 N/mm² 0,008 mm/tooth
Feed fz steel < 1000 N/mm² 0,009 mm/tooth
L 54 mm
L1 6 mm
Tolerance of cutting edge diameter h10
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Tooth pitch Unequal
Twist angle 35° | 38°
Type NH
Z 4 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
STEP Download
DXF Download
Catalogue page Download
Cutting values Download
