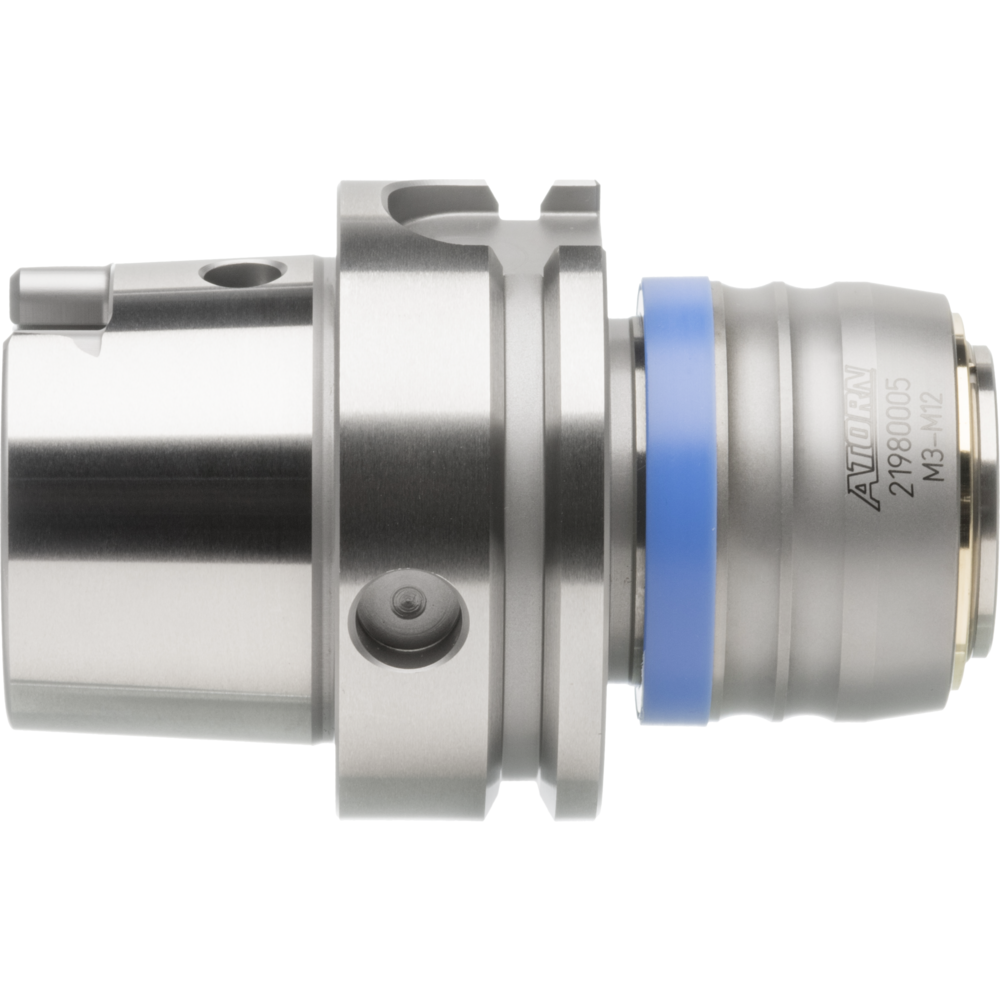

Thread cutting quick-change chuck (f. synchron. sp.) DIN69893 HSK-A63 M3-M12

Thread cutting quick-change chuck (f. synchron. sp.) DIN69893 HSK-A63 M3-M12
Thread cutting quick-change chuck (f. synchron. sp.) DIN69893 HSK-A63 M3-M12 Thread cutting quick-change chuck (f. synchron. sp.) DIN69893 HSK-A63 M3-M12
Price:
275,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Also available for machines with minimum-volume lubrication

Thread cutting quick-change chuck for synchronous spindles
  • Minimal length compensation thanks to damping element
  • Secure clamping in quick-release inserts for ER collets
  • Clamping screws to prevent the clamped tap from twisting
  • For use on drilling machines and machining centres with synchronous spindles

DIN 69893 type A (HSK-A)
  • Internal coolant supply
  • When machining with internal coolant supply, a coolant transfer pipe with art.no. 431011... should be used
  • Supplied without quick-release insert

Also available for machines with minimum-volume lubrication

Thread cutting quick-change chuck for synchronous spindles
  • Minimal length compensation thanks to damping element
  • Secure clamping in quick-release inserts for ER collets
  • Clamping screws to prevent the clamped tap from twisting
  • For use on drilling machines and machining centres with synchronous spindles

DIN 69893 type A (HSK-A)
  • Internal coolant supply
  • When machining with internal coolant supply, a coolant transfer pipe with art.no. 431011... should be used
  • Supplied without quick-release insert

Article no./ATORN no.
4420216316 / 21980005
Packaging unit
1
Catalogue page
KS-1247

Technical characteristics

A 64 mm
A 64 mm
Aussendurchmesser 43 mm
Collet type ER 16
Collet type ER 16
Coolant supply Internal axial
Coolant supply Internal axial
D 43 mm
D 43 mm
D1 20 mm
D1 20 mm
DIN 69893-1
DIN 69893-1
Einsatzgröße 1
Form A
Insert diameter 20 mm
Length compensation, pressure 0,2 mm
Length compensation, pressure 0,2 mm
Length compensation, tension 1 mm
Length compensation, tension 1 mm
Suitable for thread M3-M12
Suitable for thread M3-M12
Taper type HSK 63
Taper type HSK 63
Tool holding device HSK 63
Tool holding device HSK 63
Wuchtgüte G 2,5 bei 25000 1/min
