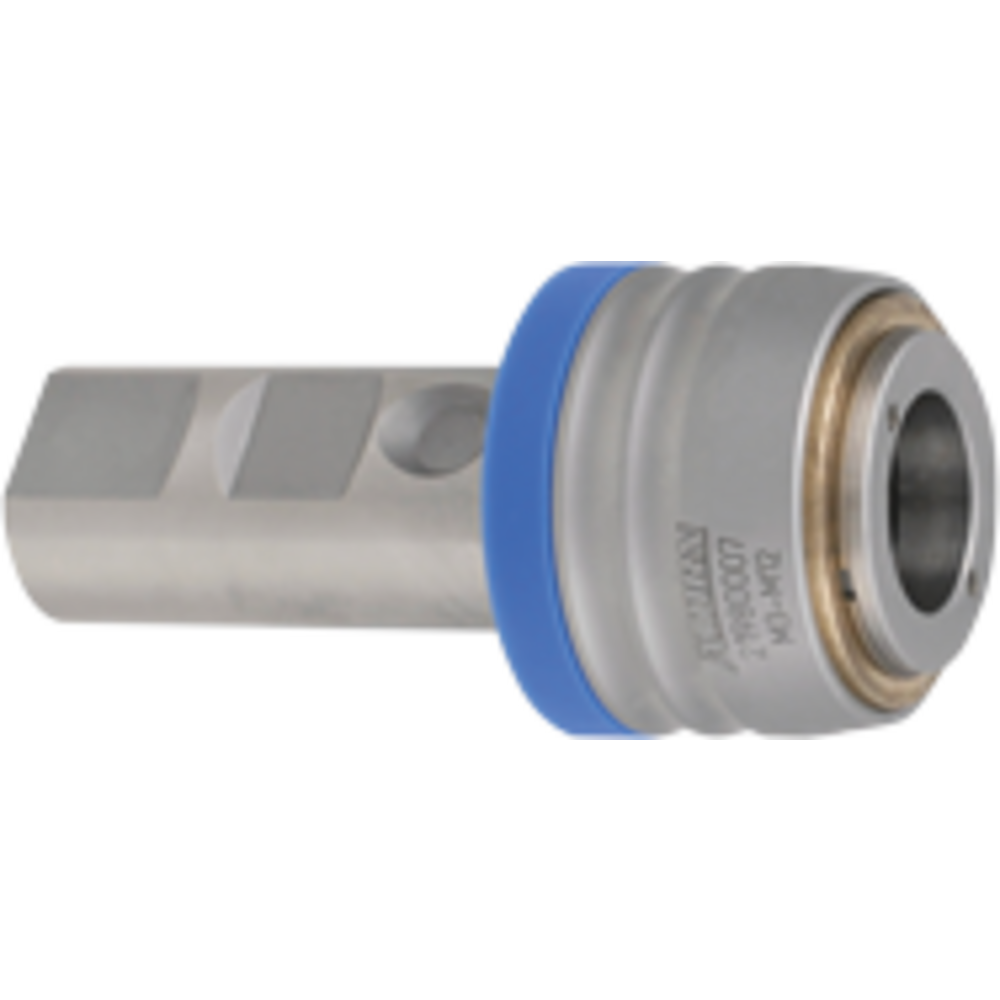

Thread cutting quick-change chuck (f. synchron. sp.) shank 25mm, M3-M12

Thread cutting quick-change chuck (f. synchron. sp.) shank 25mm, M3-M12
Thread cutting quick-change chuck (f. synchron. sp.) shank 25mm, M3-M12 Thread cutting quick-change chuck (f. synchron. sp.) shank 25mm, M3-M12
Price
204,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder
Also available for machines with minimum-volume lubrication

Thread cutting quick-change chuck for synchronous spindles
  • Minimal length compensation thanks to damping element
  • Secure clamping in quick-release inserts for ER collets
  • Clamping screws to prevent the clamped tap from twisting
  • For use on drilling machines and machining centres with synchronous spindles

Str. shank sim. to DIN 1835 B+E
  • Supplied without quick-release insert

Article no./ATORN no.
4420222516 / 21980007
Packaging unit
1
Catalogue page
KS-1248

Technical characteristics

A 34 mm
Aufnahmedurchmesser 25 mm
Aussendurchmesser 43 mm
Clamp in shank diameter 25 mm
Collet type ER 16
Coolant supply Internal axial
D 43 mm
D1 20 mm
Einsatzgröße 1
Insert diameter 20 mm
Length compensation, pressure 0,2 mm
Length compensation, tension 1 mm
Suitable for thread M3-M12
Wuchtgüte G 2,5 bei 25000 1/min
