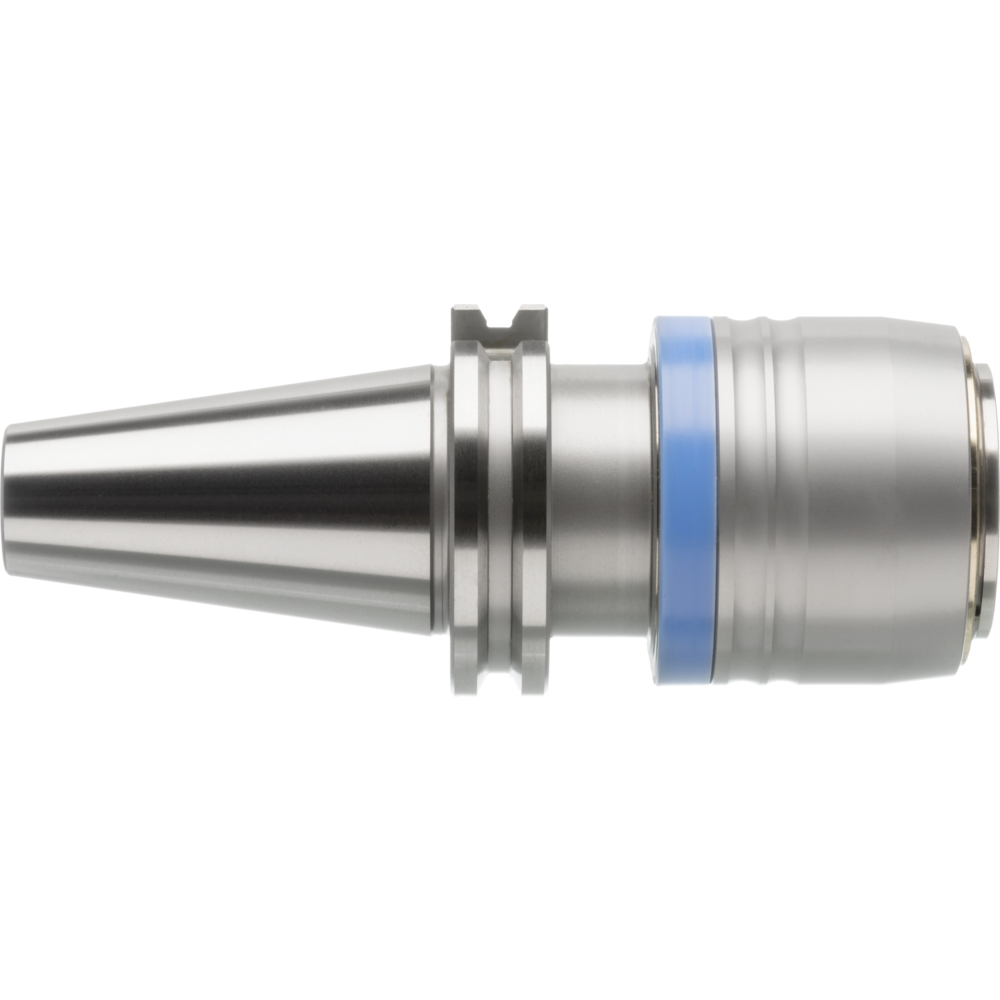

Thread cutting quick-change chuck (f. synchron. sp.) DIN69871AD SK40 M3-M12

Thread cutting quick-change chuck (f. synchron. sp.) DIN69871AD SK40 M3-M12
Thread cutting quick-change chuck (f. synchron. sp.) DIN69871AD SK40 M3-M12 Thread cutting quick-change chuck (f. synchron. sp.) DIN69871AD SK40 M3-M12
Price:
216,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Also available for machines with minimum-volume lubrication

Thread cutting quick-change chuck for synchronous spindles
  • Minimal length compensation thanks to damping element
  • Secure clamping in quick-release inserts for ER collets
  • Clamping screws to prevent the clamped tap from twisting
  • For use on drilling machines and machining centres with synchronous spindles

DIN ISO 7388-1 / DIN 69871 AD
  • Internal coolant supply
  • Supplied without quick-release insert

Also available for machines with minimum-volume lubrication

Thread cutting quick-change chuck for synchronous spindles
  • Minimal length compensation thanks to damping element
  • Secure clamping in quick-release inserts for ER collets
  • Clamping screws to prevent the clamped tap from twisting
  • For use on drilling machines and machining centres with synchronous spindles

DIN ISO 7388-1 / DIN 69871 AD
  • Internal coolant supply
  • Supplied without quick-release insert

Article no./ATORN no.
4420204016 / 21980001
Packaging unit
1
Catalogue page
KS-1247

Technical characteristics

A 53 mm
A 53 mm
Aussendurchmesser 43 mm
Collet type ER 16
Collet type ER 16
Coolant supply Internal axial
Coolant supply Internal axial
D 43 mm
D 43 mm
D1 20 mm
D1 20 mm
DIN 69871-1
Einsatzgröße 1
Form AD
Form AD
Insert diameter 20 mm
Length compensation, pressure 0,2 mm
Length compensation, pressure 0,2 mm
Length compensation, tension 1 mm
Length compensation, tension 1 mm
Standard constructional dimensions DIN 7388-1
Standard constructional dimensions DIN 7388-1
Suitable for thread M3-M12
Suitable for thread M3-M12
Taper type SK40
Taper type SK40
Wuchtgüte G 2,5 bei 25000 1/min
