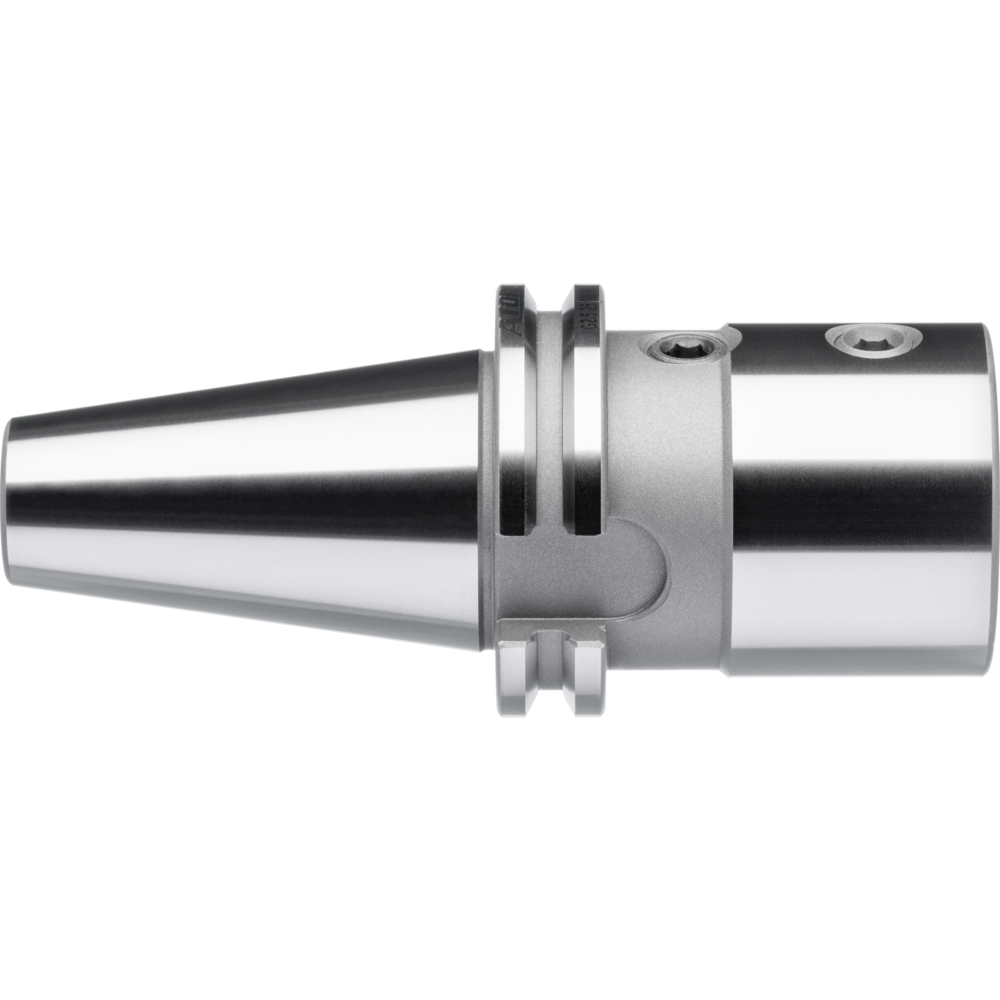

Tool holder for indexable insert drill DIN69871AD SK40, d=20mm A=65mm D=40mm

Tool holder for indexable insert drill DIN69871AD SK40, d=20mm A=65mm D=40mm
Tool holder for indexable insert drill DIN69871AD SK40, d=20mm A=65mm D=40mm Tool holder for indexable insert drill DIN69871AD SK40, d=20mm A=65mm D=40mm
Price:
75,40 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Tool holding fixture for indexable insert drill bits
  • Alloyed case-hardened steel, core tensile strength min. 950 N/mm2
  • Pre-balanced to G 2.5 / 25,000 rpm
  • Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. true running accuracy < 0.005 mm
  • Additional versions available on request

DIN ISO 7388-1 / DIN 69871 AD/AF
  • Internal coolant supply

Tool holding fixture for indexable insert drill bits
  • Alloyed case-hardened steel, core tensile strength min. 950 N/mm2
  • Pre-balanced to G 2.5 / 25,000 rpm
  • Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. true running accuracy < 0.005 mm
  • Additional versions available on request

DIN ISO 7388-1 / DIN 69871 AD/AF
  • Internal coolant supply

Article no./ATORN no.
4345404020 / 22661012
Packaging unit
1
Catalogue page
KS-1230

Technical characteristics

A 65 mm
A 65 mm
Aussendurchmesser 40 mm
D 40 mm
D 40 mm
D1 20 mm
D1 20 mm
DIN 69871-1
Einspanntiefe 56 mm
Form AD
Freilänge bis zum Bund 46 mm
ISO 7388-1
Taper type SK40
Taper type SK40
Werkzeugaufnahme SK 40
Wuchtgüte G 2,5 bei 25000 1/min
