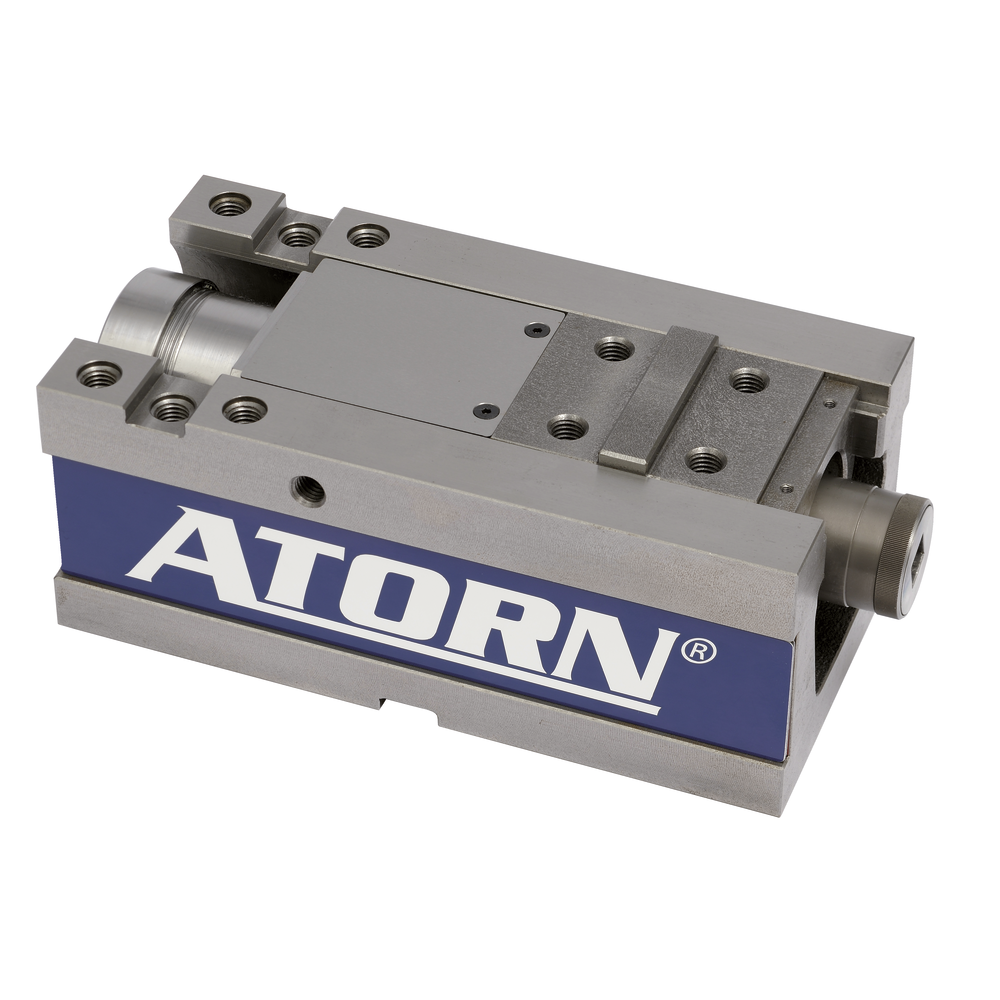

5-axis compact clamp (base body) incl. clamping claws

5-axis compact clamp (base body) incl. clamping claws
5-axis compact clamp (base body) incl. clamping claws 5-axis compact clamp (base body) incl. clamping claws 5-axis compact clamp (base body) incl. clamping claws 5-axis compact clamp (base body) incl. clamping claws
Price:
1.680,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
5-axis compact clamp
  • Body made from ductile iron, GJS 600
  • Guideways hardened and ground
  • Clamping force 40 kN at 110 Nm
  • Patented quick adjustment of the clamping width
  • Enclosed spindle
  • Secure holding forces due to re-tensioning spring package
  • Supplied without crank or torque wrench
  • Suitable torque wrench: article no. 702602 0004 (to be used without sockets)

Base body incl. clamping claws
5-axis compact clamp
  • Body made from ductile iron, GJS 600
  • Guideways hardened and ground
  • Clamping force 40 kN at 110 Nm
  • Patented quick adjustment of the clamping width
  • Enclosed spindle
  • Secure holding forces due to re-tensioning spring package
  • Supplied without crank or torque wrench
  • Suitable torque wrench: article no. 702602 0004 (to be used without sockets)

Base body incl. clamping claws
Article no./ATORN no.
4595000125 / 21880002
Packaging unit
1
Catalogue page
KS-1267

Technical characteristics

Clamp force 40 kN
Clamp force 40 kN
Length x width x height 250 x 126 x 100 mm
Length x width x height 250 x 126 x 100 mm
Weight 23 kg
Weight 23 kg
