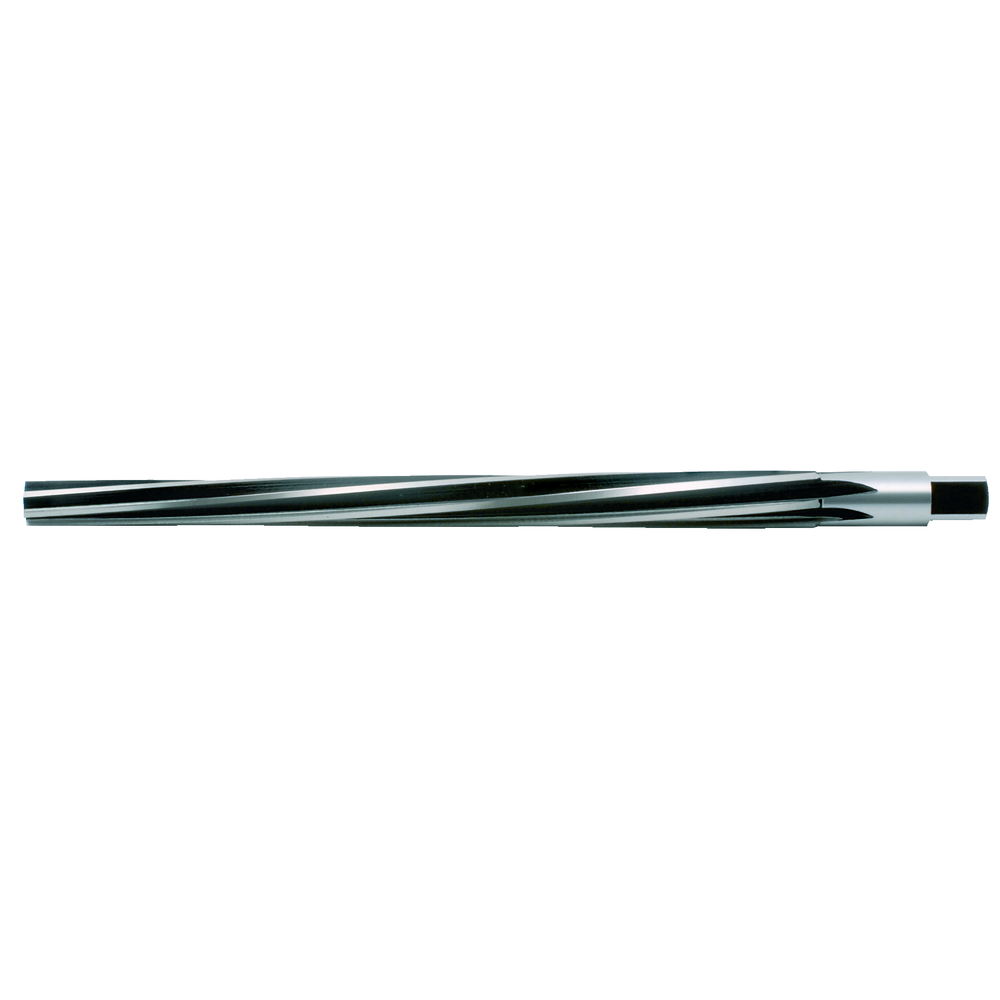

Hand taper reamer HSS DIN9B 1,5mm (steel/non-ferrous) 7-8° left-handed twist

Hand taper reamer HSS DIN9B 1,5mm (steel/non-ferrous) 7-8° left-handed twist
Hand taper reamer HSS DIN9B 1,5mm (steel/non-ferrous) 7-8° left-handed twist Hand taper reamer HSS DIN9B 1,5mm (steel/non-ferrous) 7-8° left-handed twist
Price:
46,80 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Hand taper reamers
  • 1:50 taper for taper pins
  • Type A, straight-fluted
  • Type B, spiral-fluted, 6° left-hand twist
  • Shank design: straight with square end
  • For taper pins in accordance with DIN EN 22339, DIN 258, DIN EN 28737 and DIN EN 28736
  • For output bores, we recommend conical pin-hole drill bit no. 101025....
  • Ø 13 mm and Ø 14 mm, non-DIN
  • * These dimensions are not included in the standard

Hand taper reamers
  • 1:50 taper for taper pins
  • Type A Straight-fluted (type B available on request)
  • Shank design: straight with square end
  • For taper pins according to DIN EN 22339, DIN 258, DIN EN 28737 and DIN EN 28736
  • For output bores, we recommend conical pin-hole drill no. 101025....
  • Ø 13 mm and Ø 14 mm, non-DIN
  • * These dimensions are not included in the standard

Article no./ATORN no.
1601450015 / 10042001
Packaging unit
1
Catalogue page

Technical characteristics

Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - no
Cutting data Cutting angle Information - no
Cutting material HSS
Cutting material HSS
D 1,50 mm
D 1,50 mm
D max. 2,14 mm
D max. 2,14 mm
D min. 1,40 mm
D min. 1,40 mm
DIN 9
DIN 9
L 57 mm
L 57 mm
L1 37 mm
L1 37 mm
Surface Uncoated
Surface Uncoated
Taper ratio 1:50
Taper ratio 1:50
Tool holding device HA parallel shank
Tool holding device HA parallel shank
Z 3 pc.
Z 3 pc.

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass long
brass long
brass short
brass short
bronze long
bronze long
bronze short
bronze short
cast iron GGG
cast iron GGG
Form B
Form B
plastic
plastic
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based ≥ 30 HRc
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys
titanium alloys

very suitable
suitable
