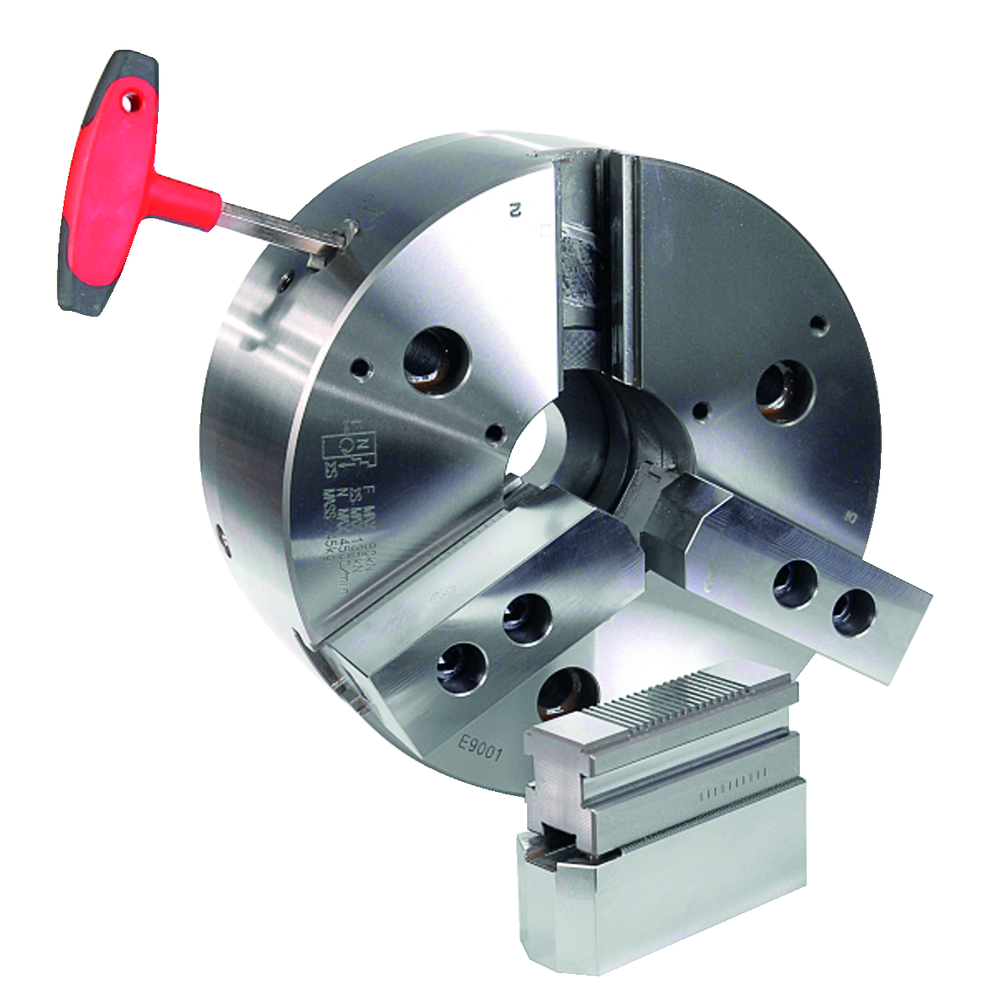

Dreibacken-Kraftspannfutter QJR-08, 210mm mit Backenschnellwechselsystem

Dreibacken-Kraftspannfutter QJR-08, 210mm mit Backenschnellwechselsystem
Dreibacken-Kraftspannfutter QJR-08, 210mm mit Backenschnellwechselsystem Dreibacken-Kraftspannfutter QJR-08, 210mm mit Backenschnellwechselsystem Dreibacken-Kraftspannfutter QJR-08, 210mm mit Backenschnellwechselsystem
Price:
4.409,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Power chuck with quick-change jaw system
  • Model QJR
  • Quick-change jaw system
  • All-steel design
  • Hardened and ground guides
  • High true-running accuracy
  • Centre mount in accordance with DIN 6353
  • B-200 and BB-200 series can be replaced without difficulty by the QJR series
  • Existing top jaws from the B-200 and BB-200 series can be used
  • Supplied without base jaws, top jaws or flange
  • Drawbar nut with no thread
  • Threaded drawbar nuts available on request

Power chucks
Power chuck with quick-change jaw system
  • Model QJR
  • Quick-change jaw system
  • All-steel design
  • Hardened and ground guides
  • High true-running accuracy
  • Centre mount in accordance with DIN 6353
  • B-200 and BB-200 series can be replaced without difficulty by the QJR series
  • Existing top jaws from the B-200 and BB-200 series can be used
  • Supplied without base jaws, top jaws or flange
  • Drawbar nut with no thread
  • Threaded drawbar nuts available on request

Power chucks
Article no./ATORN no.
4050200008
Vendor Article no.
QJR08-00
Packaging unit
1
Catalogue page

Technical characteristics

B 35 mm
B 35 mm
Chuck Ø 215 mm
Chuck Ø 215 mm
Clamping range 23 - 210 mm
Clamping range 23 - 210 mm
D H6 170 mm
D H6 170 mm
D1 133,4 mm
D1 133,4 mm
D2 66 mm
D2 66 mm
Jaw lift distance 7,4 mm
Jaw lift distance 7,4 mm
L 98 mm
L 98 mm
max. actuating force 45 kN
max. actuating force 45 kN
max. clamp force 100 kN
max. clamp force 100 kN
max. speed 5000 r/min
max. speed 5000 r/min
model QJR08
model QJR08
Piston stroke 16 mm
Piston stroke 16 mm
Standard constructional dimensions DIN DIN 6353
Standard constructional dimensions DIN DIN 6353
U max. M75 x 2
U max. M75 x 2
