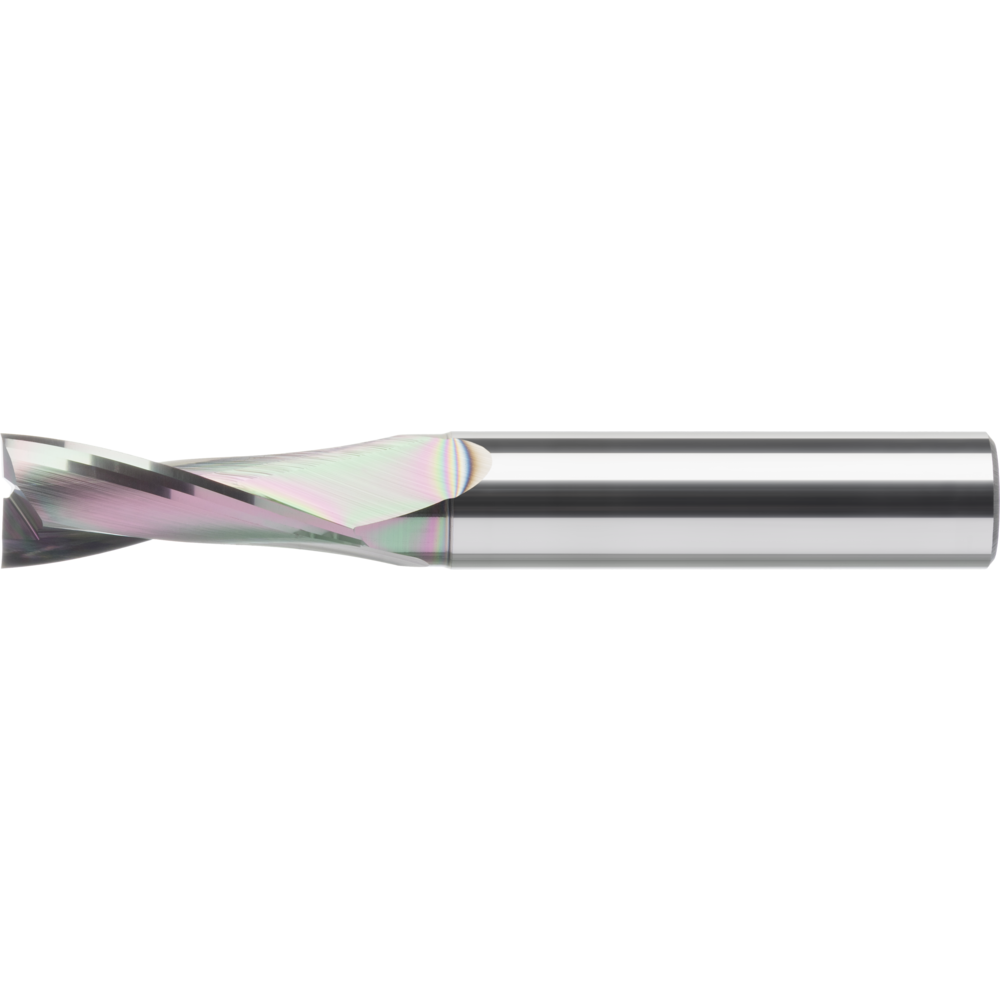

Alu-drill groove milling cutter SC 20° 3 mm L2=14 mm, Z=2, HA, TAC

Alu-drill groove milling cutter SC 20° 3 mm L2=14 mm, Z=2, HA, TAC
Alu-drill groove milling cutter SC 20° 3 mm L2=14 mm, Z=2, HA, TAC Alu-drill groove milling cutter SC 20° 3 mm L2=14 mm, Z=2, HA, TAC
Price:
66,50 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Drill groove milling cutter 20° Ultra-N PRO
  • With clearance
  • Spiral angle 20°
  • For non-ferrous materials
  • Cutting material: solid carbide with DLC-sp3 coating
  • With polish grinding in the chip chambers
  • Large chip space for unhindered chip removal

Article no./ATORN no.
2490060030 / 12040721
Packaging unit
1
Catalogue page
KS-0474
Cutting values
SW-0765

Technical characteristics

Application direction milling Lining, ramping and drilling
Center cutting Yes
Coating Ta-C
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3 mm
D1 6 mm
D3 2,9 mm
Durchmesser max. 20 mm
Durchmesser min. 3 mm
Durchmesser min./max. 3-20 mm
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
Feed for grooving fz aluminium ≥ 8 % Si 0,008 mm/tooth
Feed for side milling fz aluminium ≥ 8 % Si 0,01 mm/tooth
fitness hartl total 3
Form Corner
Freistellungslänge 14 mm
fz ALU 0,042 mm
Geeignet für Werkstoffgruppe H 3
Geeignet für Werkstoffgruppe K 3
Geeignet für Werkstoffgruppe M 3
Geeignet für Werkstoffgruppe N 1
Geeignet für Werkstoffgruppe P 3
Geeignet für Werkstoffgruppe S 3
L 50 mm
L1 11 mm
L2 14 mm
Oberfläche ULTRA N PRO
Overall length Normal
Rake angle 18 °
Tolerance of cutting edge diameter h9
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Twist angle 20°
Type W
Z 2 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
plastic

very suitable
suitable
