Alu-torus milling cutter SC 43°/47° 6x0.5 mm L2=31 mm, Z=3 HA, TAC

Alu-torus milling cutter SC 43°/47° 6x0.5 mm L2=31 mm, Z=3 HA, TAC
Alu-torus milling cutter SC 43°/47° 6x0.5 mm L2=31 mm, Z=3 HA, TAC Alu-torus milling cutter SC 43°/47° 6x0.5 mm L2=31 mm, Z=3 HA, TAC
Price:
74,20 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder

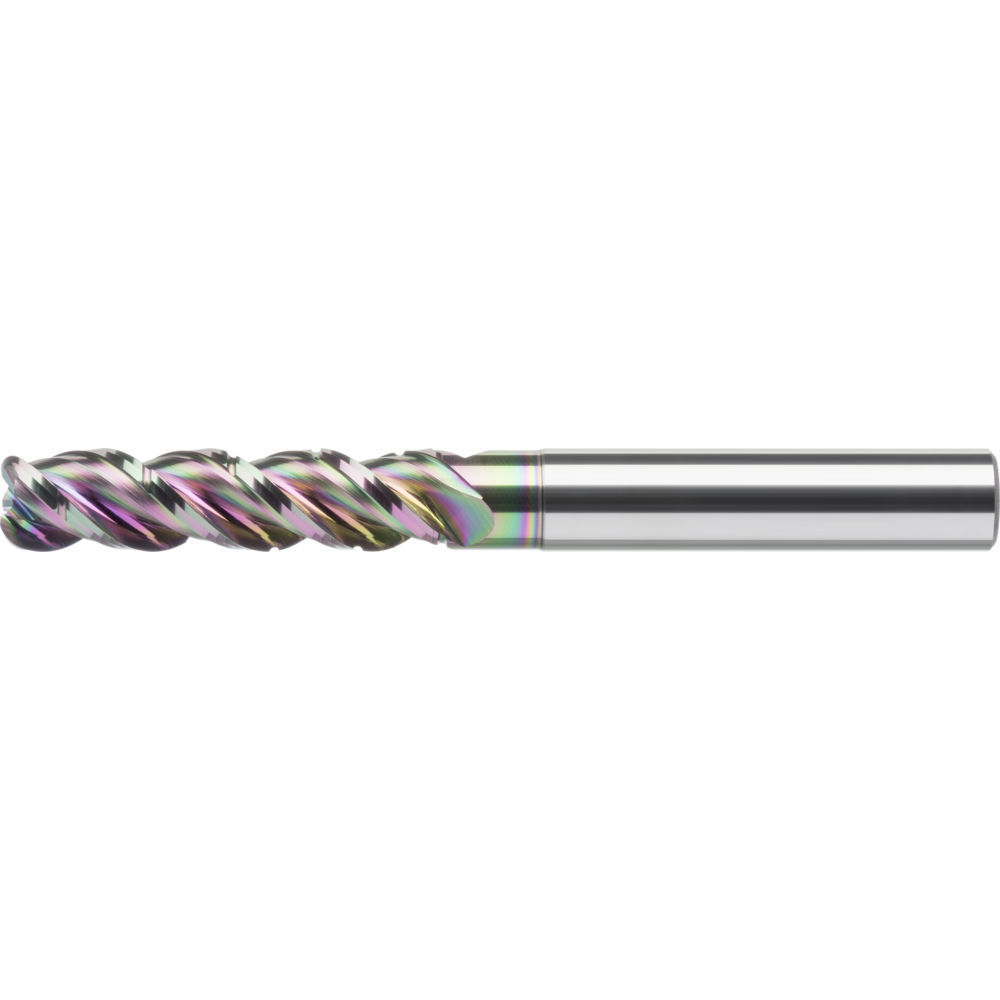

Torus milling cutter Ultra-N PRO
  • with clearance
  • 3 cutting edges
  • unequal spiral angle 43°/47°
  • for non-ferrous materials
  • Cutting material: solid carbide with DLC-sp3 coating
  • with polish grinding in the chip chambers
  • large chip space for unhindered chip removal
  • chip separator

Article no./ATORN no.
2490140605 / 12040812
Packaging unit
1
Catalogue page
KS-0479
Cutting values
SW-0767

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Center cutting Yes
Coating Ta-C
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 6 mm
D1 6 mm
D3 5,8 mm
Durchmesser max. 20 mm
Durchmesser min. 6 mm
Durchmesser min./max. 6-20 mm
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
Feed for side milling fz aluminium < 8 % Si 0,032 mm/tooth
fitness hartl total 3
Form Torus
Freistellungslänge 31 mm
fz ALU 0,04 mm
Geeignet für Werkstoffgruppe H 3
Geeignet für Werkstoffgruppe K 3
Geeignet für Werkstoffgruppe M 3
Geeignet für Werkstoffgruppe N 1
Geeignet für Werkstoffgruppe P 3
Geeignet für Werkstoffgruppe S 3
Kantenradius 0,5 mm
L 71 mm
L1 25 mm
L2 31 mm
R 0,5 mm
Rake angle 13 °
Surface ULTRA N PRO
Tolerance of cutting edge diameter h9
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Twist angle 43° | 47°
Type W
Z 3 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
plastic

very suitable
suitable
