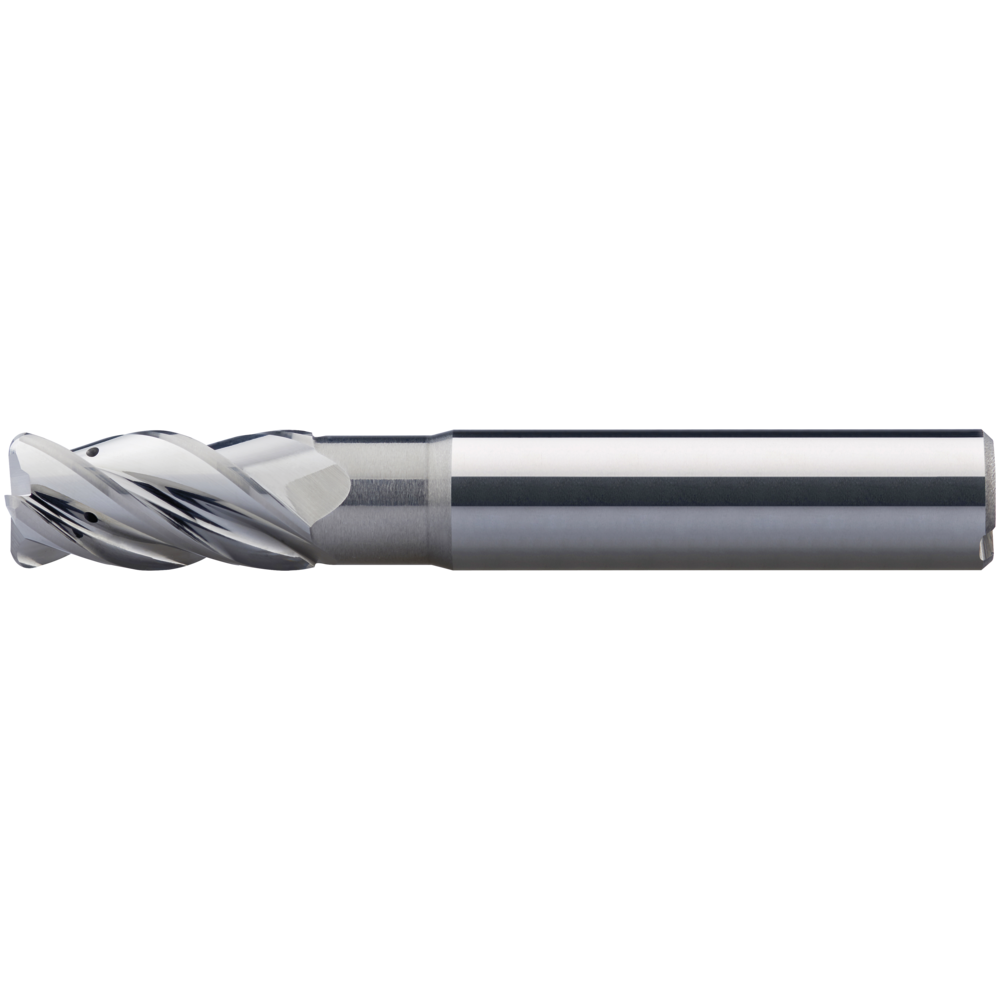

Alu-torus cutter SC 38/41° 10x2.5 mm, L2=30 mm Z=4 long, HA, polished, IC

Alu-torus cutter SC 38/41° 10x2.5 mm, L2=30 mm Z=4 long, HA, polished, IC
Alu-torus cutter SC 38/41° 10x2.5 mm, L2=30 mm Z=4 long, HA, polished, IC Alu-torus cutter SC 38/41° 10x2.5 mm, L2=30 mm Z=4 long, HA, polished, IC Alu-torus cutter SC 38/41° 10x2.5 mm, L2=30 mm Z=4 long, HA, polished, IC
Price
158,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Torus milling cutter Ultra-N
  • With internal coolant supply
  • Irregular helix angle and unequal pitch for low-vibration milling
  • With clearance
  • With defined cutting edge rounding
  • Cutting material: fine grain solid carbide

Internal cooling
Article no./ATORN no.
2496091025 / 11869210
Packaging unit
1
Catalogue page

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling HPC
Coolant supply Internal radial
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 10,0 mm
D1 10,0 mm
D3 9,2 mm
Feed fz aluminium < 8 % Si 0,084 mm/tooth
Feed fz aluminium < 8 % Si 0,116 mm/tooth
L 72 mm
L1 22 mm
L2 30 mm
R 2,5 mm
Tool holding device HA parallel shank
Tooth pitch Unequal
Twist angle 38°-41° (rechts)
Type NH
Z 4 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short

very suitable
suitable
Cutting values Download
