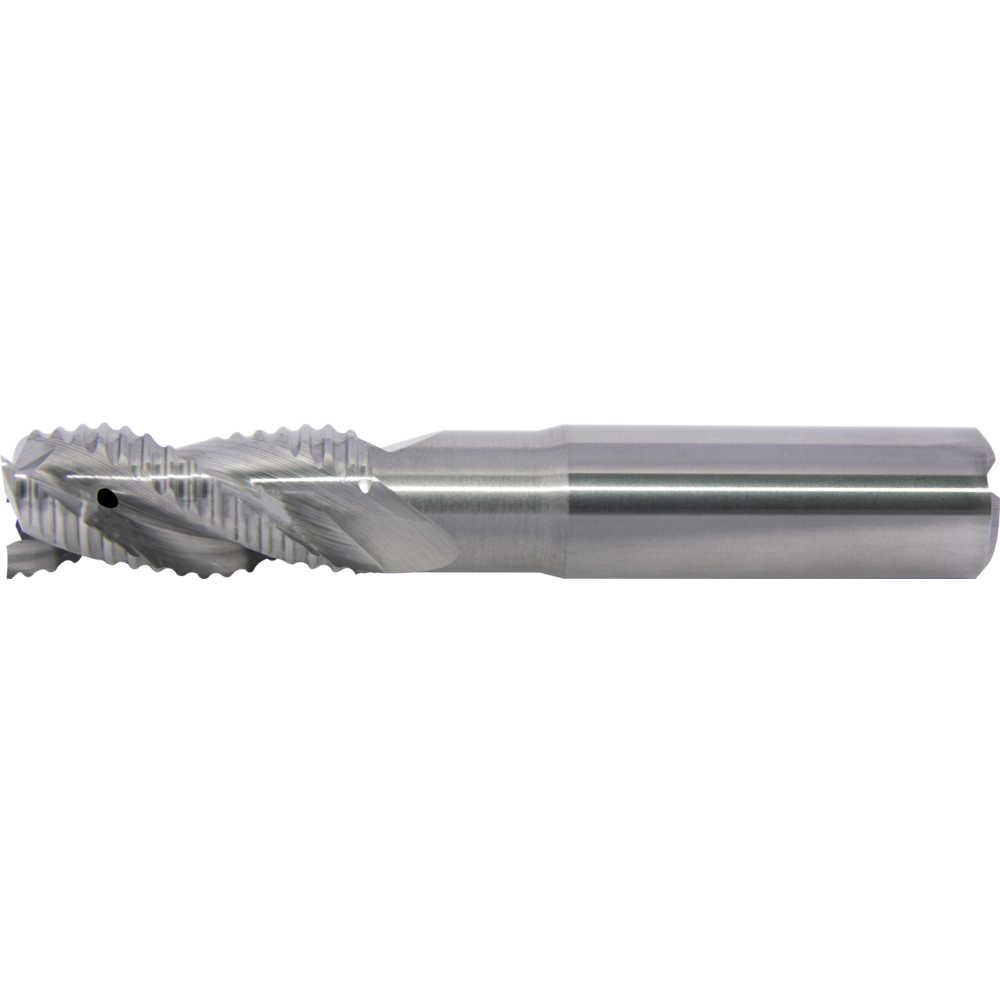

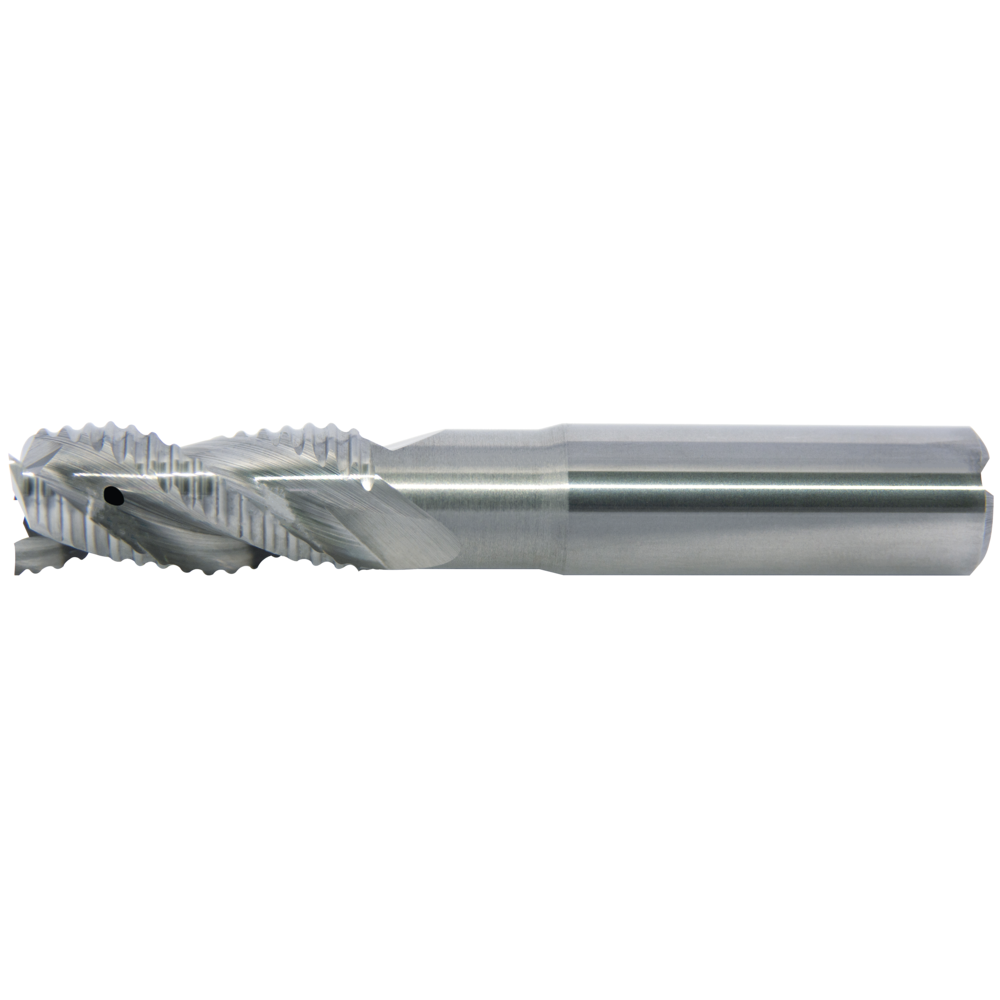

Alu-roughing cutter SC 40° 10 mm L2=60 mm R=0.1 mm Z=3 long, HA, IC

Alu-roughing cutter SC 40° 10 mm L2=60 mm R=0.1 mm Z=3 long, HA, IC
Alu-roughing cutter SC 40° 10 mm L2=60 mm R=0.1 mm Z=3 long, HA, IC Alu-roughing cutter SC 40° 10 mm L2=60 mm R=0.1 mm Z=3 long, HA, IC Alu-roughing cutter SC 40° 10 mm L2=60 mm R=0.1 mm Z=3 long, HA, IC
Price
122,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Roughing cutter Ultra-N
  • With internal coolant supply
  • Unequal pitch for vibration-free milling
  • With clearance
  • High material removal rate
  • Cutting material: fine grain solid carbide

Article no./ATORN no.
2496031000 / 11869189
Packaging unit
1
Catalogue page

Technical characteristics

Application direction milling Lining, ramping and drilling
Coolant supply Internal radial
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 10,0 mm
D1 10,0 mm
D3 9,2 mm
Feed fz aluminium < 8 % Si 0,071 mm/tooth
Feed fz aluminium < 8 % Si 0,123 mm/tooth
L 75 mm
L1 22 mm
L2 35 mm
R 0,1 mm
Tolerance of cutting edge diameter e8
Tool holding device HA parallel shank
Tooth pitch Unequal
Twist angle 40°
Type NF
Z 3 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short

very suitable
suitable
Cutting values Download
