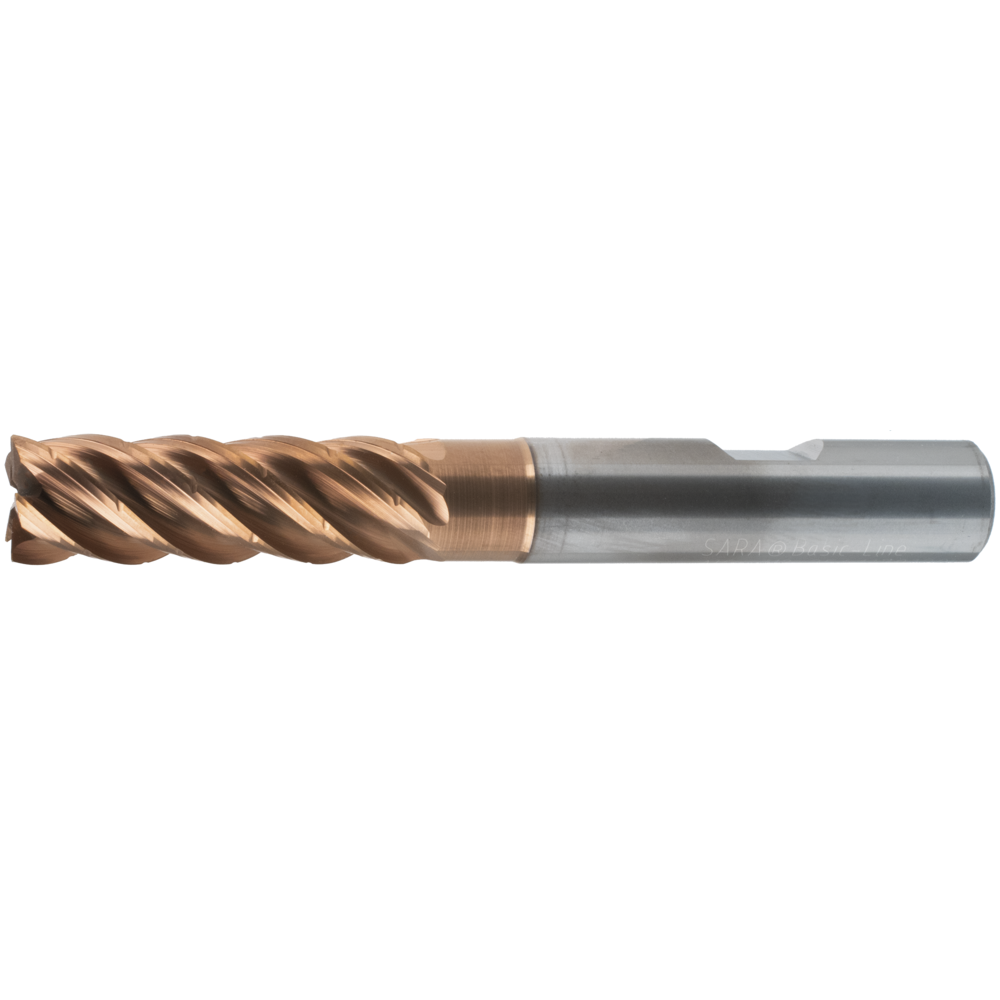

End mil. cutter SC TVC (UNI) 41°/42° uneq. WN 6 mm Z=5 HB, ed. cham., AlCr-b.

End mil. cutter SC TVC (UNI) 41°/42° uneq. WN 6 mm Z=5 HB, ed. cham., AlCr-b.
End mil. cutter SC TVC (UNI) 41°/42° uneq. WN 6 mm Z=5 HB, ed. cham., AlCr-b. End mil. cutter SC TVC (UNI) 41°/42° uneq. WN 6 mm Z=5 HB, ed. cham., AlCr-b.
Price
37,80 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Trochoidal milling cutter Basic Line
  • With clearance
  • Milling cutter designed for TVC use
  • Reinforced core
  • With chip breaker
  • Cutting material: superfine grain solid carbide
  • Irregular tooth pitch for a strong head centre
  • ae steel max. 20 %
  • ae stainless steel max. 15 %
  • fz based on 0.1xD

Article no./ATORN no.
2541170060
Packaging unit
1
Catalogue page
KS-0461
Cutting values
SW-0746

Technical characteristics

Application direction milling Lining
Calculation type 04 05 C - ae_ap - Zirkularfräsen - Schaftfräser HSC
Coating AlCrN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 6,0 mm
D1 6,0 mm
D3 5,7 mm
F x 45° 0,12 mm
Feed fz steel < 1000 N/mm² 0,03 mm/tooth
Feed fz superalloys Fe/NiCo based < 30 HRC 0,03 mm/tooth
L 62 mm
L1 18 mm
L2 24 mm
Processing strategy Shoulder Milling
Tolerance of cutting edge diameter e8
Tolerance of shank diameter h5
Tool holding device HB parallel shank
Twist angle 42°
Z 5 pc.
Φ for titanium alloys 17 °

Usage characteristics

hardened steel < 60 HRc
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
titanium alloys

very suitable
suitable
