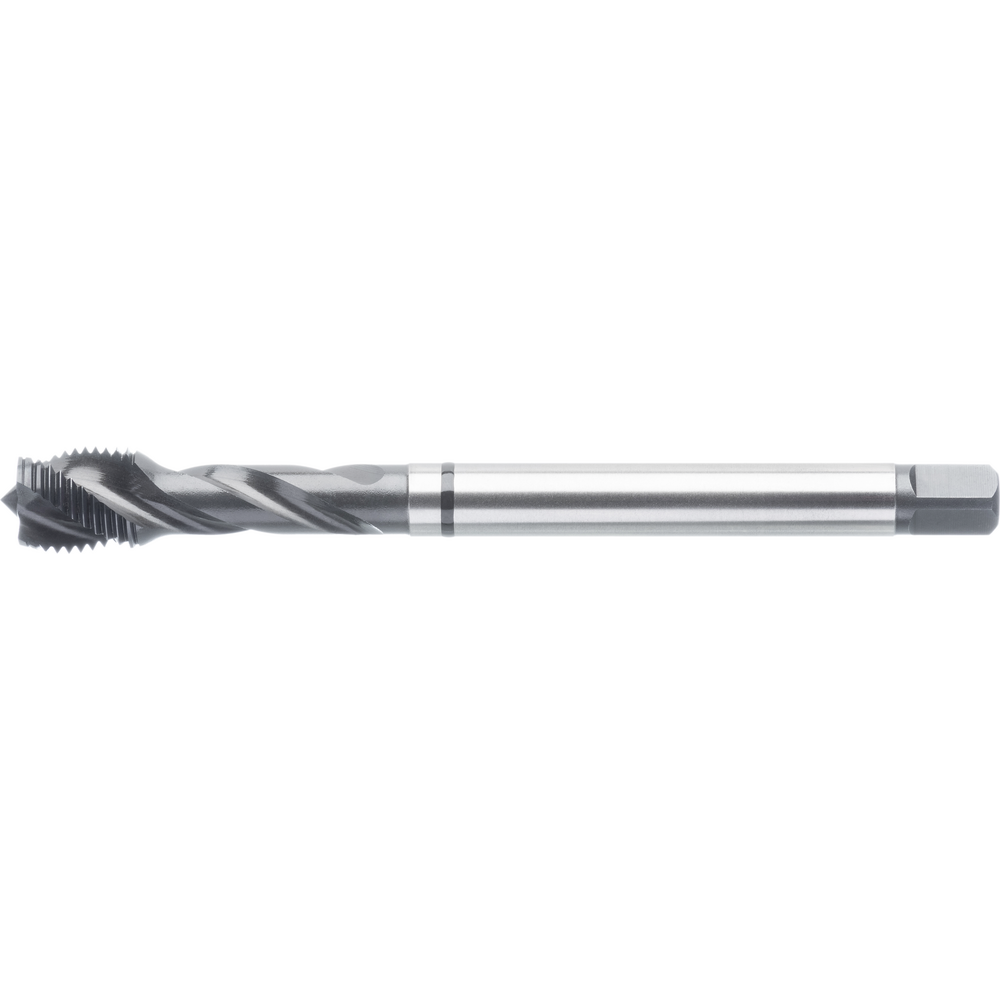

Machine tap HSS-E DIN5156C 40° G1/2 inch blind-hole (universal) vap.

Machine tap HSS-E DIN5156C 40° G1/2 inch blind-hole (universal) vap.
Machine tap HSS-E DIN5156C 40° G1/2 inch blind-hole (universal) vap. Machine tap HSS-E DIN5156C 40° G1/2 inch blind-hole (universal) vap.
Price:
66,90 €
(117,00 € catalogue price / 43% saved)
valid until: 30.06.2024
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Universal machine taps
  • Whitworth pipe thread, 55°
  • 40° spiral-fluted
  • Form C, 2-3 thread chamfer
  • Cutting material: HSS-E, vapour-treated
  • For blind-hole threads

Universal machine taps
  • Whitworth pipe thread, 55°
  • 40° spiral-fluted
  • Form C, 2-3 thread chamfer
  • Cutting material: HSS-E, vapour-treated
  • For blind-hole threads

Article no./ATORN no.
1347700012 / 11290962
Packaging unit
1
Catalogue page
KS-0273
Cutting values
SW-0398

Technical characteristics

C 12 mm
C 12 mm
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D G 1/2"
D G 1/2"
D1 16 mm
D1 16 mm
DIN 5156
DIN 5156
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 3
Farbringsystem UNI
fitness hartl total 3
Form/Chamfer C
Form/Chamfer C
L 125 mm
L 125 mm
L1 25 mm
L1 25 mm
Max. thread depth 2,5xD
Max. thread depth 2,5xD
Nenndurchmesser Zoll 1/2 in
Passend für Gewinde G 1/8-G 1 1/4 Zoll
Pitch 14
Pitch 14
Surface Vaporised
Surface Vaporised
Tapping hole Ø 19 mm
Tapping hole Ø 19 mm
Thread G
Thread G
Thread angle 55 °
Thread angle 55 °
Thread type x nominal diameter in inches G 1/2 in
Threaded hole type Stud hole
Threaded hole type Stud hole
Tolerance of shank diameter h9
Tolerance of shank diameter h9
Toleranz Gewindebohrer ISO 2 (6H)
Toleranz Schaftvierkant h12
Twist angle 40°
Twist angle 40°
Typ UNI 40 Control

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
brass long
brass long
brass short
brass short
bronze long
bronze long
cast iron GGG
cast iron GGG
plastic
plastic
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
