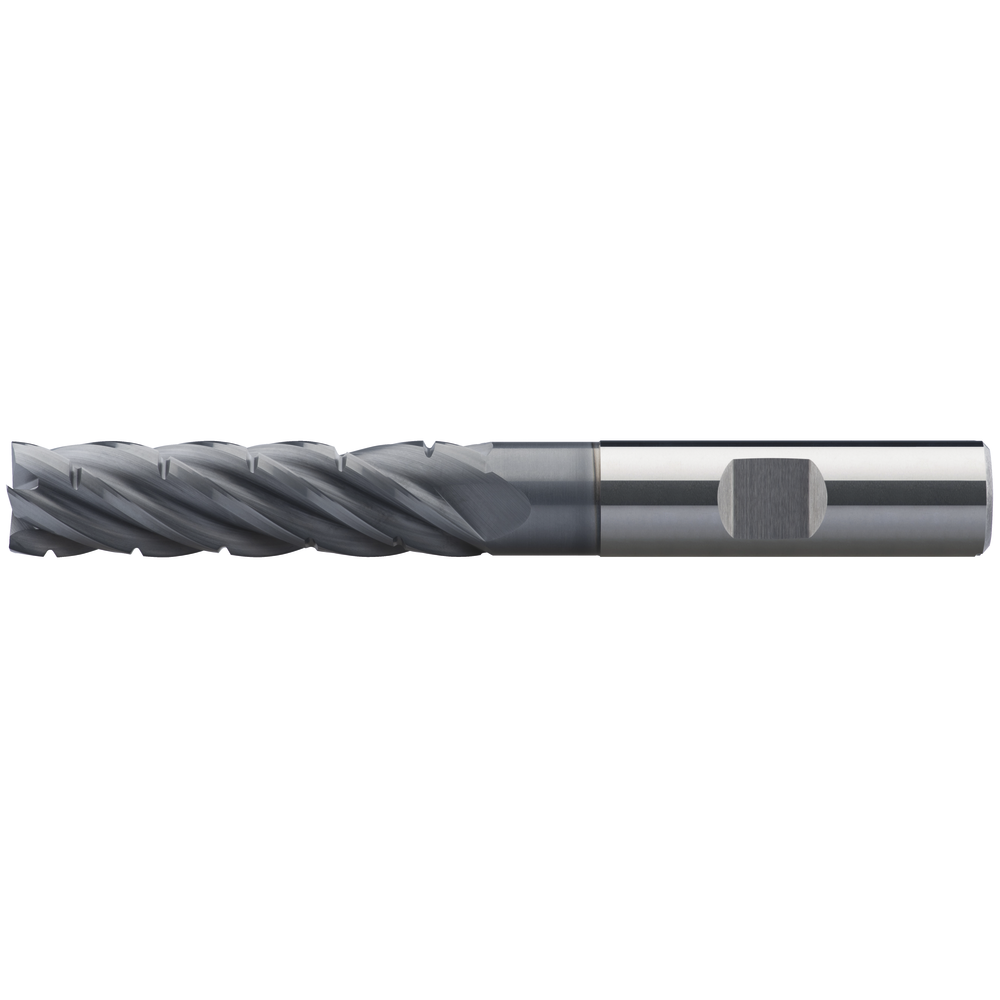

End milling cutter SC TVC 35°/36°/37° 6 mm Z=5 HB, IC, long, NiTiCo

End milling cutter SC TVC 35°/36°/37° 6 mm Z=5 HB, IC, long, NiTiCo
End milling cutter SC TVC 35°/36°/37° 6 mm Z=5 HB, IC, long, NiTiCo End milling cutter SC TVC 35°/36°/37° 6 mm Z=5 HB, IC, long, NiTiCo End milling cutter SC TVC 35°/36°/37° 6 mm Z=5 HB, IC, long, NiTiCo
Special offer:
43,00 €
(107,50 € catalogue price / 60% saved)
prices excl. vat plus shipping costs

Stock status
Only 5 pieces left!
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Trochoidal

End milling cutter Trochoidal 2.5 x D / 3.5 x D
  • With clearance
  • Milling cutter designed for TVC use
  • Reinforced core
  • With chip breaker
  • Cutting material: superfine grain solid carbide
  • With internal coolant supply

3.5 x D
Article no./ATORN no.
2542360060
Vendor Article no.
K67 0600 075
Packaging unit
1
Catalogue page

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling TVC
Coating AlCrN
Coolant supply Internal
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 6,0 mm
D1 6 mm
D3 5,5 mm
L 75 mm
L1 26 mm
L2 32 mm
R 0,10 mm
Tolerance of cutting edge diameter h8
Tolerance of shank diameter h6
Tool holding device HB parallel shank
Twist angle 35° | 38°
Z 5 pc.

Usage characteristics

cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
