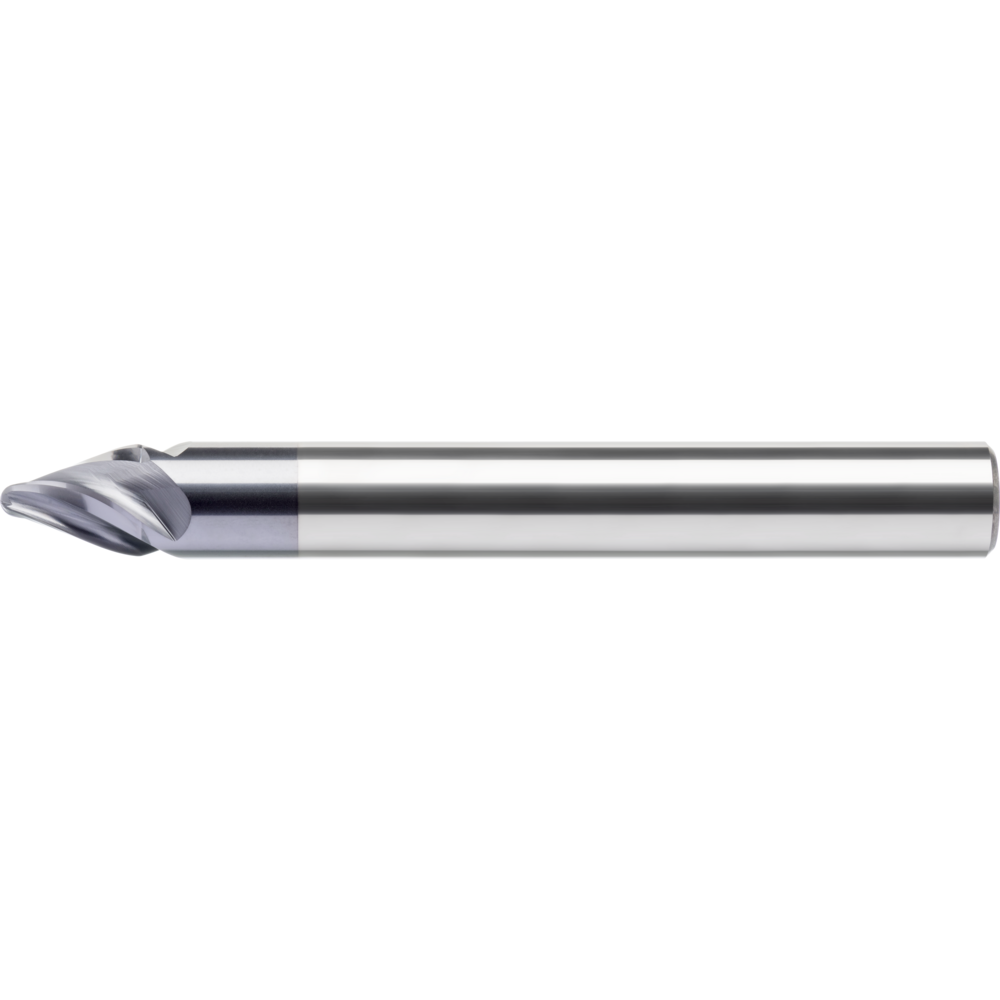

Circle segment milling cutter SC Ø2.0x10x75 mm, R1/300 Z4 conical AlTiN

Circle segment milling cutter SC Ø2.0x10x75 mm, R1/300 Z4 conical AlTiN
Circle segment milling cutter SC Ø2.0x10x75 mm, R1/300 Z4 conical AlTiN Circle segment milling cutter SC Ø2.0x10x75 mm, R1/300 Z4 conical AlTiN
Price:
185,50 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Circle segment milling cutter
  • Reduction of workpiece costs and considerably shorter manufacturing times based on the significant increase in the line spacing ae
  • New manufacturing possibilities
    - Undercuts
    - Semi-finishing and finishing of tight contours
    - Variable setting angle possible
    - Machining of tight inner radii
    - Freeform surfaces
  • Improved surface finish
  • Increased tool life

Conical
Article no./ATORN no.
2541731820 / 12040849
Packaging unit
1
Catalogue page
KS-0547
Cutting values
SW-0781

Technical characteristics

Application direction milling Lining, ramping and drilling
Application milling MSC
Center cutting Yes
Coating TiAlN
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 2 mm
D1 8 mm
Design TiAlN
Durchmesser max. 8 mm
Durchmesser min. 2 mm
Durchmesser min./max. 2-8 mm
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
Feed for side milling fz steel < 1000 mm² 0,048 mm/tooth
fitness hartl total 3
Form Torus
fz Stahl 1000 0,048 mm
Geeignet für Werkstoffgruppe H 1
Geeignet für Werkstoffgruppe K 1
Geeignet für Werkstoffgruppe M 1
Geeignet für Werkstoffgruppe N 1
Geeignet für Werkstoffgruppe P 1
Geeignet für Werkstoffgruppe S 3
L 75 mm
L1 10 mm
Overall length Normal
R 1 mm
R1 300 mm
R2 1 mm
Rake angle 15 °
Setting angle 18
Surface ULTRA
Tolerance of cutting edge diameter +/-0,01
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Twist angle 15°
Type N
Z 4 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass long
brass short
bronze long
bronze short
cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
plastic
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
