Roughness meter easyRoughness

Roughness meter easyRoughness
Roughness meter easyRoughness
Price:
8.050,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder

Add service

*
*

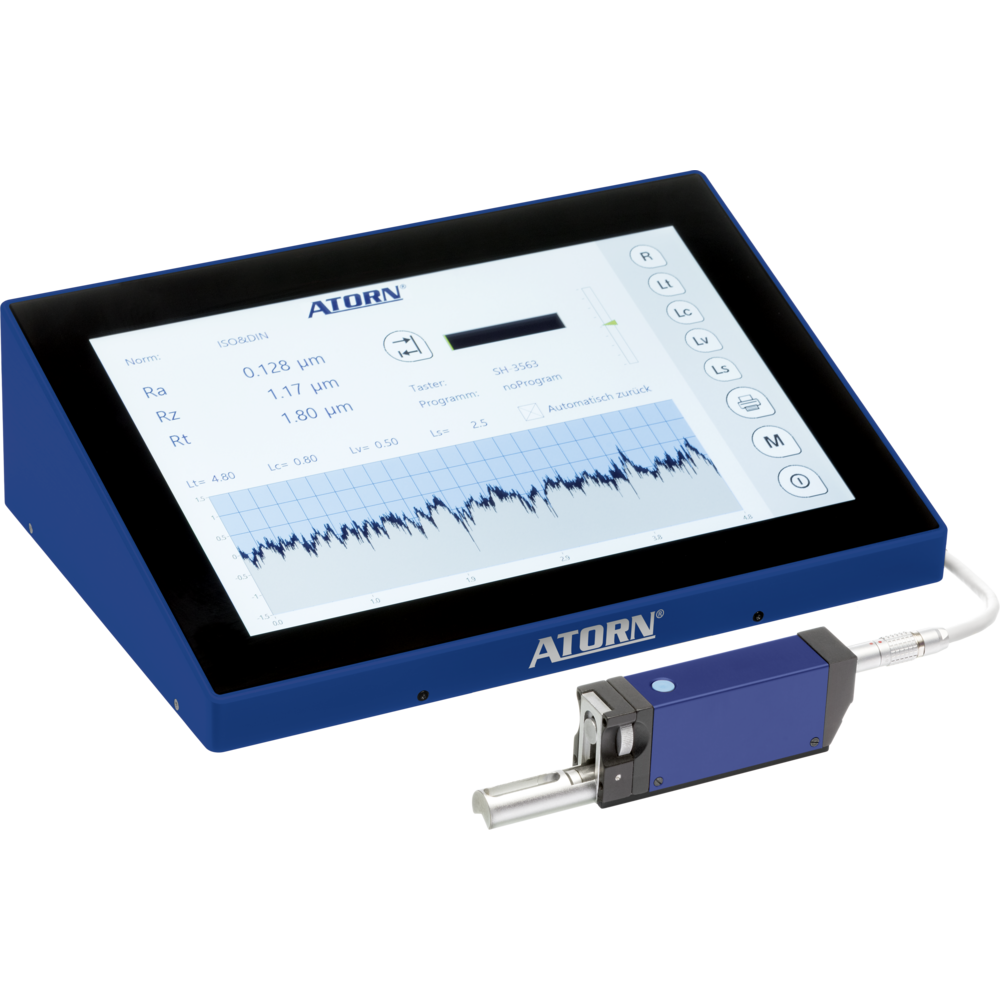

Surface roughness tester easyRoughness
  • Highly accurate roughness meter for workshop and laboratory use
  • Compatible with skids and free probes
  • Wide range of special measuring probes
  • Measuring probes can be extended up to 500 mm
  • Automatic calibration
  • Measurement lengths configurable from 0.5 to 15 mm
  • Configurable measuring speeds
  • Calibration of up to 8 measuring probes
  • Storage of measurement conditions with images
  • Configurable languages: German, English, French, Italian, Spanish, Polish, Chinese
  • Technical data
    Measured values:
    DIN/ISO: Ra, Rz (DIN), Rmax, R3z, Rt, Rq (RMS), Rk, Rq, Rv, Rpk, Rvk, MR1, MR2, Rpc, C1, C2, contact ratio Rmr, C0, Cz, V0 Rdg, RL0
    JIS: Ra (Jis), Rz (JIS)
    ISO 12085: R, AR, Rx
    Measurement ranges: Ra, Rq 0 - 20.00 µm Rest 0 - 350 µm
    Measurement range in Z: approx. 450 µm
    Contact point: Diamond tip 5 µm 90° (standard) or 2 µm 60° (optional)
    Measuring force diamond: <, 0.5 mN
    Probe system: analogue hall effect technology with high-linear output
  • Supplied with standard probe SKT/5, standard roughness 3.0 µm, boxed

Surface roughness tester easyRoughness
  • Highly accurate roughness meter for workshop and laboratory use
  • Compatible with skids and free probes
  • Wide range of special measuring probes
  • Measuring probes can be extended up to 500 mm
  • Automatic calibration
  • Measurement lengths configurable from 0.5 to 15 mm
  • Configurable measuring speeds
  • Calibration of up to 8 measuring probes
  • Storage of measurement conditions with images
  • Configurable languages: German, English, French, Italian, Spanish, Polish, Chinese
  • Technical data
    Measured values:
    DIN/ISO: Ra, Rz (DIN), Rmax, R3z, Rt, Rq (RMS), Rk, Rq, Rv, Rpk, Rvk, MR1, MR2, Rpc, C1, C2, contact ratio Rmr, C0, Cz, V0 Rdg, RL0
    JIS: Ra (Jis), Rz (JIS)
    ISO 12085: R, AR, Rx
    Measurement ranges: Ra, Rq 0 - 20.00 µm Rest 0 - 350 µm
    Measurement range in Z: approx. 450 µm
    Contact point: Diamond tip 5 µm 90° (standard) or 2 µm 60° (optional)
    Measuring force diamond: <, 0.5 mN
    Probe system: analogue hall effect technology with high-linear output
  • Supplied with standard probe SKT/5, standard roughness 3.0 µm, boxed

Article no./ATORN no.
5705320001 / 32650001
Packaging unit
1
Catalogue page
KS-1498

Technical characteristics

Auflösung Rauheit 0,001 µm | 0,01 µm
Breite 170 mm
Breite Vorschubeinheit 33 mm
Datenübertragungsart USB
Designation Surface roughness tester easyRoughness
Designation Surface roughness tester easyRoughness
Geräteabmessung 250 x 170 x 65 mm
Grenzwellenlänge 0,08 mm | 0,25 mm | 0,8 mm | 2,5 mm
Höhe 65 mm
Höhe Vorschubeinheit 20 mm
Included in delivery Sturdy box
Included in delivery Sturdy box
Länge 250 mm
Länge Vorschubeinheit 136 mm
Messbereich Rauheit 350 µm | 20 µm
Messkraft 0,5 mN
Rauheitskenngrößen RA | RZ | Rmax | R3Z | Rt | Rq | RMS | Rk | Rp | Rv | Rpk |
Tastgeschwindigkeit Rauheit 0,25 mm/s | 0,5 mm/s | 1 mm/s
Taststrecke max. 15 mm
Taststrecke min. 0,5 mm
Taststrecke min./max. 0,5-15 mm
