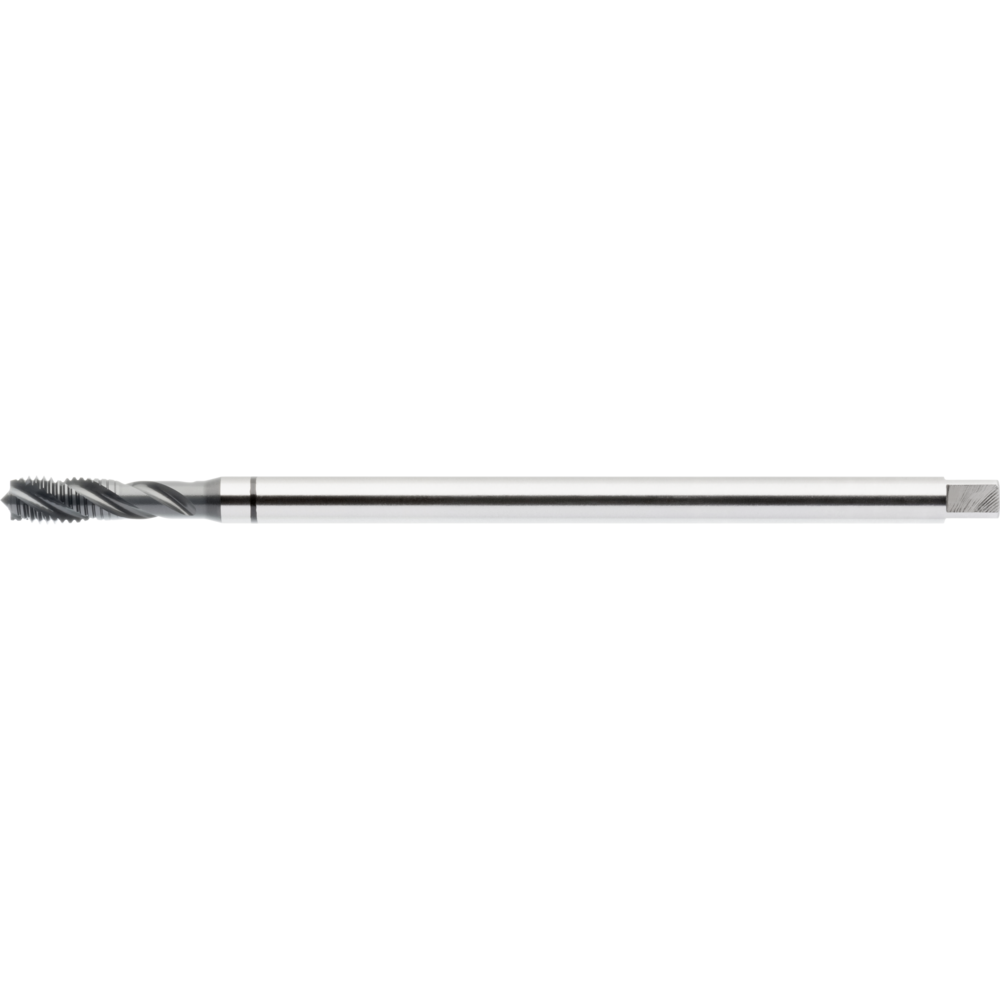

Machine tap HSSE WN (UNI) M3 6H, long version, blind-hole, vap.

Machine tap HSSE WN (UNI) M3 6H, long version, blind-hole, vap.
Machine tap HSSE WN (UNI) M3 6H, long version, blind-hole, vap. Machine tap HSSE WN (UNI) M3 6H, long version, blind-hole, vap.
Price:
34,80 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Universal machine taps, long
  • Metric ISO 6H thread
  • Form C, 2-3 thread chamfer, for blind-hole threads
  • Constructional dimensions similar to DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E, vapour-treated
  • Possible thread depth 2.5 x D
  • For universal applications

Universal machine taps, long
  • Metric ISO 6H thread
  • Form C, 2-3 thread chamfer, for blind-hole threads
  • Constructional dimensions similar to DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E, vapour-treated
  • Possible thread depth 2.5 x D
  • For universal applications

Article no./ATORN no.
1347800030 / 11291062
Packaging unit
1
Catalogue page
KS-0240
Cutting values
SW-0398

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating uncoated
Coating uncoated
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D M3
D M3
D1 3,5 mm
D1 3,5 mm
DIN Company standard
DIN Company standard
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form/Chamfer C
Form/Chamfer C
L 112 mm
L 112 mm
L1 6 mm
L1 6 mm
L2 18 mm
L2 18 mm
Max. thread depth 2,5xD
Max. thread depth 2,5xD
Nenndurchmesser 3 mm
Passend für Gewinde M3-M16
Pitch 0,5 mm
Pitch 0,5 mm
Surface Vaporised
Surface Vaporised
Tapping hole Ø 2,5 mm
Tapping hole Ø 2,5 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Blind hole ≤ 2.5xD
Threaded hole type Blind hole ≤ 2.5xD
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Tolerance of shank diameter h9
Tolerance of shank diameter h9
Toleranz Schaftvierkant h12
Twist angle 40°
Twist angle 40°
Typ UNI 40 Control

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
brass long
brass long
brass short
brass short
bronze long
bronze long
cast iron GGG
cast iron GGG
plastic
plastic
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
