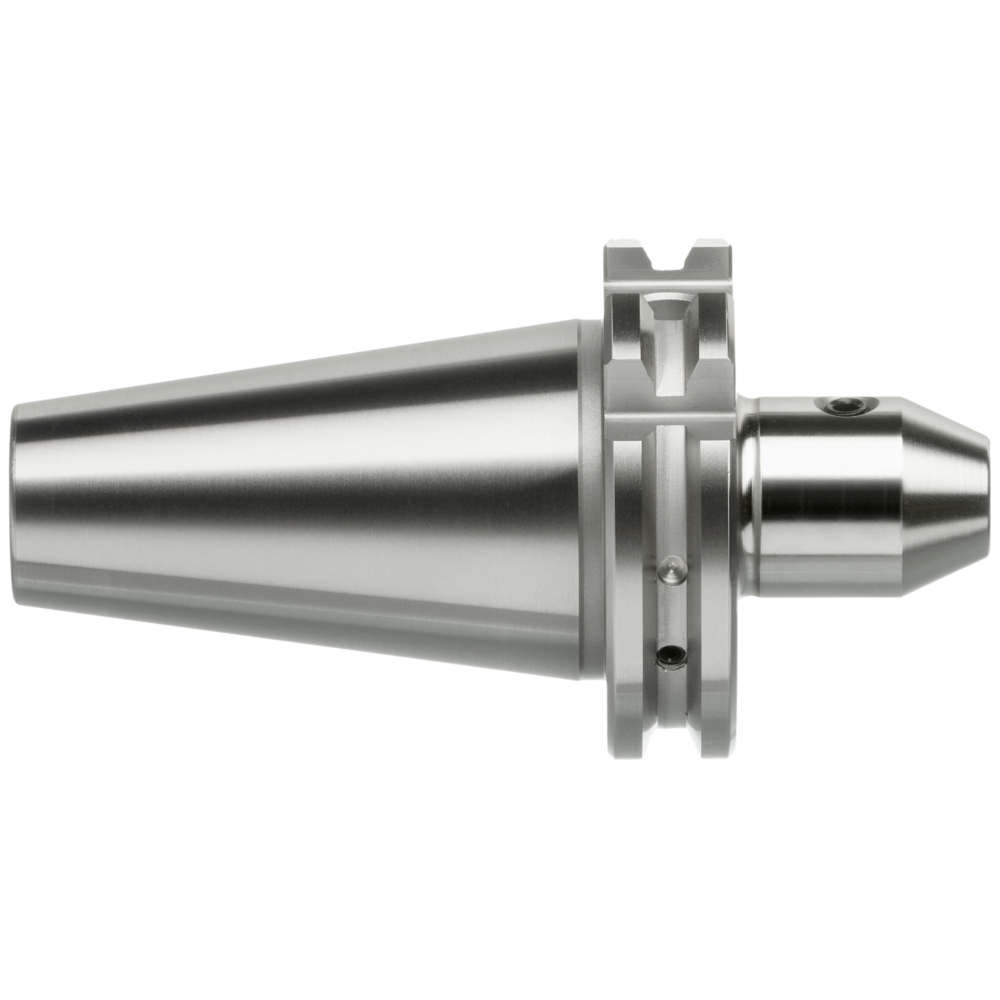

Mill. cutter mount DIN6359 (Weldon) w. planar support DIN ISO 7388-1, SK40 Ø6 mm

Mill. cutter mount DIN6359 (Weldon) w. planar support DIN ISO 7388-1, SK40 Ø6 mm
Mill. cutter mount DIN6359 (Weldon) w. planar support DIN ISO 7388-1, SK40 Ø6 mm
Price:
166,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Milling cutter mount DIN6359 (Weldon) with planar support
  • Pre-balanced to G 2.5 / 25,000 rpm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187
  • Max. true running accuracy < 0.005 mm
  • Internal coolant supply
  • Case hardened to HRC 60 ± 2

DIN ISO 7388-1 AD (DIN 69871 AD)
  • Internal coolant supply

Milling cutter mount DIN6359 (Weldon) with planar support
  • Pre-balanced to G 2.5 / 25,000 rpm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187
  • Max. true running accuracy < 0.005 mm
  • Internal coolant supply
  • Case hardened to HRC 60 ± 2

DIN ISO 7388-1 AD (DIN 69871 AD)
  • Internal coolant supply

Article no./ATORN no.
4346034006 / 21981128
Packaging unit
1
Catalogue page
KS-1196

Technical characteristics

A 50 mm
A 50 mm
Coolant supply Yes
Coolant supply Yes
D1 6 mm
D1 6 mm
DIN 69871-1
DIN 69871-1
Form AD
Outer diameter 25 mm
Outer diameter 25 mm
Rundlauftoleranz 5 µm
Standard constructional dimensions DIN 7388-1
Standard constructional dimensions DIN 7388-1
Taper type SK40
Taper type SK40
Tool holding device SK 40
Tool holding device SK 40
Wuchtgüte G 6,3 bei 25000 1/min
