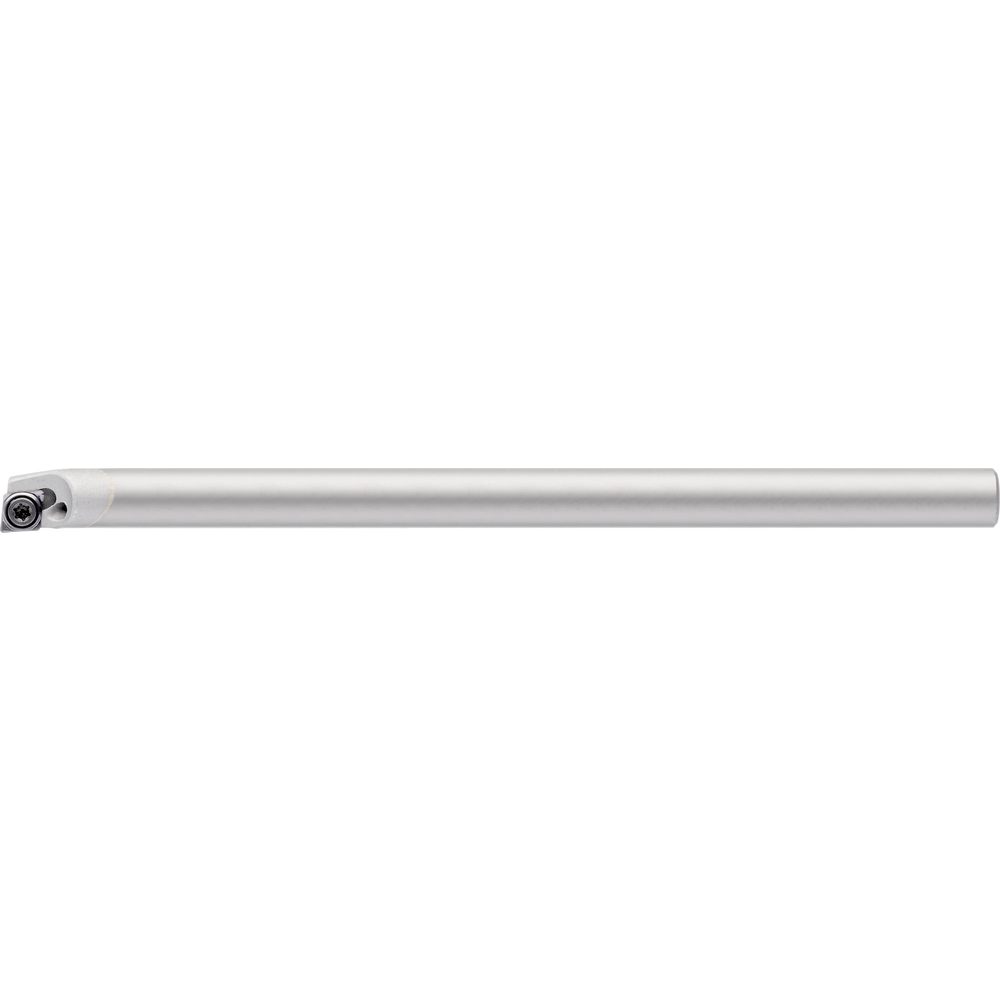

Boring bar E04F SCLD-R-04 setting angle 95°, for CDGT 0401..

Boring bar E04F SCLD-R-04 setting angle 95°, for CDGT 0401..
Boring bar E04F SCLD-R-04 setting angle 95°, for CDGT 0401.. Boring bar E04F SCLD-R-04 setting angle 95°, for CDGT 0401..
Price:
169,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Miniature turning range with indexable cutting inserts

Miniature turning range with indexable cutting inserts, positive
  • Application: for miniature turning from Ø 4.8 mm with CD.. - CP.. - WC.. - VC.. Indexable cutting inserts
  • Wide range of boring bars in various materials: steel, HSS, solid carbide
  • ISO ultra-small indexable cutting inserts of the latest generation

Solid carbide boring bar, positive SCLD
  • SCLD R/L 95°
  • Setting angle 95°, for rhombic indexable inserts positive 7°, 80° point angle
  • Material: Longitudinal turning

Article no./ATORN no.
3225210104 / 12230054
Packaging unit
1
Catalogue page
KS-0944

Technical characteristics

Anstellwinkel 95 °
Coolant supply Internal
D min. 4,8 mm
D1 4 mm
Design Right
DIN 8024
F 2,4 mm
Freiwinkel 7 °
ISO designation E04F-SCLD R/L 04
Klemmsystem S
L 80 mm
Schaftausführung E
Schneidenhöhe 3,5 mm
Schneidenlänge 4 mm
Spannflächenhöhe 4 mm
suitable indexable inserts CD.. 0401
Wendeschneidplattenform ISO C
Wendeschneidplattenwinkel 80 °
