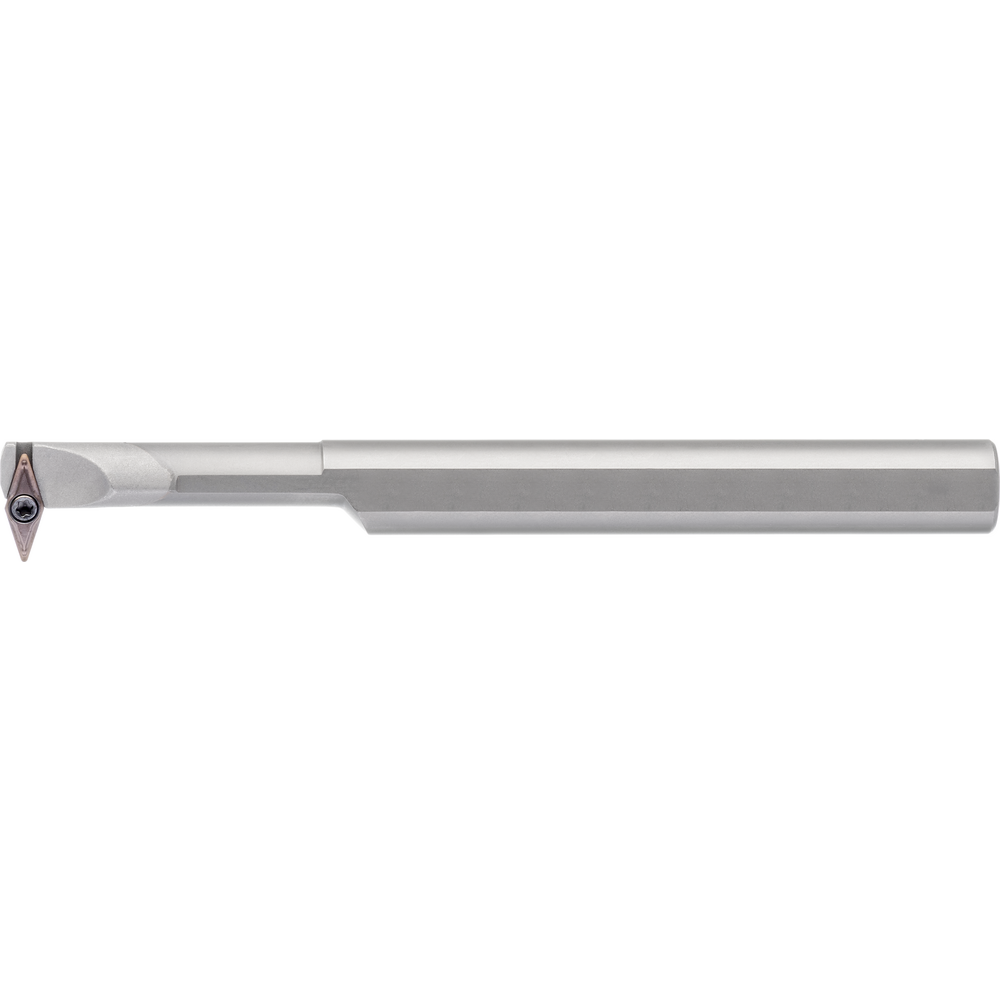

Boring bar E08F SVVC-L-05 setting angle 72.5°, for VCGT 0501..

Boring bar E08F SVVC-L-05 setting angle 72.5°, for VCGT 0501..
Boring bar E08F SVVC-L-05 setting angle 72.5°, for VCGT 0501.. Boring bar E08F SVVC-L-05 setting angle 72.5°, for VCGT 0501..
Individual price after or registration
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Miniature turning range with indexable cutting inserts

Miniature turning range with indexable cutting inserts, positive
  • Application: for miniature turning from Ø 4.8 mm with CD.. - CP.. - WC.. - VC.. Indexable cutting inserts
  • Wide range of boring bars in various materials: steel, HSS, solid carbide
  • ISO ultra-small indexable cutting inserts of the latest generation

Solid carbide boring bar, positive SVVC
Article no./ATORN no.
3225300008 / 12230359
Packaging unit
1
Catalogue page
KS-0945

Technical characteristics

Anstellwinkel 72,5 °
Coolant supply Internal
D min. 9,7 mm
D1 8 mm
Design Left
DIN 8024
F 3,5 mm
Freiwinkel 7 °
ISO designation E08F-SVVC R/L 05
Klemmsystem S
L 80 mm
L2 26 mm
Schaftausführung E
Schneidenlänge 5 mm
Spannflächenhöhe 7 mm
suitable indexable inserts VC.. 0501..
Wendeschneidplattenform ISO V
Wendeschneidplattenwinkel 35 °
