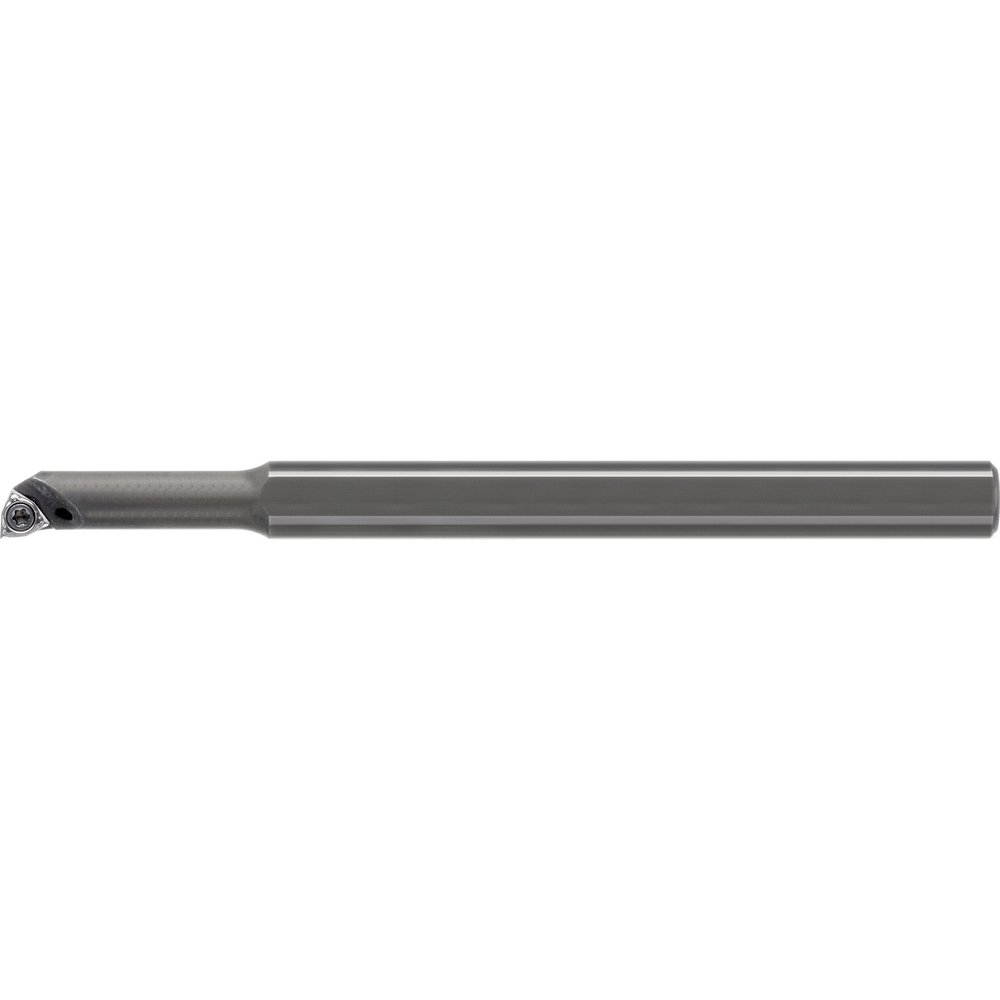

Boring bar E0508H SWUC-R-02 setting angle 93°, for WC.T 0201..

Boring bar E0508H SWUC-R-02 setting angle 93°, for WC.T 0201..
Boring bar E0508H SWUC-R-02 setting angle 93°, for WC.T 0201.. Boring bar E0508H SWUC-R-02 setting angle 93°, for WC.T 0201..
Price
279,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Miniature turning range with indexable cutting inserts

Miniature turning range with indexable cutting inserts, positive
  • Application: for miniature turning from Ø 4.8 mm with CD.. - CP.. - WC.. - VC.. Indexable cutting inserts
  • Wide range of boring bars in various materials: steel, HSS, solid carbide
  • ISO ultra-small indexable cutting inserts of the latest generation

Solid carbide boring bar, positive SWUC offset
  • SWUC R/L 93°
  • Setting angle 93°, for trigonometric indexable inserts positive 7°, 80° point angle
  • Material: Longitudinal turning

Article no./ATORN no.
3225170105 / 12230044
Packaging unit
1
Catalogue page
KS-0947

Technical characteristics

Anstellwinkel 93 °
Coolant supply Internal
D min. 5,8 mm
D1 8 mm
D2 5 mm
Design Right
DIN 8024
F 2,9 mm
Freiwinkel 7 °
ISO designation E0508H-SWUC R/L 02
Klemmsystem S
L 100 mm
L2 18 mm
Schaftausführung E
Schneidenhöhe 4,5 mm
Schneidenlänge 5 mm
Spannflächenhöhe 7 mm
suitable indexable inserts WC.. 0201..
Wendeschneidplattenform ISO W
Wendeschneidplattenwinkel 80 °
