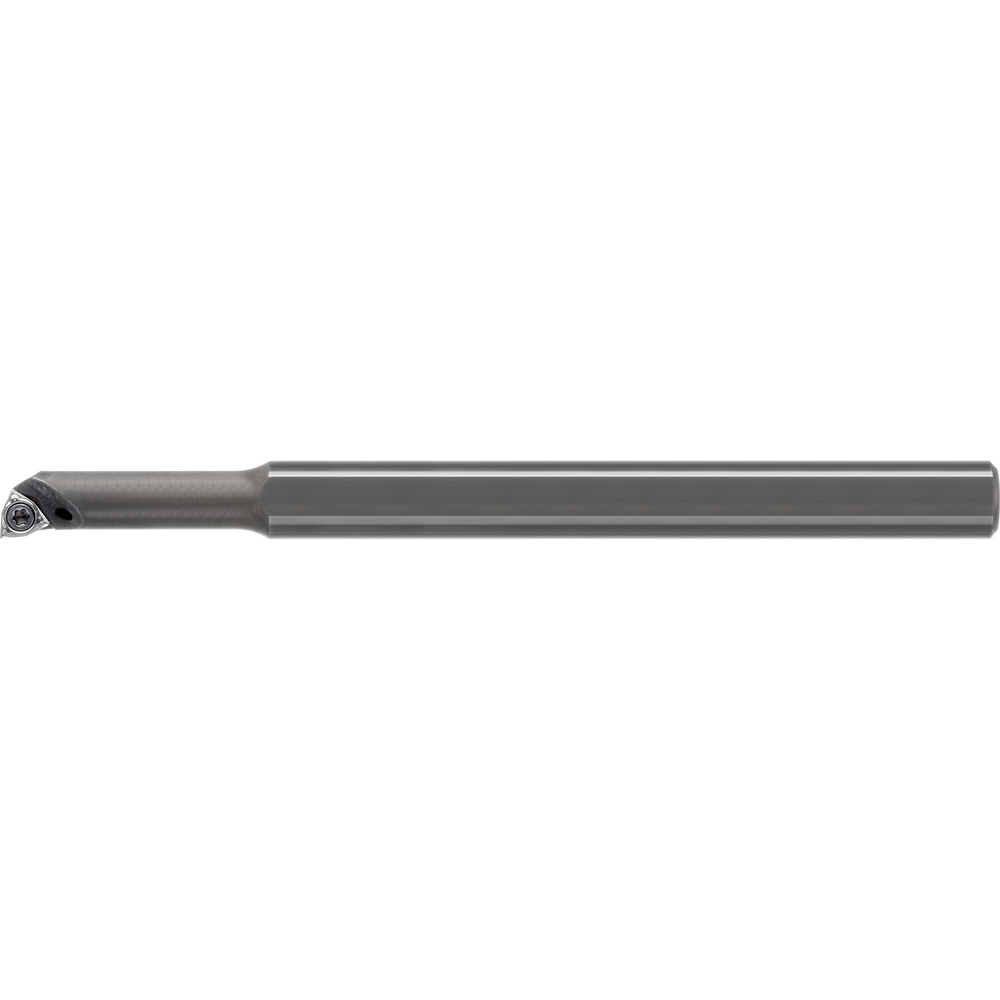

Boring bar AH0508H SWUC-R-02 setting angle 93°, for WC.T 0201..

Boring bar AH0508H SWUC-R-02 setting angle 93°, for WC.T 0201..
Boring bar AH0508H SWUC-R-02 setting angle 93°, for WC.T 0201.. Boring bar AH0508H SWUC-R-02 setting angle 93°, for WC.T 0201..
Price
172,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Miniature turning range with indexable cutting inserts

Miniature turning range with indexable cutting inserts, positive
  • Application: for miniature turning from Ø 4.8 mm with CD.. - CP.. - WC.. - VC.. Indexable cutting inserts
  • Wide range of boring bars in various materials: steel, HSS, solid carbide
  • ISO ultra-small indexable cutting inserts of the latest generation

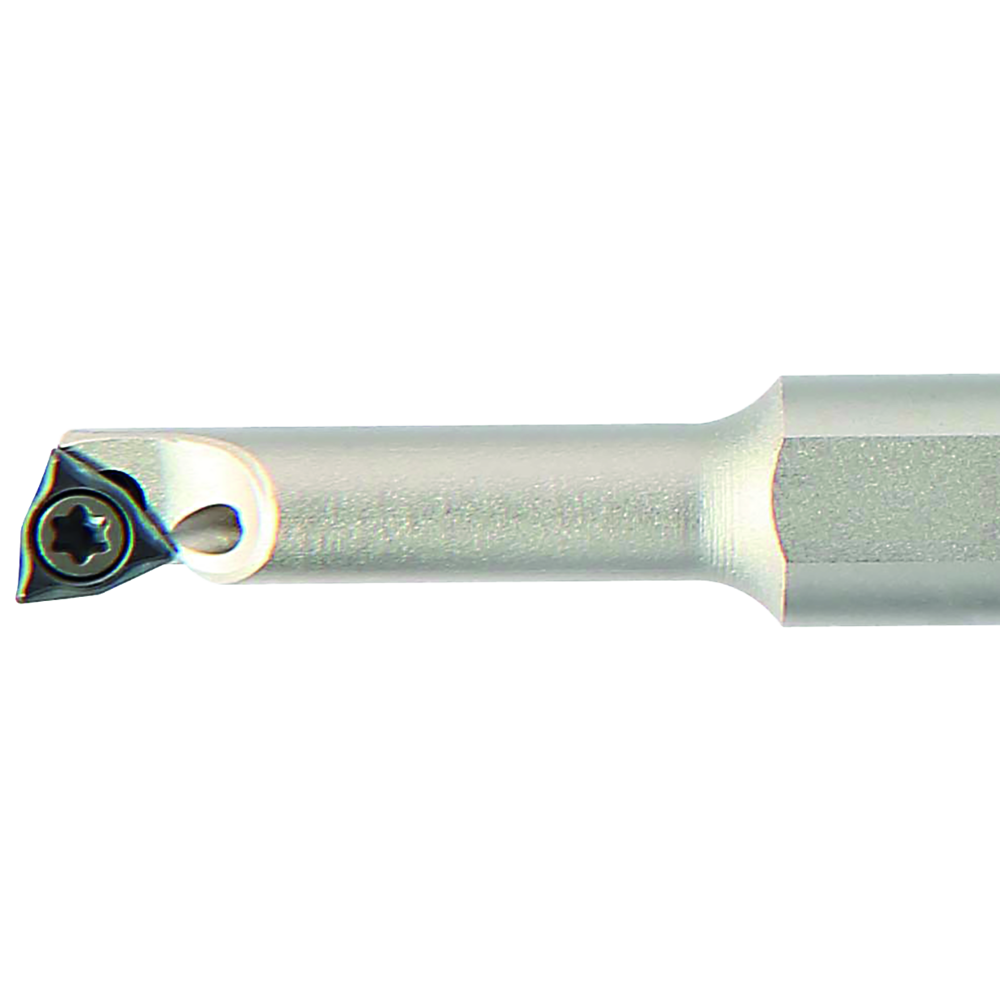

HSS boring bar, positive SWUC offset
  • SWUC R/L 93°
  • Setting angle 93°, for trigonometric indexable inserts positive 7°, 80° point angle
  • Material: Longitudinal turning

Article no./ATORN no.
3225150005 / 12232623
Packaging unit
1
Catalogue page
KS-0947

Technical characteristics

D min. 5,8 mm
D1 5 mm
D1 8 mm
Design Right
F 2,9 mm
ISO designation AH0508H SWUC. 02
L 100 mm
L1 18 mm
suitable indexable inserts WC.. 0201..
