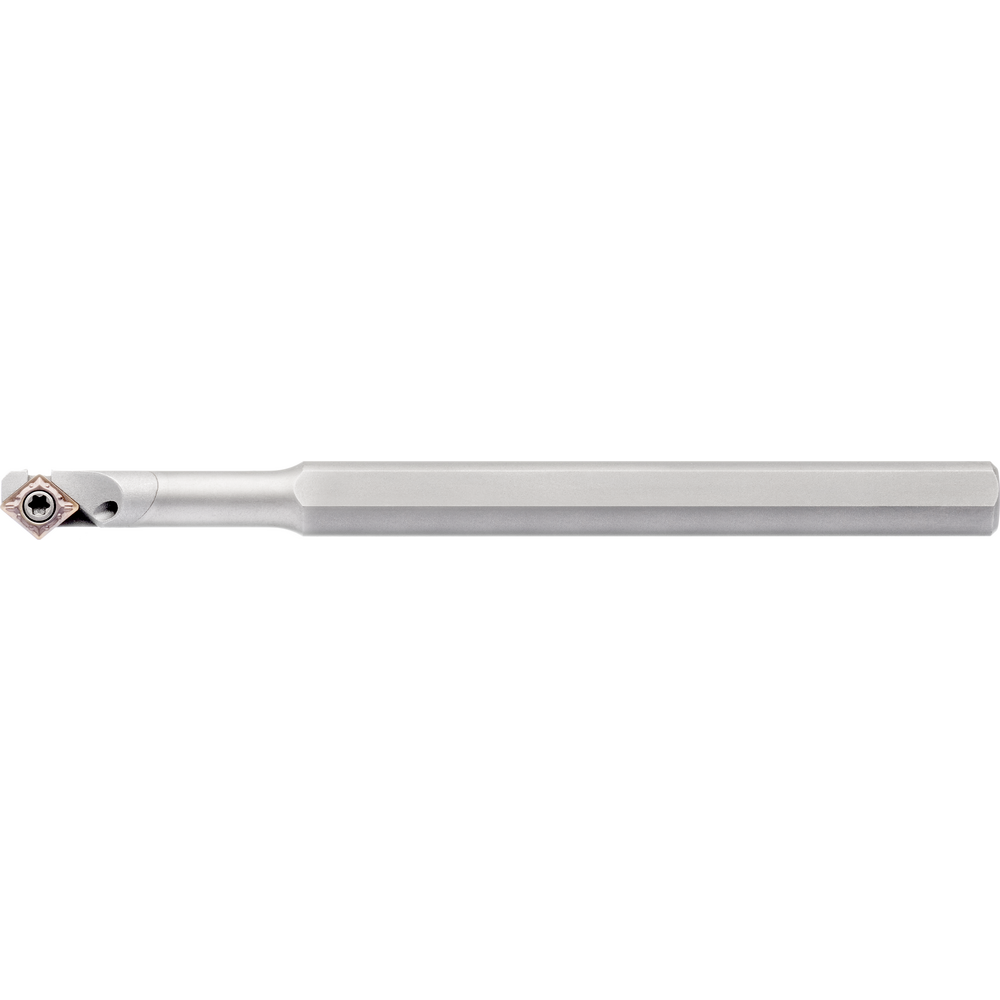

Boring bar E0608H SCXP-R-05 setting angle 95°, for CP.T 05T1..

Boring bar E0608H SCXP-R-05 setting angle 95°, for CP.T 05T1..
Boring bar E0608H SCXP-R-05 setting angle 95°, for CP.T 05T1.. Boring bar E0608H SCXP-R-05 setting angle 95°, for CP.T 05T1..
Special offer
84,00 €
(210,00 € catalogue price / 60% saved)
prices excl. vat plus shipping costs

Stock status
Only 1 pieces left!
Add to shopping cart
Tool Finder
Miniature turning range with indexable cutting inserts

Miniature turning range with indexable cutting inserts, positive
  • Application: for miniature turning from Ø 4.8 mm with CD.. - CP.. - WC.. - VC.. Indexable cutting inserts
  • Wide range of boring bars in various materials: steel, HSS, solid carbide
  • ISO ultra-small indexable cutting inserts of the latest generation

Solid carbide boring bar, positive SCXP offset
  • SCXP R/L 95°
  • Setting angle 95°, for rhombic indexable inserts positive 7°, 80° point angle
  • Material: Longitudinal turning

Article no./ATORN no.
3225110106 / 12230032
Packaging unit
1
Catalogue page
KS-0944

Technical characteristics

Anstellwinkel 95 °
Coolant supply Internal
D min. 8,5 mm
D1 8 mm
D2 6 mm
Design Right
DIN 8024
F 4,5 mm
Freiwinkel 7 °
ISO designation E0608H-SCXP R/L 05
Klemmsystem S
L 100 mm
L2 28 mm
Schaftausführung E
Schneidenhöhe 5,0 mm
Schneidenlänge 5 mm
Spannflächenhöhe 7 mm
suitable indexable inserts CP.. 05T1..
Wendeschneidplattenform ISO C
Wendeschneidplattenwinkel 80 °
