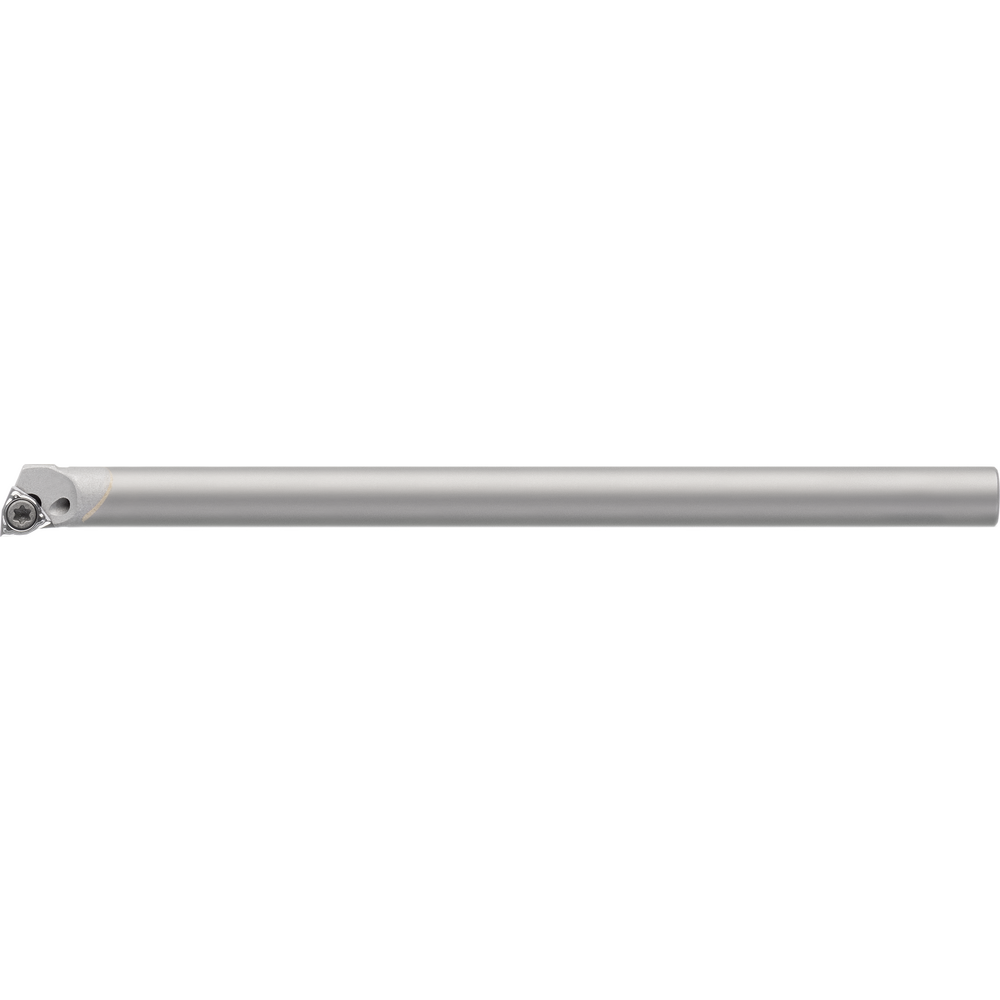

Boring bar E05F SWUC-R-02 setting angle 93°, for WC.T 0201..

Boring bar E05F SWUC-R-02 setting angle 93°, for WC.T 0201..
Boring bar E05F SWUC-R-02 setting angle 93°, for WC.T 0201.. Boring bar E05F SWUC-R-02 setting angle 93°, for WC.T 0201..
Individual price after or registration
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Miniature turning range with indexable cutting inserts

Miniature turning range with indexable cutting inserts, positive
  • Application: for miniature turning from Ø 4.8 mm with CD.. - CP.. - WC.. - VC.. Indexable cutting inserts
  • Wide range of boring bars in various materials: steel, HSS, solid carbide
  • ISO ultra-small indexable cutting inserts of the latest generation

Solid carbide boring bar, positive SWUC
  • SWUC R/L 93°
  • Setting angle 93°, for trigonometric indexable inserts positive 7°, 80° point angle
  • Material: Longitudinal turning

Article no./ATORN no.
3225350105 / 12230109
Packaging unit
1
Catalogue page
KS-0947

Technical characteristics

Anstellwinkel 93 °
Coolant supply Internal
D min. 5,8 mm
D1 5 mm
Design Right
DIN 8024
F 2,9 mm
Freiwinkel 7 °
ISO designation E05F-SWUC R/L 02
Klemmsystem S
L 85 mm
Schaftausführung E
Schneidenhöhe 4,0 mm
Schneidenlänge 2 mm
Spannflächenhöhe 5 mm
suitable indexable inserts WC.. 0201..
Wendeschneidplattenform ISO W
Wendeschneidplattenwinkel 80 °
Werkstoff ST
