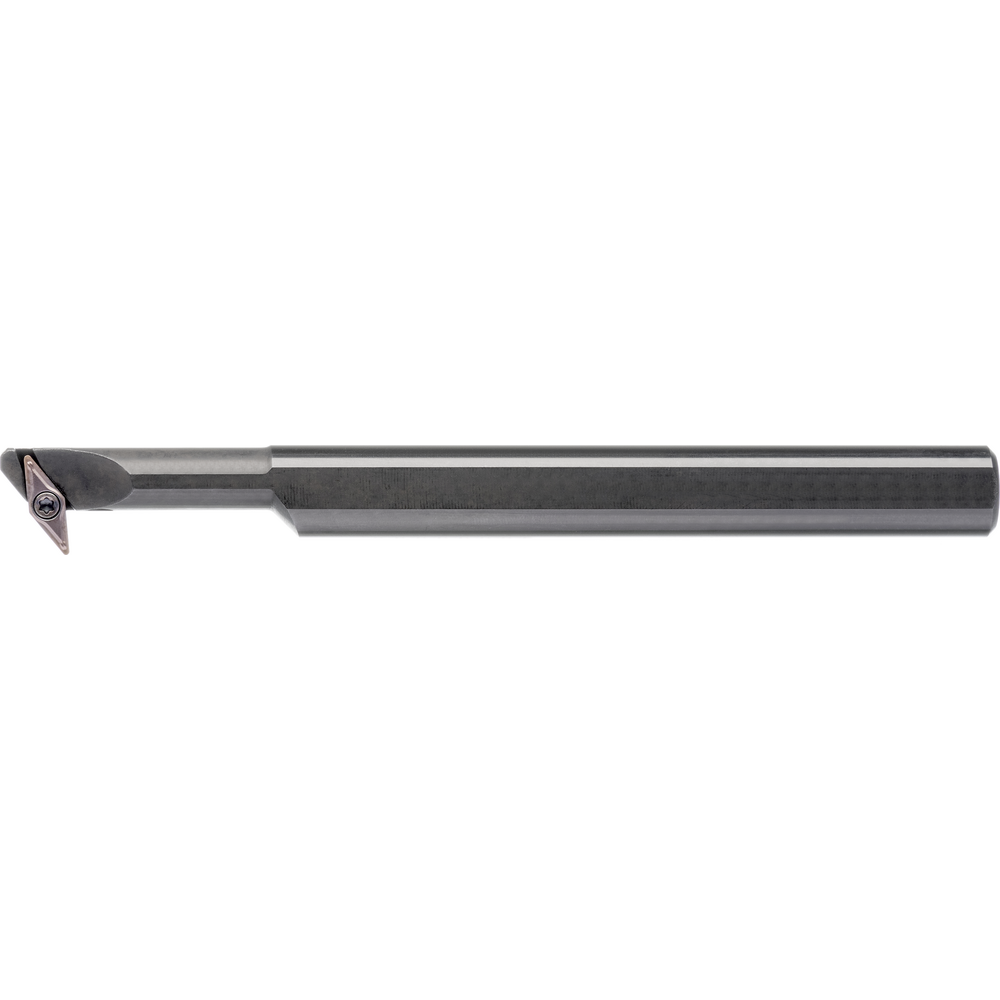

Boring bar A08F SV95C-L-05 setting angle 50°, for VCGT 0501..

Boring bar A08F SV95C-L-05 setting angle 50°, for VCGT 0501..
Boring bar A08F SV95C-L-05 setting angle 50°, for VCGT 0501.. Boring bar A08F SV95C-L-05 setting angle 50°, for VCGT 0501..
Price:
92,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Miniature turning range with indexable cutting inserts

Miniature turning range with indexable cutting inserts, positive
  • Application: for miniature turning from Ø 4.8 mm with CD.. - CP.. - WC.. - VC.. Indexable cutting inserts
  • Wide range of boring bars in various materials: steel, HSS, solid carbide
  • ISO ultra-small indexable cutting inserts of the latest generation

Boring bar, positive SV95C
  • SV95C R/L 95°
  • Setting angle 95°, for rhombic indexable inserts positive 7°, 35° point angle
  • Material: Longitudinal and copy turning, reverse turning

Article no./ATORN no.
3225420008 / 12230349
Packaging unit
1
Catalogue page
KS-0947

Technical characteristics

Anstellwinkel 95 °
Coolant supply Internal
D min. 9,2 mm
D1 8 mm
Design Left
DIN 8024
F 3 mm
Freiwinkel 7 °
ISO designation A 08F SV95C R/L 05
Klemmsystem S
L 80 mm
L2 15 mm
Schneidenlänge 5 mm
Spannflächenhöhe 7 mm
suitable indexable inserts VC.. 0501..
Wendeschneidplattenform ISO V
Wendeschneidplattenwinkel 35 °
Werkstoff ST
