Clamp mount. SVXC-L 0808 D07, setting angle 113°, for turning inserts VC.T0702..

Clamp mount. SVXC-L 0808 D07, setting angle 113°, for turning inserts VC.T0702..
Clamp mount. SVXC-L 0808 D07, setting angle 113°, for turning inserts VC.T0702.. Clamp mount. SVXC-L 0808 D07, setting angle 113°, for turning inserts VC.T0702..
Individual price after or registration
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Miniature turning range with indexable cutting inserts, positive
Tool holder, positive SVXC

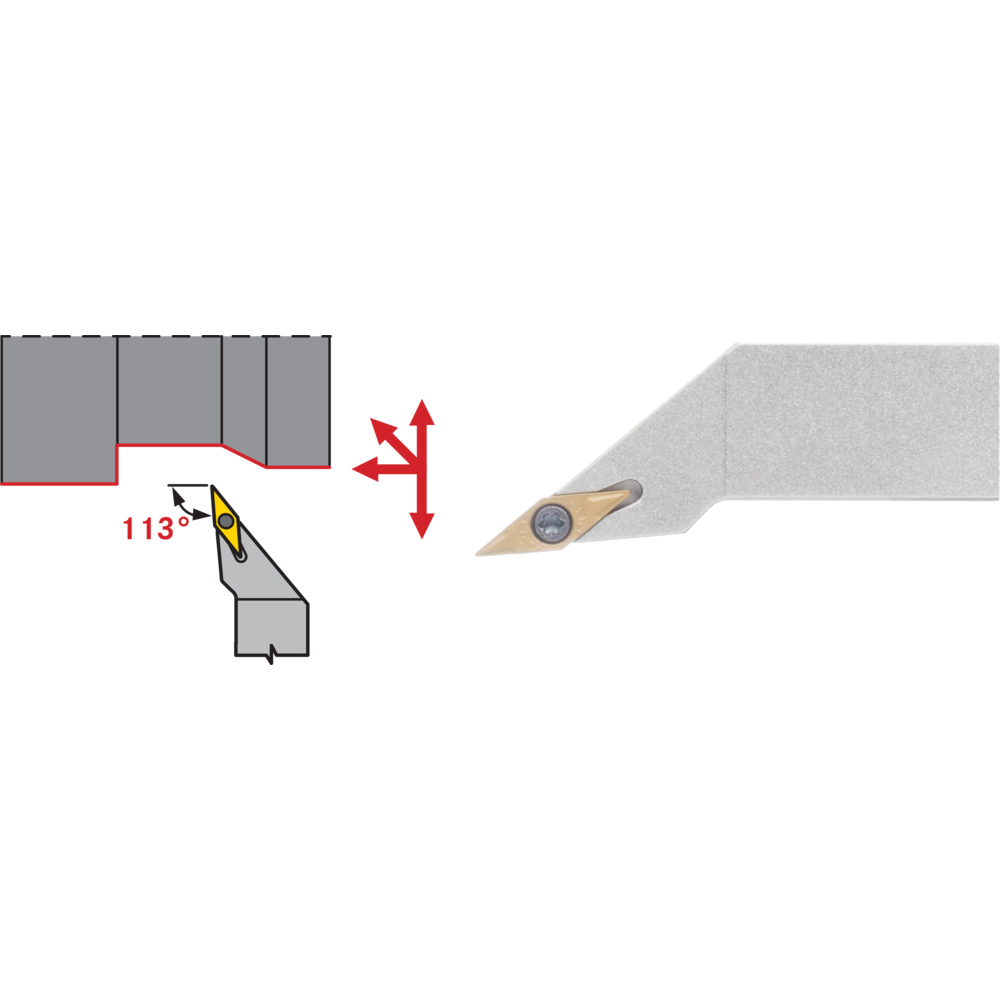

  • SVXC R/L 113°
  • Setting angle 113°, for rhombic indexable inserts positive 7º, 35º point angle
  • Material: Longitudinal turning and facing

Article no./ATORN no.
3226050808 / 11110879
Packaging unit
1
Catalogue page
KS-0941

Technical characteristics

Anstellwinkel 113 °
Design Left
F 10 mm
Freiwinkel 7 °
ISO designation SVXC R/L 0808 D07
Klemmsystem S
L 60 mm
L1 15 mm
Schneidenlänge 7 mm
Shank height 8 mm
Shank width 8 mm
suitable indexable inserts VC.. 0702..
Wendeschneidplattenform ISO V
