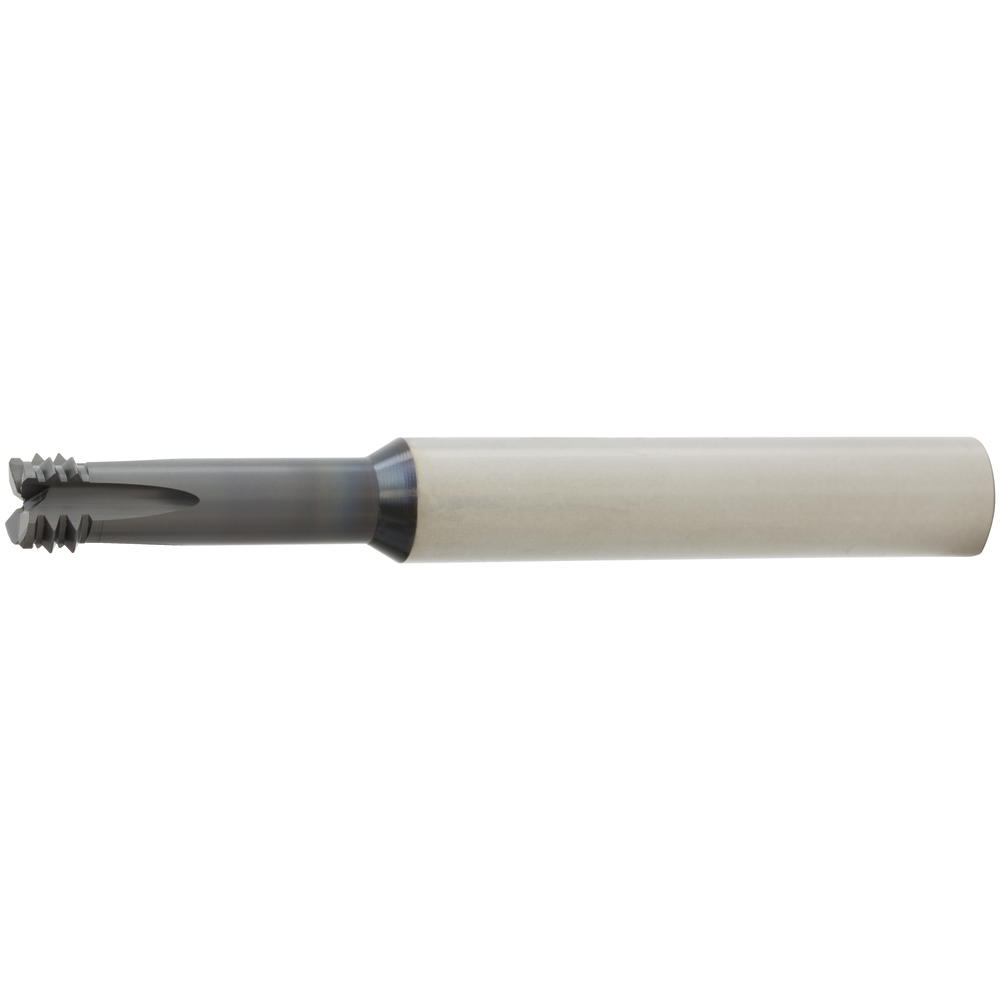

Gewindefräser WH-EM-PNC 2.4x6 P0.5-INT (M3x0.5) WXS

Gewindefräser WH-EM-PNC 2.4x6 P0.5-INT (M3x0.5) WXS
Gewindefräser WH-EM-PNC 2.4x6 P0.5-INT (M3x0.5) WXS Gewindefräser WH-EM-PNC 2.4x6 P0.5-INT (M3x0.5) WXS
Price:
115,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Thread milling cutter WHO-EM-PNC
  • Thread milling cutter in full
  • WXS coating
  • Tool is left-cutting (anti-clockwise spindle rotation)
  • Right-hand feed (clockwise)
  • Ultra-fine carbide
  • 4 grooves, sturdy negative rake angle

Metric, full profile, ISO 60°, internal
Article no./ATORN no.
2585000030
Vendor Article no.
48347003
Packaging unit
1
Catalogue page

Technical characteristics

A 12,3 mm
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D1 1,70 mm
D1 6 mm
L 50 mm
L1 7,5 mm
Pitch 0,8 mm
Standard thread M 3
Tool holding device Zylinderschaft HA
Type T1606081
Z 4 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
cast iron GGG
hardened steel ≤ 55 HRC
stainless steel austenitic
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
