IDC digital ABSOLUTE dial indicator for run-out measurements

• Dial indicator for run-out measurement; allows max., min. and difference values (TIR) to be retrieved
• ABSOLUTE scale
• Combined digital and analogue display
• Display component can be rotated through 330° for better readability
• Programmable Ax factor (x = spindle
• Adjustable resolution 0.01 mm / 0.001 mm
• 3 memory slots for pre-set and tolerance values
• Configurable via PC (special interface optional)
• Contact point M2.5,
• Clamping shank Ø 8 mm
• Functions: ON/OFF, MENU for switching between max. / min. / TIR modes, PRESET/SET for pre-setting values / inputting tolerances, START/ZERO/ABS for user-defined zeroing / incremental mode, view selection in tolerance mode, +/- to reverse measuring direction
• Supplied in moulded packaging with CR 2032 battery no. 548079 6032

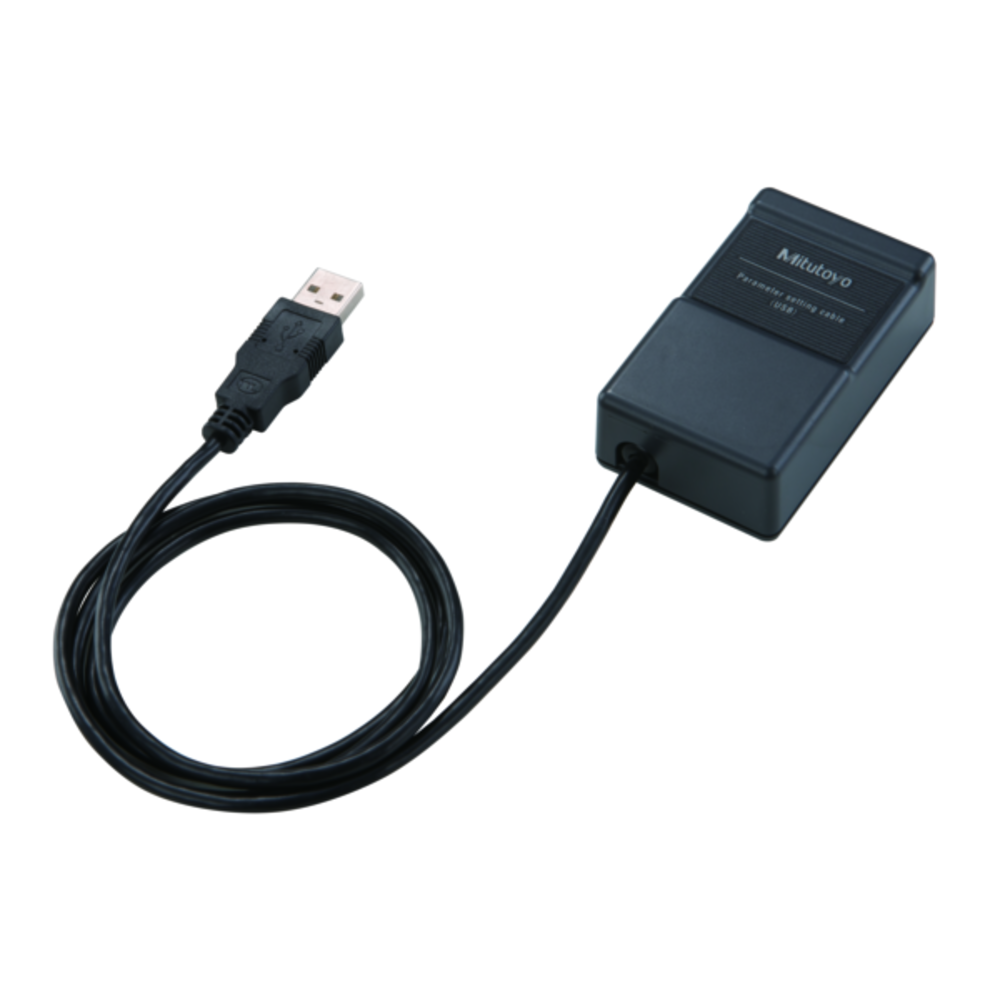

• Optional accessories: Digimatic cable type F, no. 563100 0051 (1 m), no. 563100 0052 (2 m); USB cable type F-USB, no. 563110 0006
