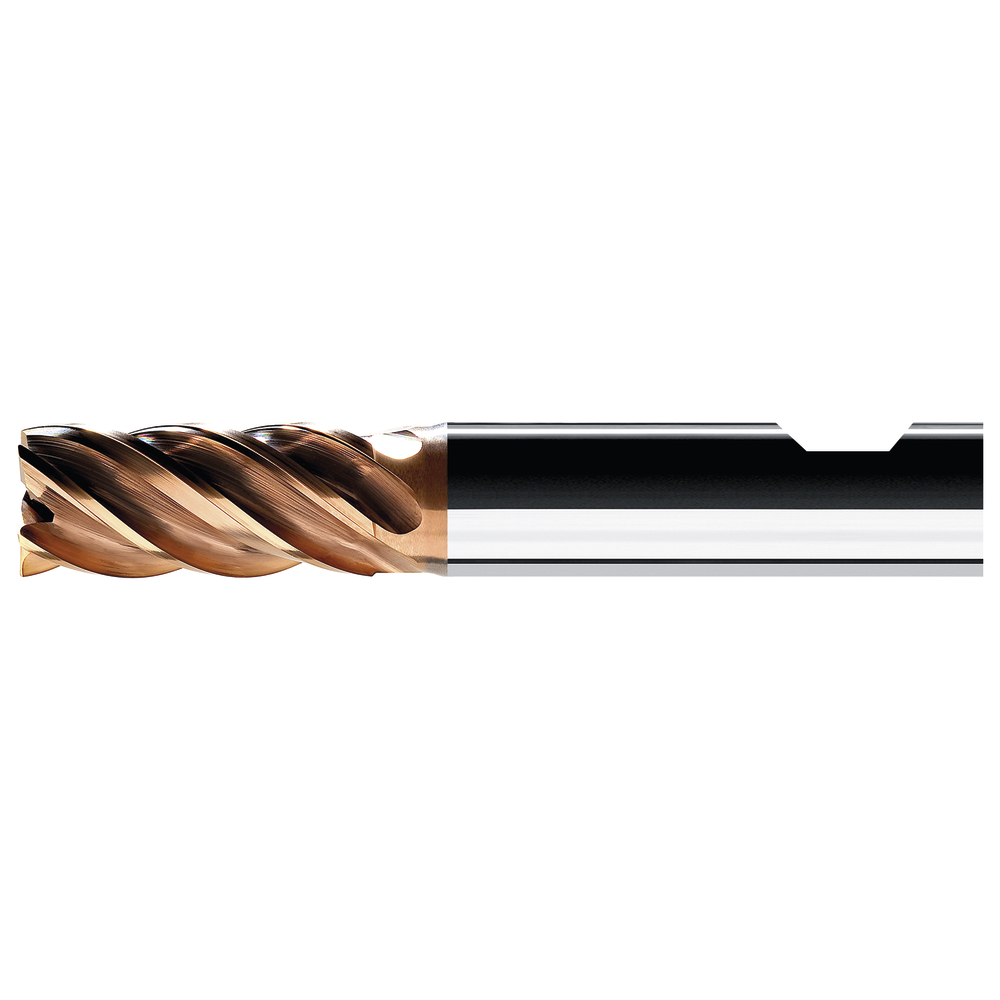

Solid carbide end milling cutter 3 mm R=0.2 mm Z=5 HA, TiAlN

Solid carbide end milling cutter 3 mm R=0.2 mm Z=5 HA, TiAlN
Solid carbide end milling cutter 3 mm R=0.2 mm Z=5 HA, TiAlN Solid carbide end milling cutter 3 mm R=0.2 mm Z=5 HA, TiAlN
Price:
48,30 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

For machining titanium and stainless steel

VHVTR/W 4/5 end milling cutter
  • Cutting material: ultra-fine grain solid carbide, TiAlSiN-coated
  • Special pre-treatment and finishing treatment due to micro radiation
  • New chip flute geometry for enhanced cooling and chip flow
  • For wet machining, high material removal rate

Standard with driving plane Z5
Article no./ATORN no.
2551020302
Vendor Article no.
VHVTR50300510603
Packaging unit
1
Catalogue page
KS-0487
Cutting values
SW-0751

Technical characteristics

Application direction milling Lining, ramping and drilling
Coating TiAlSiN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3,0 mm
D1 6 mm
Design DIN 6535-HB
Feed for side milling fz stainless steel ferrit./martens. 0,01 mm/tooth
L 51 mm
L1 7 mm
R 0,2 mm
Tolerance of cutting edge diameter h9
Tolerance of shank diameter e8
Tool holding device HB parallel shank
Twist angle 35° | 38°
Z 5 pc.

Usage characteristics

stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
