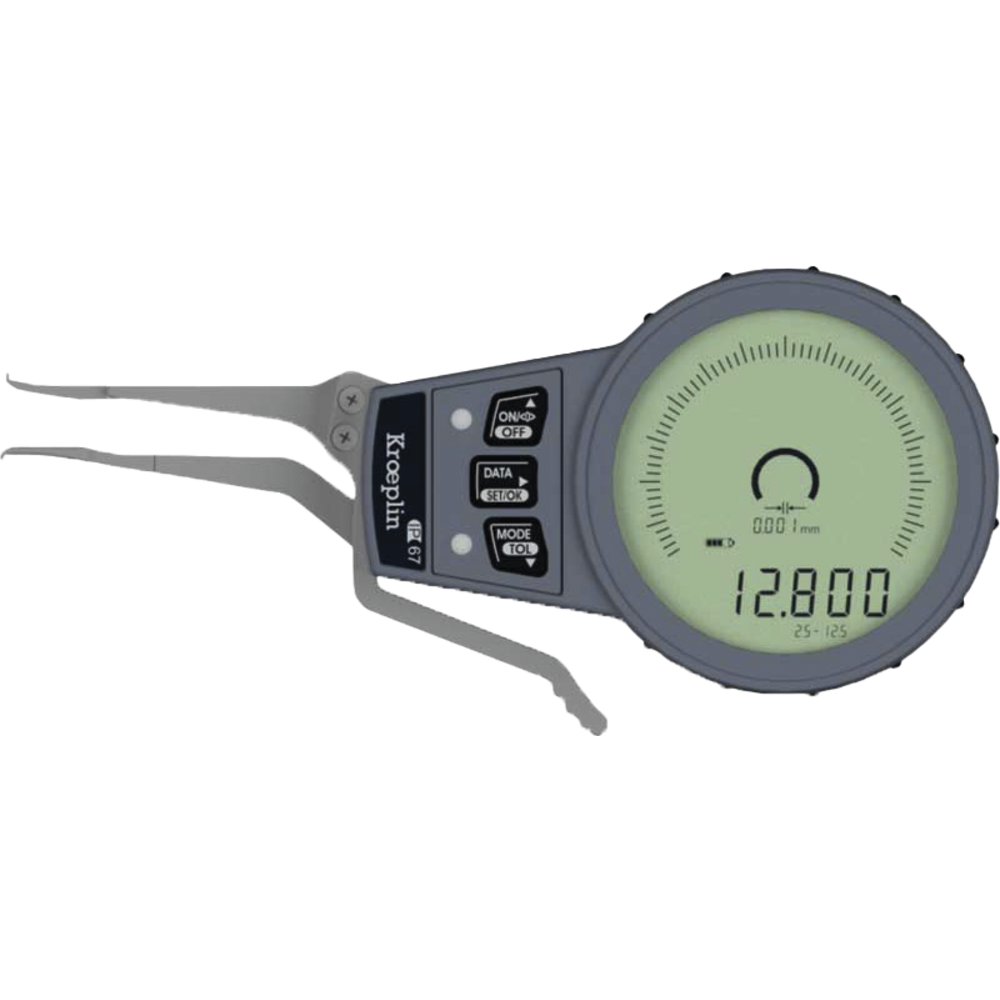

Dig. int. fast display calliper IP67 2.5-12.5 mm (0.001 mm) cutt. edge R0.12 mm

Dig. int. fast display calliper IP67 2.5-12.5 mm (0.001 mm) cutt. edge R0.12 mm
Dig. int. fast display calliper IP67 2.5-12.5 mm (0.001 mm) cutt. edge R0.12 mm Dig. int. fast display calliper IP67 2.5-12.5 mm (0.001 mm) cutt. edge R0.12 mm
Price:
509,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

Add service

*
*
Digital fast display callipers IP67
  • Extra-small design, therefore very handy fast display calliper for indoor and outdoor measurements
  • Adjustable increments: 0.001 / 0.002 / 0.005 / 0.01 mm
  • Enhanced analogue display with a display area of 250°
  • Li-ion battery with inductive charging, no battery replacement required
  • Optional Bluetooth interface (up to 8 devices at once)
  • Optional USB and Digimatic interface
  • Memory can store up to 100 measurement values
  • Functions: Control lever, measurement program selection, start menu and functions, data transfer, ON/OFF, 0-PRESET
  • Supplied with charging cradle and Bluetooth dongle (Bluetooth interface adapter optional)
  • Special accessories: Digimatic interface adapter No. 5240020006 plus Digimatic cable type E, No. 563100 0041 (1 m), No. 563100 0042 (2 m); USB cable type E-USB, No. 5631100005

Internal fast display calliper
Digital fast display callipers IP67
  • Extra-small design, therefore very handy fast display calliper for indoor and outdoor measurements
  • Adjustable increments: 0.001 / 0.002 / 0.005 / 0.01 mm
  • Enhanced analogue display with a display area of 250°
  • Li-ion battery with inductive charging, no battery replacement required
  • Optional Bluetooth interface (up to 8 devices at once)
  • Optional USB and Digimatic interface
  • Memory can store up to 100 measurement values
  • Functions: Control lever, measurement program selection, start menu and functions, data transfer, ON/OFF, 0-PRESET
  • Supplied with charging cradle and Bluetooth dongle (Bluetooth interface adapter optional)
  • Special accessories: Digimatic interface adapter No. 5240020006 plus Digimatic cable type E, No. 563100 0041 (1 m), No. 563100 0042 (2 m); USB cable type E-USB, No. 5631100005

Internal fast display calliper
Article no./ATORN no.
5210180101
Vendor Article no.
G002
Packaging unit
1
Catalogue page
KS-1416

Technical characteristics

Data transmission type DIGIMATIC/USB
Digit increment 0,001 mm
DIN Company standard
Error limit 0,01 mm
Error limit 0,01 mm
Groove depth A max. 0,7 mm
Groove width B min. 0,6 mm
Included in delivery Manufacturer’s test certificate
Measurement range 2,5-12,5 mm
Measurement range 2,5-12,5 mm
Measuring depth 12 mm
Measuring depth 12 mm
Measuring probe Cutting edge R0.12 mm
Measuring probe Cutting edge R0.12 mm
Measuring unit Unit mm/inch
Packaging / Shipment Manufacturer’s test certificate
Protection type IP 67
Protection type IP 67
Reading 0,001 mm
Standard constructional dimensions DIN Non-DIN
With mm / inch switching Yes
