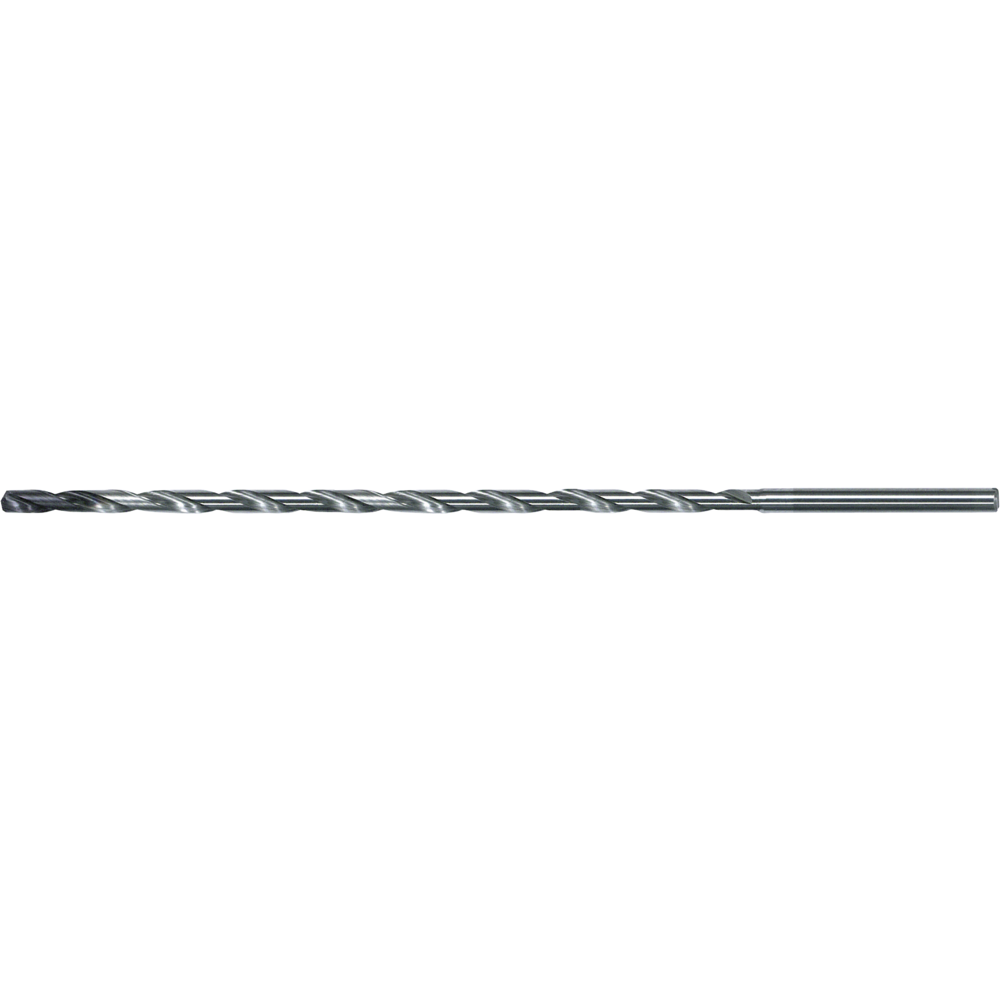

High-performance drill, solid carbide 10xD ADO 2 mm IC D1=HA WDI™

High-performance drill, solid carbide 10xD ADO 2 mm IC D1=HA WDI™
High-performance drill, solid carbide 10xD ADO 2 mm IC D1=HA WDI™ High-performance drill, solid carbide 10xD ADO 2 mm IC D1=HA WDI™ High-performance drill, solid carbide 10xD ADO 2 mm IC D1=HA WDI™
Price
154,50 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Solid carbide deep-hole drill ADO-10D
  • With optimised shank diameter tolerance, suitable for use in shrink-fit holders
  • Cutting material: SC EgiAs-coated
  • High-performance drill for cost-efficient manufacturing of deep bores up to 10xD with no step
  • Optimum chip removal with special cutting geometry and large chip spaces
  • True-running accuracy of the tool when clamped: max. 0.02mm
  • Cutting edge tolerance e8

Article no./ATORN no.
1117150020
Vendor Article no.
8696200
Packaging unit
1
Catalogue page
KS-0138
Cutting values
SW-0374

Technical characteristics

Coating TiAlN
Coolant design Internal axial
Coolant supply Internal axial
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 2 mm
D h8 2 mm
D1 3 mm
D1 h6 3 mm
DIN Non-DIN
Drilling depth 10xD
Feed f steel < 1000 N/mm² 0,04 mm/rev
L 75 mm
L1 26 mm
Max. drilling depth (D) 10xD
Point angle Point angle 140°
S 140 °
Shank Straight, DIN 6535 HA
Spiral angle 30° RH helix angle
Standard constructional dimensions DIN Non-DIN
Tool holding device Cylinder shaft HA
Twist angle 30° (rights)
Type Type TLP
Type Typ TLP

Usage characteristics

cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
