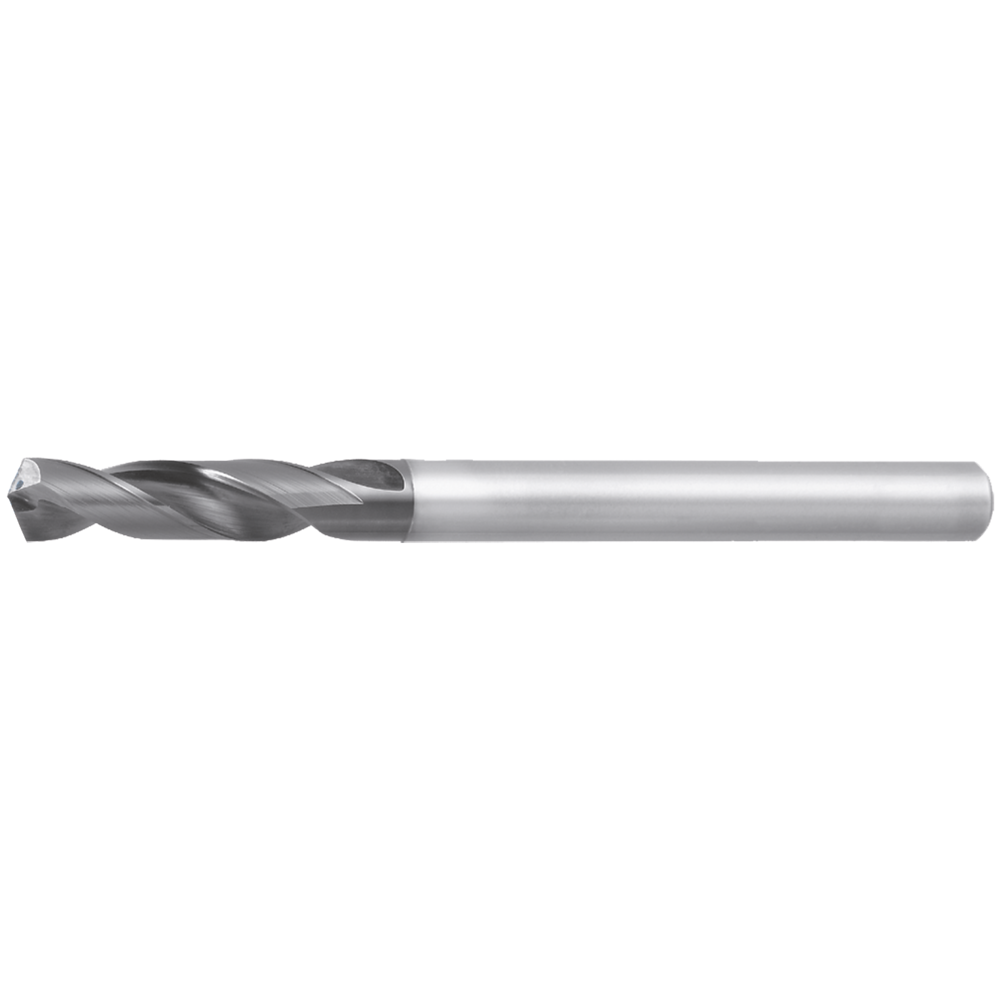

Pilot drill, solid carbide ADO-PLT 3.03 mm

Pilot drill, solid carbide ADO-PLT 3.03 mm
Pilot drill, solid carbide ADO-PLT 3.03 mm Pilot drill, solid carbide ADO-PLT 3.03 mm Pilot drill, solid carbide ADO-PLT 3.03 mm
Price:
103,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Solid carbide pilot drill ADO-PLT
  • for positioning a pilot bore for deep-hole drills from 10xD
  • with optimised shank diameter tolerance, suitable for use in shrink-fit holders
  • Cutting material: SC EgiAs-coated
  • Optimum chip removal with special cutting geometry and large chip spaces
  • True-running accuracy of the tool when clamped: max. 0.02mm
  • Cutting edge tolerance h8

Solid carbide pilot drill ADO-PLT
  • for positioning a pilot bore for deep-hole drills from 10xD
  • with optimised shank diameter tolerance, suitable for use in shrink-fit holders
  • Cutting material: SC EgiAs-coated
  • Optimum chip removal with special cutting geometry and large chip spaces
  • True-running accuracy of the tool when clamped: max. 0.02mm
  • Cutting edge tolerance h8

Article no./ATORN no.
1117260303
Vendor Article no.
8688903
Packaging unit
1
Catalogue page
KS-0161
Cutting values
SW-0370

Technical characteristics

Angle of the tip - S 160 °
Coating TiAlN
Coating TiAlN
Coolant design Internal axial
Coolant supply Intern axial
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
Cutting material Solid carbide
D 3,03 mm
D h8 3,03 mm
D1 3 mm
D1 h6 3 mm
DIN ohne DIN
Feed f steel < 1000 N/mm² 0,06 mm/rev
Feed f steel < 1000 N/mm² 0,06 mm/rev
L 65 mm
L 65 mm
L1 15 mm
L1 15 mm
Point angle Point angle 160°
Shank Straight, DIN 6535 HA
Spiral angle 30° RH helix angle
Standard constructional dimensions DIN Non-DIN
Tool holding device Zylinderschaft HA
Twist angle 30° (rechts)
Type Type PLT
Type Typ PLT

Usage characteristics

cast iron GG/GTS
cast iron GG/GTS
cast iron GGG
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
