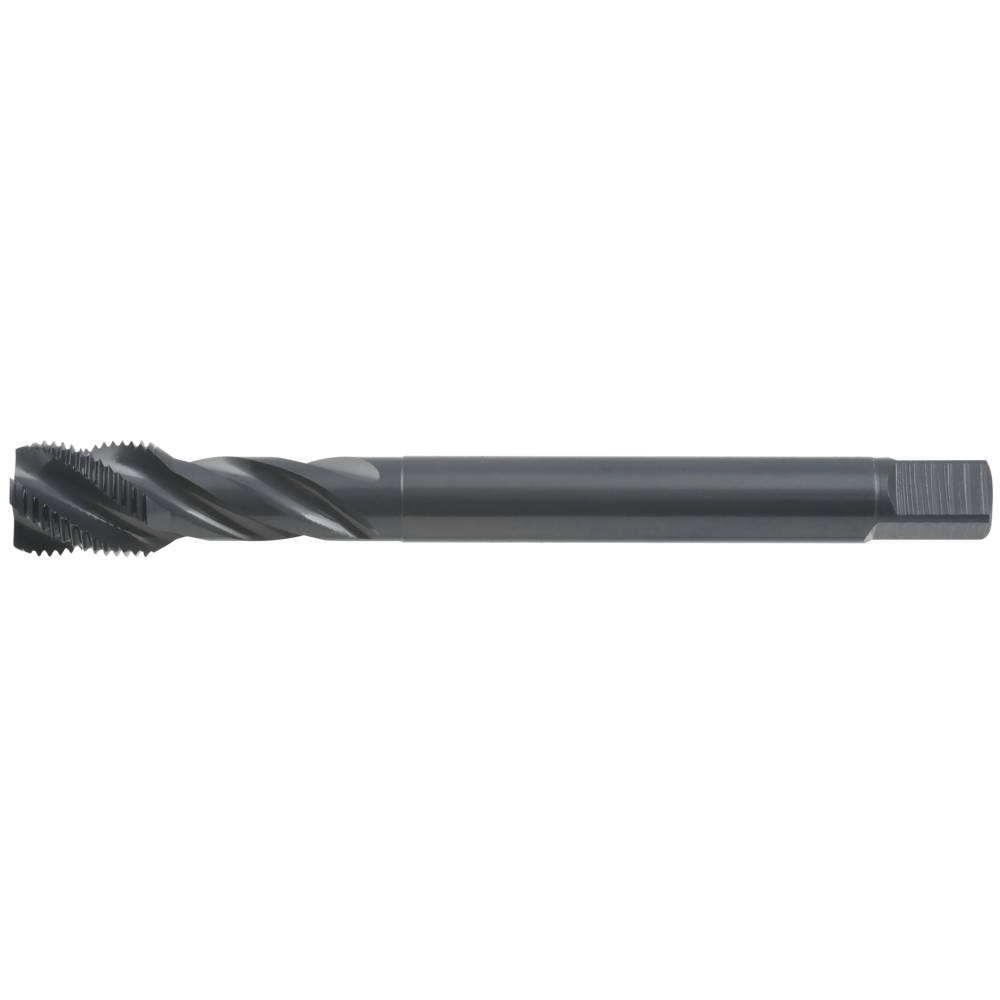

Machine tap S-SFT HSSE G 1x11 DIN5156

Price:
230,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available

Ordered by 19:30 - delivered tomorrow.

S-SFT machine tap
  • Whitworth pipe thread, 55°
  • 40° spiral-fluted
  • Form C, 2.5-thread chamfer
  • Cutting material: HSS-E, vapour-treated
  • For blind-hole threads

S-SFT machine tap
  • Whitworth pipe thread, 55°
  • 40° spiral-fluted
  • Form C, 2.5-thread chamfer
  • Cutting material: HSS-E, vapour-treated
  • For blind-hole threads

Article no./ATORN no.
1339860010
Vendor Article no.
48223600
Packaging unit
1
Catalogue page
Cutting values

Technical characteristics

C 20 mm
C 20 mm
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D G 1
D G 1
D1 25 mm
D1 25 mm
DIN 5156
Form/Chamfer C, 2.5-thread chamfer
Form/Chamfer C
L 160 mm
L 160 mm
L1 30 mm
L1 30 mm
Max. thread depth 2,5xD
Pitch 11 TPI
Pitch 11 TPI
Spiral angle 40° RH helix angle
Spiral angle 40° RH helix angle
Standard constructional dimensions DIN DIN 5156
Surface Vapour-treated
Surface Vaporisiert
Tapping hole Ø 31 mm
Tapping hole Ø 31 mm
Thread Straight pipe thread
Thread G
Thread Straight pipe thread
Thread angle 55° thread angle °
Thread angle 55 °
Thread angle 55° thread angle °
Thread depth 2.5xD thread
Threaded hole type for blind-hole threads
Threaded hole type Sackloch
Twist angle 40° (rechts)

Usage characteristics

brass short
cast iron GGG
cast iron GGG
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
