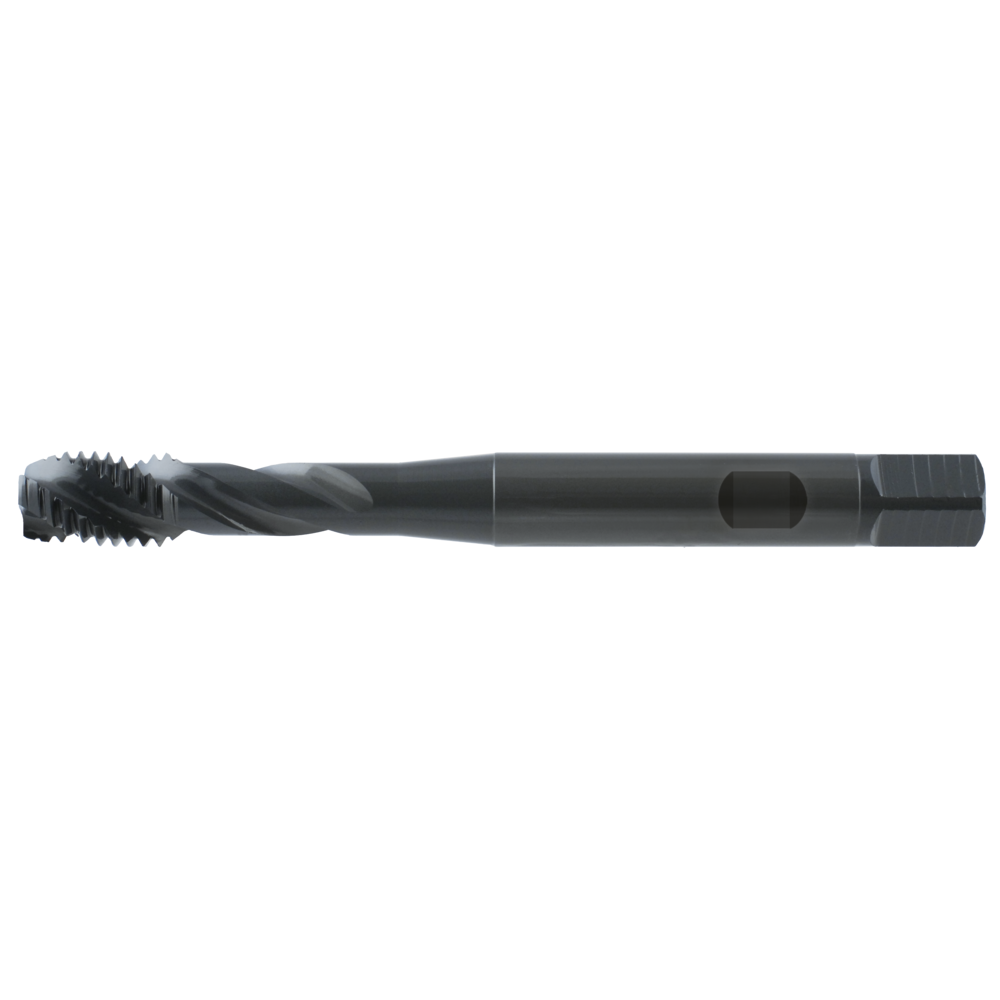

Machine tap S-SFT HSSE M3x0.5 6H DIN1835 Weldon

Machine tap S-SFT HSSE M3x0.5 6H DIN1835 Weldon
Machine tap S-SFT HSSE M3x0.5 6H DIN1835 Weldon Machine tap S-SFT HSSE M3x0.5 6H DIN1835 Weldon
Price:
19,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Machine tap S-SFT, with Weldon clamping surface
  • Metric ISO 6H thread
  • 40° spiral-fluted
  • Form C, 2.5-thread chamfer
  • Constructional dimensions DIN 371
  • Cutting material: HSS-E, vapour-treated
  • For blind-hole threads

Machine tap S-SFT, with Weldon clamping surface
  • Metric ISO 6H thread
  • 40° spiral-fluted
  • Form C, 2.5-thread chamfer
  • Constructional dimensions DIN 371
  • Cutting material: HSS-E, vapour-treated
  • For blind-hole threads

Article no./ATORN no.
1338680030
Vendor Article no.
48277138
Packaging unit
1
Catalogue page

Technical characteristics

C 4,9 mm
C 4,9 mm
Coating uncoated
Coating uncoated
Coolant design Without coolant supply
Coolant supply Nein
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D M 3 mm
D M 3 mm
D1 6 mm
D1 6 mm
DIN DIN 371
Form/Chamfer C, 2.5-thread chamfer
Form/Chamfer C
L 56 mm
L 56 mm
L1 4 mm
L1 4 mm
L2 18 mm
L2 18 mm
Max. thread depth Gewinde 2,5xD
Pitch 0,5 mm
Pitch 0,5 mm
Shank Straight with driving plane, DIN 1835 B
Spiral angle 40° RH helix angle
Spiral angle 40° RH helix angle
Standard constructional dimensions DIN DIN 371
Standard tolerance ISO 2 6H
Surface Vapour-treated
Surface Vaporisiert
Tapping hole Ø 2,5 mm
Tapping hole Ø 2,5 mm
Thread ISO metric thread
Thread ISO metric thread
Thread angle 60° thread angle °
Thread angle 60 °
Thread angle 60° thread angle °
Thread depth 2.5xD thread
Threaded hole type for blind-hole threads
Threaded hole type Sackloch
Tolerance of screw taps ISO 2 (6H)
Tool holding device Zylinderschaft HB
Twist angle 40° (rechts)

Usage characteristics

brass short
cast iron GGG
cast iron GGG
copper Cu-alloy
stainless steel austenitic
stainless steel austenitic
stainless steel duplex
stainless steel duplex
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
