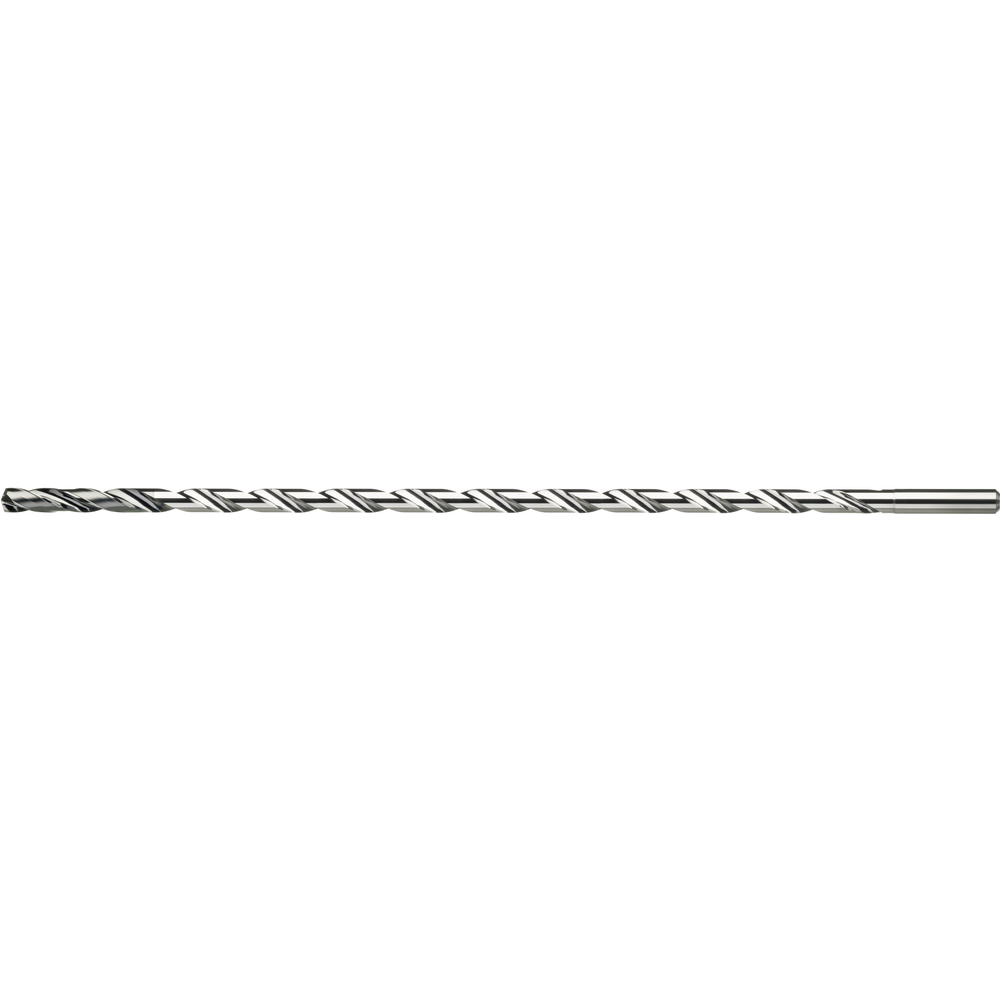

Deep-hole drill bit SC 30xD 2 mm, IC, HA, TiAlNplus HPC

Deep-hole drill bit SC 30xD 2 mm, IC, HA, TiAlNplus HPC
Deep-hole drill bit SC 30xD 2 mm, IC, HA, TiAlNplus HPC Deep-hole drill bit SC 30xD 2 mm, IC, HA, TiAlNplus HPC
Price
257,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder
Solid carbide deep-hole drill bit TiAlNplus HPC 30D
  • High-performance deep-hole drill bit with 4 guide chamfers
  • Cutting material: ultra-superfine grain solid carbide TiAlNplus
  • Excellent all-round properties and precise cutting behaviour with high cutting data
  • Unique, extremely tough, smooth, temperature-resistant and close contour TiAlN coating
  • Cutting-edge preparation minimises micro-nicks on the tool cutting edge
  • Range is coordinated by angle and diameter

Article no./ATORN no.
1115770200 / 10912771
Packaging unit
1
Catalogue page
KS-0152
Cutting values
SW-0373

Technical characteristics

A-Maß 0,41 mm
Bohrtiefe max. (D) 30xD
Coating TiAlN plus
Coolant design Internal axial
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 2,00 mm
D H7 2 mm
D1 4 mm
D1 h6 4 mm
Drallwinkel 30°
Drilling depth 30xD
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 2
Feed f steel < 1000 N/mm² 0,08 mm/rev
Feed f steel < 1000 N/mm² 0,05 mm/rev
fitness hartl total 3
Halslänge 70 mm
Konischer Übergang Halskontur (xsg) 72 mm
Kraglänge 72 mm
L 115 mm
L1 70 mm
Nutzlänge 67 mm
Oberfläche TiAlN
Point angle Point angle 135°
Schaftlänge 43 mm
Schaftlänge berechnet 43 mm
Schneidendurchmesser max. 12,0 mm
Schneidendurchmesser min. 2,0 mm
Schneidendurchmesser min./max. 2,0-12,0 mm
Schnittgeschwindigkeit (Bronze kurz) Eignung 2
Schnittgeschwindigkeit (Bronze kurz) Vc 140 m/min
Schnittgeschwindigkeit (Bronze lang) Eignung 2
Schnittgeschwindigkeit (Bronze lang) Vc 120 m/min
Schnittgeschwindigkeit (Kunststoff ) Eignung 3
Schnittgeschwindigkeit (Messing lang) Eignung 2
Schnittgeschwindigkeit (Messing lang) Vc 140 m/min
Section shape Split point
Shank Straight, DIN 6535 HA
Spiral angle 30° RH helix angle
Spitzenwinkel 135 °
Standard constructional dimensions DIN Non-DIN
Toleranz Schaftdurchmesser h5
Toleranz Schneidendurchmesser h7
Typ HPC UNI
Type Type TLP

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
