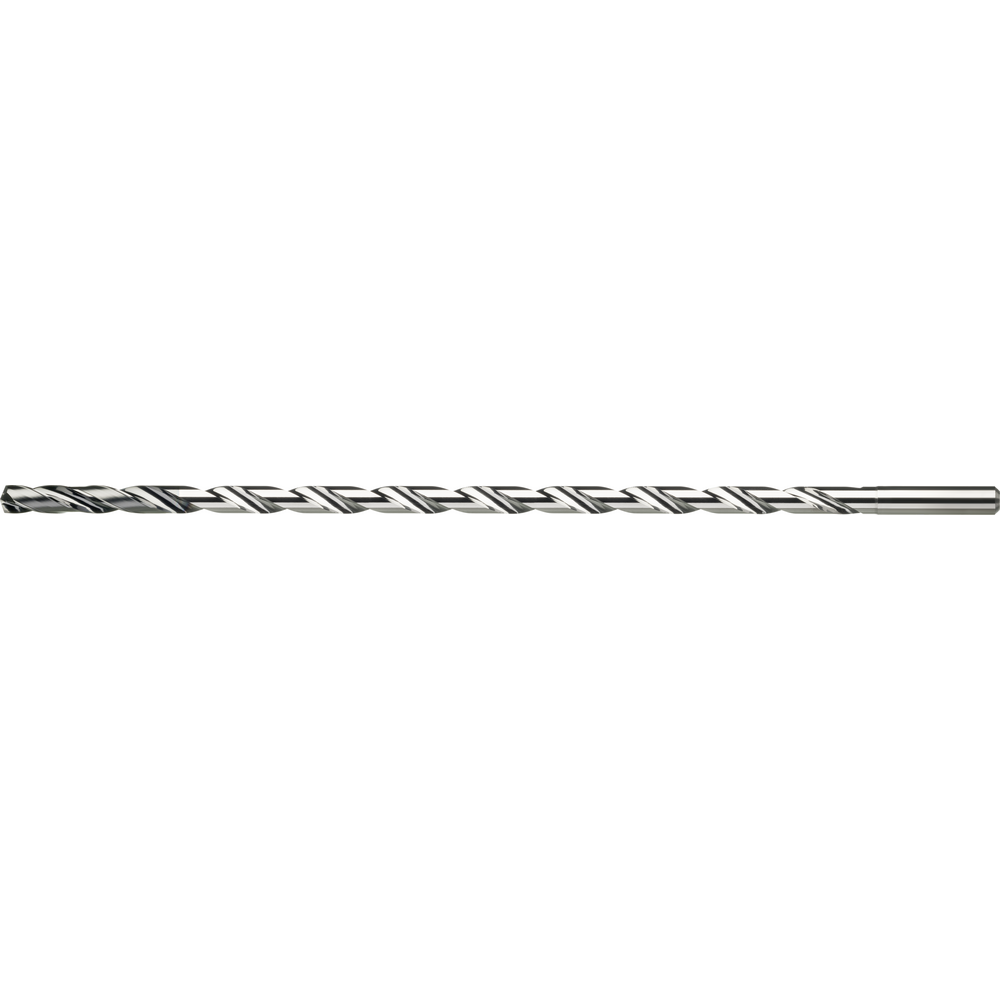

Deep-hole drill bit SC 25xD 3 mm, IC, HA, TiAlNplus HPC

Deep-hole drill bit SC 25xD 3 mm, IC, HA, TiAlNplus HPC
Deep-hole drill bit SC 25xD 3 mm, IC, HA, TiAlNplus HPC Deep-hole drill bit SC 25xD 3 mm, IC, HA, TiAlNplus HPC
Price
380,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 17:30 - delivered tomorrow.

Solid carbide deep-hole drill bit TiAlNplus HPC 25D
  • High-performance deep-hole drill bit with 4 guide chamfers
  • Cutting material: ultra-superfine grain solid carbide TiAlNplus
  • Excellent all-round properties and precise cutting behaviour with high cutting data
  • Unique, extremely tough, smooth, temperature-resistant and close contour TiAlN coating
  • Cutting-edge preparation minimises micro-nicks on the tool cutting edge
  • Range is coordinated by angle and diameter

Article no./ATORN no.
1115760300 / 10912739
Packaging unit
1
Catalogue page
KS-0151
Cutting values
SW-0373

Technical characteristics

A-Maß 0,62 mm
Coating TiAlN plus
Coolant design Internal axial
Coolant supply Internal
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3,00 mm
D H7 3 mm
D1 6 mm
D1 h6 6 mm
DIN 0 - not applicable
Drilling depth 25xD
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 2
Feed f steel < 1000 N/mm² 0,08 mm/rev
fitness hartl total 3
Halslänge 98 mm
Konischer Übergang Halskontur (xsg) 100 mm
Kraglänge 100 mm
L 135 mm
L1 98 mm
Max. drilling depth (D) 25xD
Nutzlänge 93 mm
Point angle Point angle 135°
S 135 °
Schaftlänge 35 mm
Schaftlänge berechnet 35 mm
Schneidendurchmesser max. 12,0 mm
Schneidendurchmesser min. 3,0 mm
Schneidendurchmesser min./max. 3,0-12,0 mm
Schnittgeschwindigkeit (Bronze kurz) Eignung 2
Schnittgeschwindigkeit (Bronze kurz) Vc 140 m/min
Schnittgeschwindigkeit (Bronze lang) Eignung 2
Schnittgeschwindigkeit (Bronze lang) Vc 120 m/min
Schnittgeschwindigkeit (Kunststoff ) Eignung 3
Schnittgeschwindigkeit (Messing lang) Eignung 2
Schnittgeschwindigkeit (Messing lang) Vc 140 m/min
Section shape Split point
Shank Straight, DIN 6535 HA
Spiral angle 30° RH helix angle
Standard constructional dimensions DIN Non-DIN
Surface TiAlN
Tolerance of cutting edge diameter h7
Tolerance of shank diameter h5
Tool holding device Cylinder shaft HA
Twist angle 30°
Type Type TLP
Type HPC UNI

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
