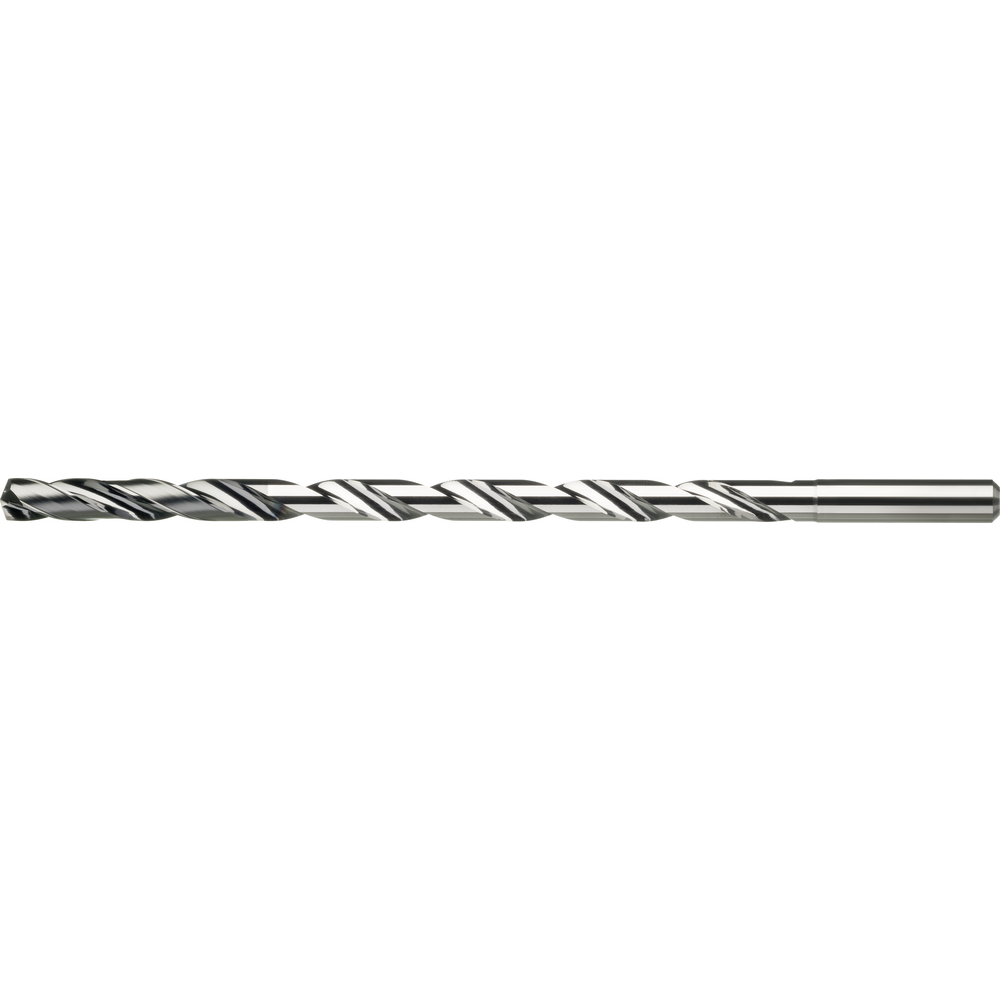

Deep-hole drill bit SC 16xD 3 mm, IC, HA, TiAlNplus HPC

Deep-hole drill bit SC 16xD 3 mm, IC, HA, TiAlNplus HPC
Deep-hole drill bit SC 16xD 3 mm, IC, HA, TiAlNplus HPC Deep-hole drill bit SC 16xD 3 mm, IC, HA, TiAlNplus HPC
Price
268,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder
Solid carbide deep-hole drill bit TiAlNplus HPC 16D
  • High-performance deep-hole drill bit with 4 guide chamfers
  • Cutting material: ultra-superfine grain solid carbide TiAlNplus
  • Excellent all-round properties and precise cutting behaviour with high cutting data
  • Unique, extremely tough, smooth, temperature-resistant and close contour TiAlN coating
  • Cutting-edge preparation minimises micro-nicks on the tool cutting edge
  • Range is coordinated by angle and diameter

Article no./ATORN no.
1115740300 / 10912678
Packaging unit
1
Catalogue page
KS-0149
Cutting values
SW-0373

Technical characteristics

A-Maß 0,62 mm
Angle of the tip - S 135 °
Coating TiAlN plus
Coolant supply Internal
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 3,00 mm
D1 6 mm
DIN 0 - nicht applicable
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 2
Feed f steel < 1000 N/mm² 0,08 mm/rev
fitness hartl total 3
Halslänge 60 mm
Konischer Übergang Halskontur (xsg) 62 mm
Kraglänge 62 mm
L 100 mm
L1 60 mm
Max. drilling depth (D) 16xD
Nutzlänge 55 mm
S 135 °
Schaftlänge 38 mm
Schaftlänge berechnet 38 mm
Schneidendurchmesser max. 12,0 mm
Schneidendurchmesser min. 3,0 mm
Schneidendurchmesser min./max. 3,0-12,0 mm
Schnittgeschwindigkeit (Bronze kurz) Eignung 2
Schnittgeschwindigkeit (Bronze kurz) Vc 160 m/min
Schnittgeschwindigkeit (Bronze lang) Eignung 2
Schnittgeschwindigkeit (Bronze lang) Vc 130 m/min
Schnittgeschwindigkeit (Kunststoff ) Eignung 3
Schnittgeschwindigkeit (Messing lang) Eignung 2
Schnittgeschwindigkeit (Messing lang) Vc 160 m/min
Section shape Split point
Tolerance of cutting edge diameter h7
Tolerance of shank diameter h6
Tool holding device HA parallel shank
Twist angle 30°
Type HPC UNI
Z 2 pc.

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
