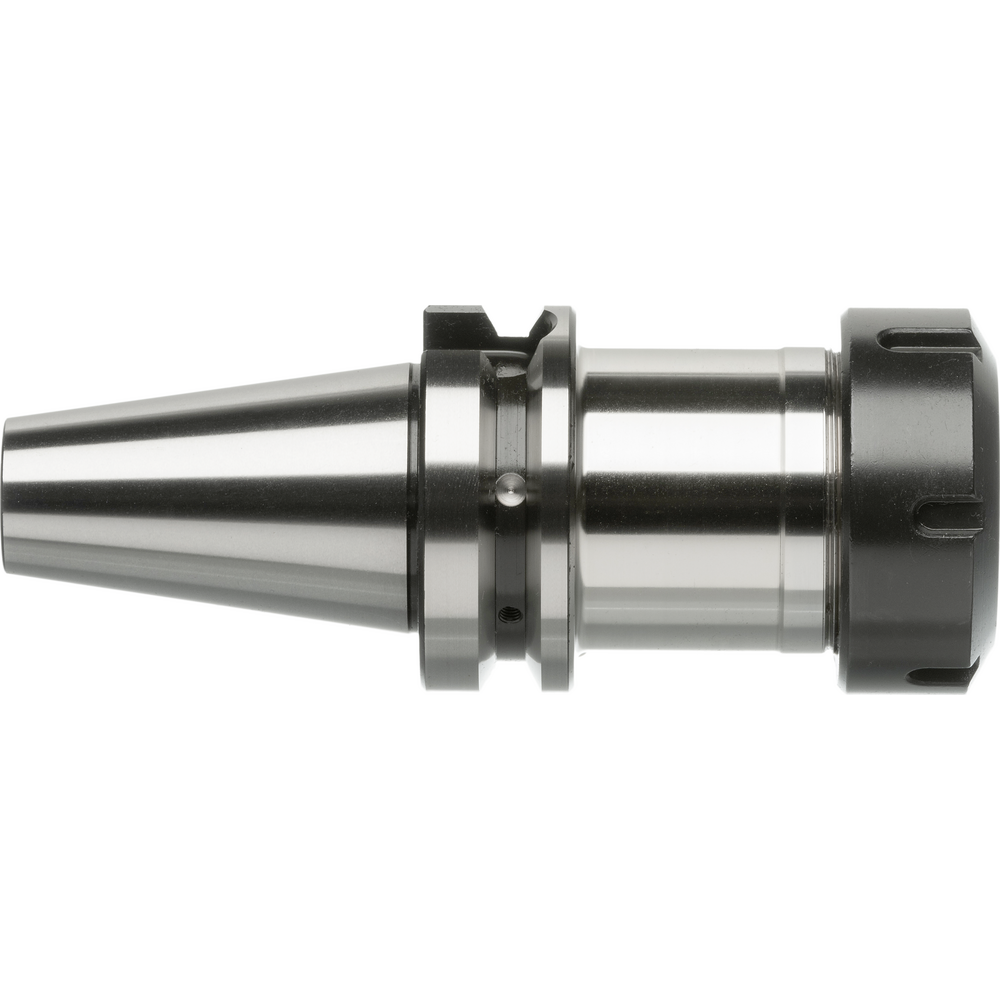

Collet chuck with planar support ER16 DIN ISO 7388-2, BT30 L=70

Collet chuck with planar support ER16 DIN ISO 7388-2, BT30 L=70
Collet chuck with planar support ER16 DIN ISO 7388-2, BT30 L=70 Collet chuck with planar support ER16 DIN ISO 7388-2, BT30 L=70
Price:
147,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
ER collet chuck with planar support
  • Pre-balanced to G 2.5 / 25,000 rpm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187
  • Max. true running accuracy < 0.005 mm
  • Internal coolant supply
  • Case hardened to HRC 60 ± 2

DIN ISO 7388-2 (JIS B 6339)
  • Internal coolant supply

ER collet chuck with planar support
  • Pre-balanced to G 2.5 / 25,000 rpm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187
  • Max. true running accuracy < 0.005 mm
  • Internal coolant supply
  • Case hardened to HRC 60 ± 2

DIN ISO 7388-2 (JIS B 6339)
  • Internal coolant supply

Article no./ATORN no.
4311073016 / 21981093
Packaging unit
1
Catalogue page
KS-1195

Technical characteristics

A 70 mm
A 70 mm
Clamping range 1-10 mm
Clamping range 1-10 mm
Collet type ER 16 (426 E)
Collet type ER 16 (426 E)
Coolant supply Yes
Coolant supply Yes
Form JD
Outer diameter 28 mm
Outer diameter 28 mm
Rundlauftoleranz 5 µm
Spannbereich Max. 10 mm
Spannbereich Min. 1 mm
Standard constructional dimensions DIN 7388-2
Standard constructional dimensions DIN 7388-2
Taper type BT 30
Taper type BT 30
Tool holding device BT 30
Tool holding device BT 30
Wuchtgüte G 6,3 bei 25000 1/min
