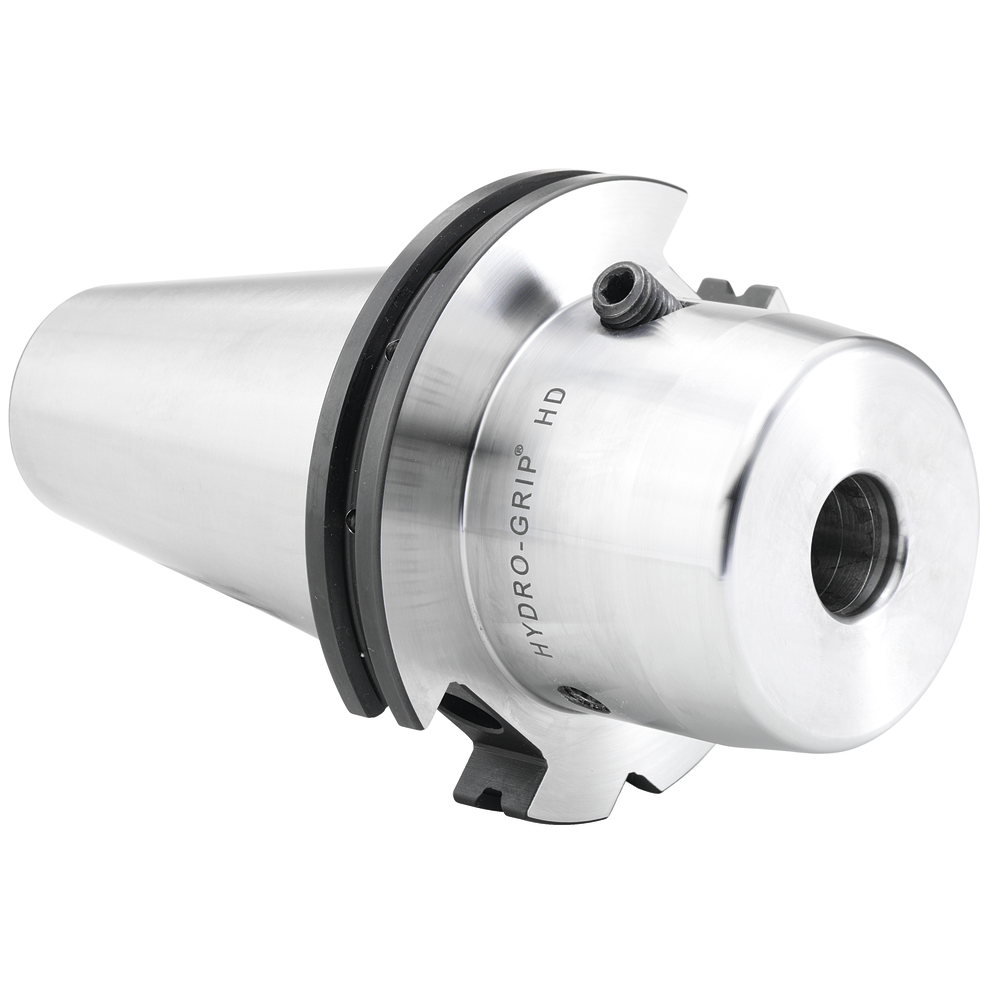

Hydraulic expansion chuck Type HG HD-20/ISO40 Ø 20 mm

Hydraulic expansion chuck Type HG HD-20/ISO40 Ø 20 mm
Hydraulic expansion chuck Type HG HD-20/ISO40 Ø 20 mm Hydraulic expansion chuck Type HG HD-20/ISO40 Ø 20 mm
Price:
399,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
powered by ETP

Hydraulic expansion chuck HYDRO-Grip HD
  • HSK 63 and ISO 40 pre-balanced to G2.5 / 25,000 rpm
  • HSK 100 and ISO 50 pre-balanced to G2.5 / 14,000 rpm
  • True running accuracy < 0.004 mm at 2.5 x D
  • Tool shank quality h6 or h7
  • Also suitable for reducing bushes
  • Rigid construction and high clamping force for heavy-duty machining

DIN ISO 7388-1 AD (DIN 69871 AD)
  • Internal coolant supply

powered by ETP

Hydraulic expansion chuck HYDRO-Grip HD
  • HSK 63 and ISO 40 pre-balanced to G2.5 / 25,000 rpm
  • HSK 100 and ISO 50 pre-balanced to G2.5 / 14,000 rpm
  • True running accuracy < 0.004 mm at 2.5 x D
  • Tool shank quality h6 or h7
  • Also suitable for reducing bushes
  • Rigid construction and high clamping force for heavy-duty machining

DIN ISO 7388-1 AD (DIN 69871 AD)
  • Internal coolant supply

Article no./ATORN no.
4338064020
Packaging unit
1
Catalogue page
KS-1190

Technical characteristics

A 90 mm
A 90 mm
D 63 mm
D 63 mm
D1 20 mm
D1 20 mm
D2 59 mm
D2 59 mm
L2 90 mm
L2 90 mm
L4 71 mm
L4 71 mm
Taper type SK40
Taper type SK40
STEP Download
Catalogue page Download
