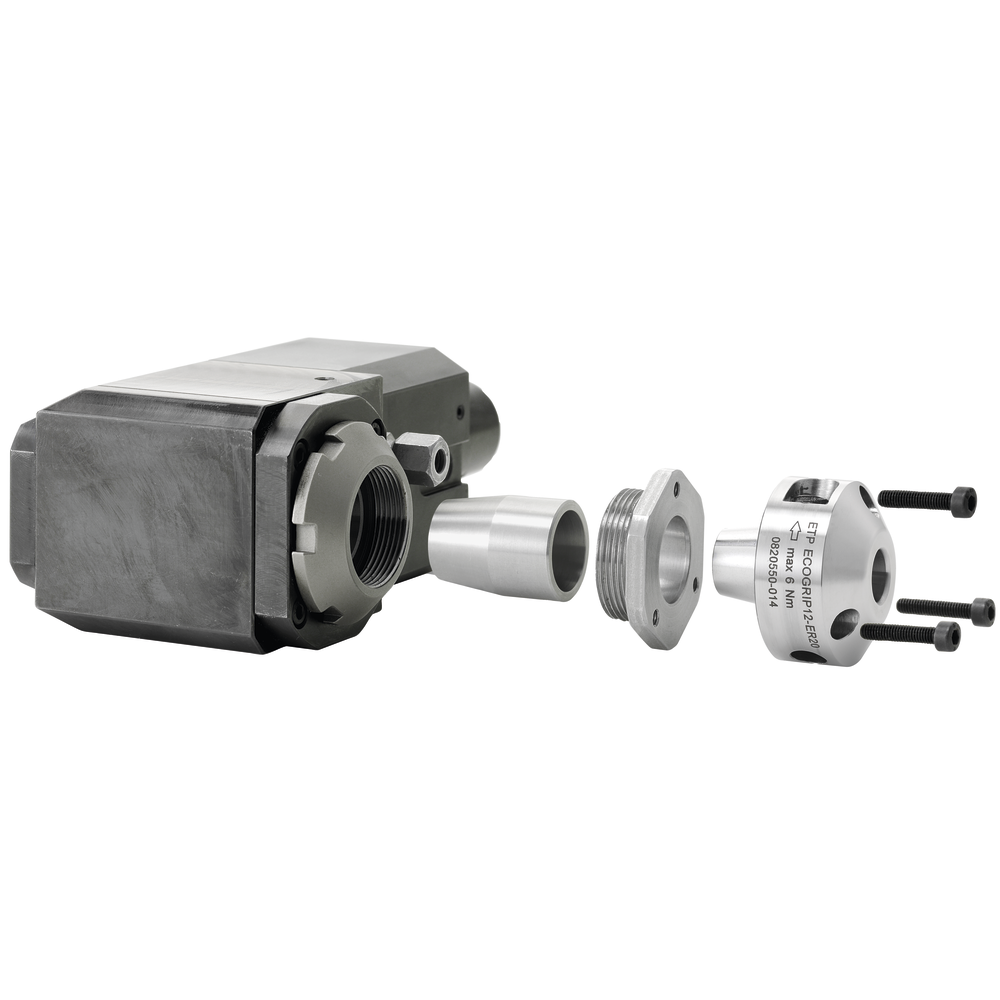

Hydraulic expansion clamp unit Type ECOGRIP-12/ER20-25 Ø12 mm with female thread

Hydraulic expansion clamp unit Type ECOGRIP-12/ER20-25 Ø12 mm with female thread
Hydraulic expansion clamp unit Type ECOGRIP-12/ER20-25 Ø12 mm with female thread Hydraulic expansion clamp unit Type ECOGRIP-12/ER20-25 Ø12 mm with female thread Hydraulic expansion clamp unit Type ECOGRIP-12/ER20-25 Ø12 mm with female thread
Price:
345,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
powered by ETP

Hydraulic expansion clamping unit ECOGRIP ER
  • renders ER collet systems hydraulic
  • Adjustable radial run-out
  • installed correctly, a true running accuracy of 0.003mm is achieved. The radial run-out can be further adjusted to the desired accuracy by slightly tightening the setting screws.

For powered tools with ER internal thread
powered by ETP

Hydraulic expansion clamping unit ECOGRIP ER
  • renders ER collet systems hydraulic
  • Adjustable radial run-out
  • installed correctly, a true running accuracy of 0.003mm is achieved. The radial run-out can be further adjusted to the desired accuracy by slightly tightening the setting screws.

For powered tools with ER internal thread
Article no./ATORN no.
4338142512
Packaging unit
1
Catalogue page
KS-1208

Technical characteristics

Connection thread M32 x 1,5
Connection thread M32 x 1,5
D1 12 mm
D1 12 mm
Designation ER20
Designation ER20
L 60,5 mm
L 60,5 mm
L2 40 mm
L2 40 mm
L3 24 mm
L3 24 mm
L4 10 mm
L4 10 mm
Outer diameter 43,5 mm
Outer diameter 43,5 mm
Wr. width 3 mm
Wr. width 3 mm
