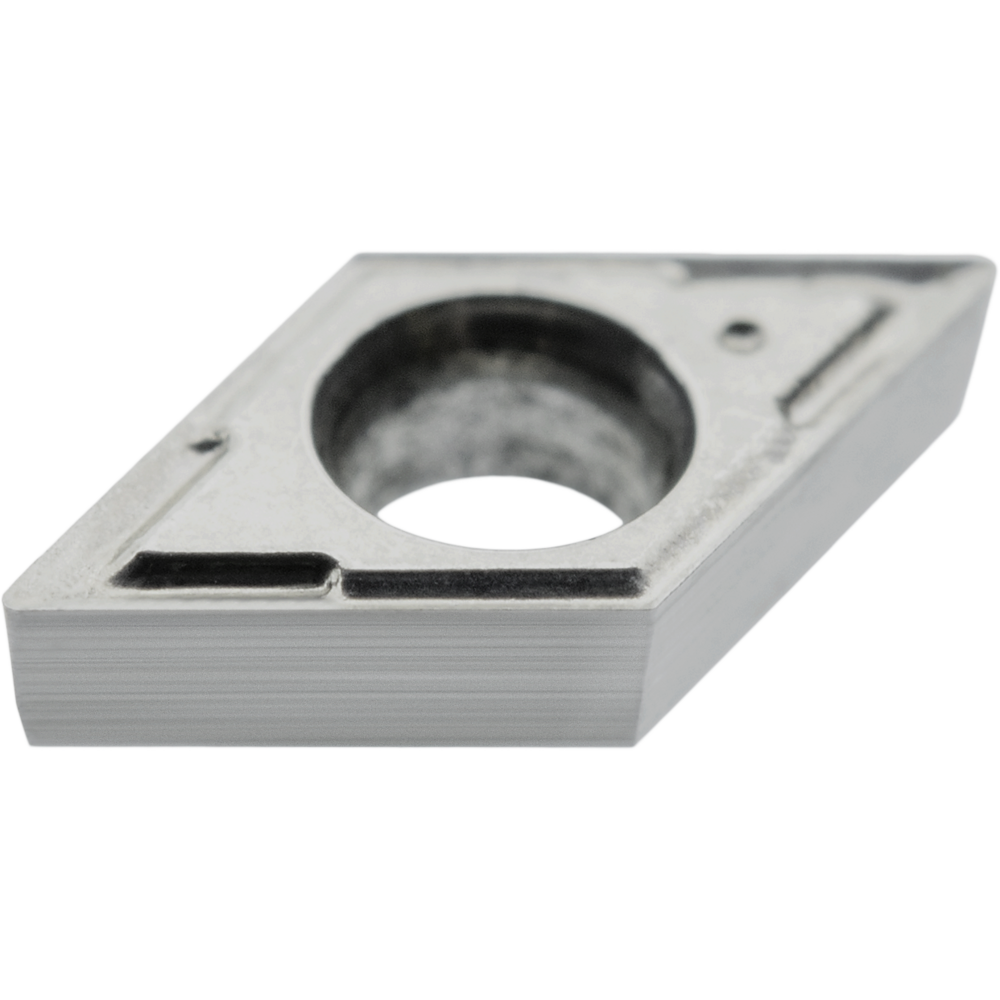

Indexable cutting insert DCGT 04T002-FP1 HC7625

Indexable cutting insert DCGT 04T002-FP1 HC7625
Indexable cutting insert DCGT 04T002-FP1 HC7625 Indexable cutting insert DCGT 04T002-FP1 HC7625
Price:
27,80 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

ISO indexable cutting inserts DCGT
  • 55° rhombic, positive 7°

Chip breaker FP1
Article no./ATORN no.
3696080312 / 12232487
Packaging unit
10
Catalogue page
KS-0953

Technical characteristics

Anzahl Stück pro Paket 10 pc.
ap max. 1,5 mm
ap min. 0,1 mm
Coating CVD
Eckenradius Wendeschneidplatte ISO 02
F finishing
F max. 0,10 mm/rev
F min. 0,05 mm/rev
Freiwinkel 7 °
Freiwinkel Wendeschneidplatte ISO C
Hartmetallsorte ISO P25
Hartmetallsortenbereich ISO P
ISO designation DCGT 04T002-FP1
ISO H 3
ISO K 2
ISO M 2
ISO N 3
ISO P 1
ISO S 3
ISO-Norm DCGT
M medium
Machining type Smoothing - Positive chip breaker for low cutting depths
Quality HC7625
Spanbrecherbezeichnung FP1
Surface Coated
Toleranzklasse Wendeschneidplatte ISO G
Vc in Edelstahl max. 120 m/min
Vc in Edelstahl min. 60 m/min
Vc in Guss max. 190 m/min
Vc in Guss min. 120 m/min
Vc in Stahl max. 220 m/min
Vc in Stahl min. 110 m/min
Wendeschneidplattendicke 1,79 mm
Wendeschneidplattenform ISO D
Wendeschneidplattengröße ISO 04
Wendeschneidplattentyp ISO T
