Cutting insert LX050.1-5R05 internal turning 4 mm a=0.9 L1=5 Dmin=1.0 mm P18C

Cutting insert LX050.1-5R05 internal turning 4 mm a=0.9 L1=5 Dmin=1.0 mm P18C
Cutting insert LX050.1-5R05 internal turning 4 mm a=0.9 L1=5 Dmin=1.0 mm P18C Cutting insert LX050.1-5R05 internal turning 4 mm a=0.9 L1=5 Dmin=1.0 mm P18C Cutting insert LX050.1-5R05 internal turning 4 mm a=0.9 L1=5 Dmin=1.0 mm P18C
Price:
38,20 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Cutting inserts mini-børe Xtraline
  • Bore machining from Ø 1 mm
  • Internal turning and copying
  • Straight shank and lateral clamping surface
  • Right-hand and left-hand versions
  • Extra stable design
  • Cutting edge with chip former

Internal turning
  • From 1 mm bore diameter

Article no./ATORN no.
3045630001
Vendor Article no.
LX050.1-5R05/P18C
Packaging unit
1
Catalogue page
KS-1041
Cutting values
SW-1105

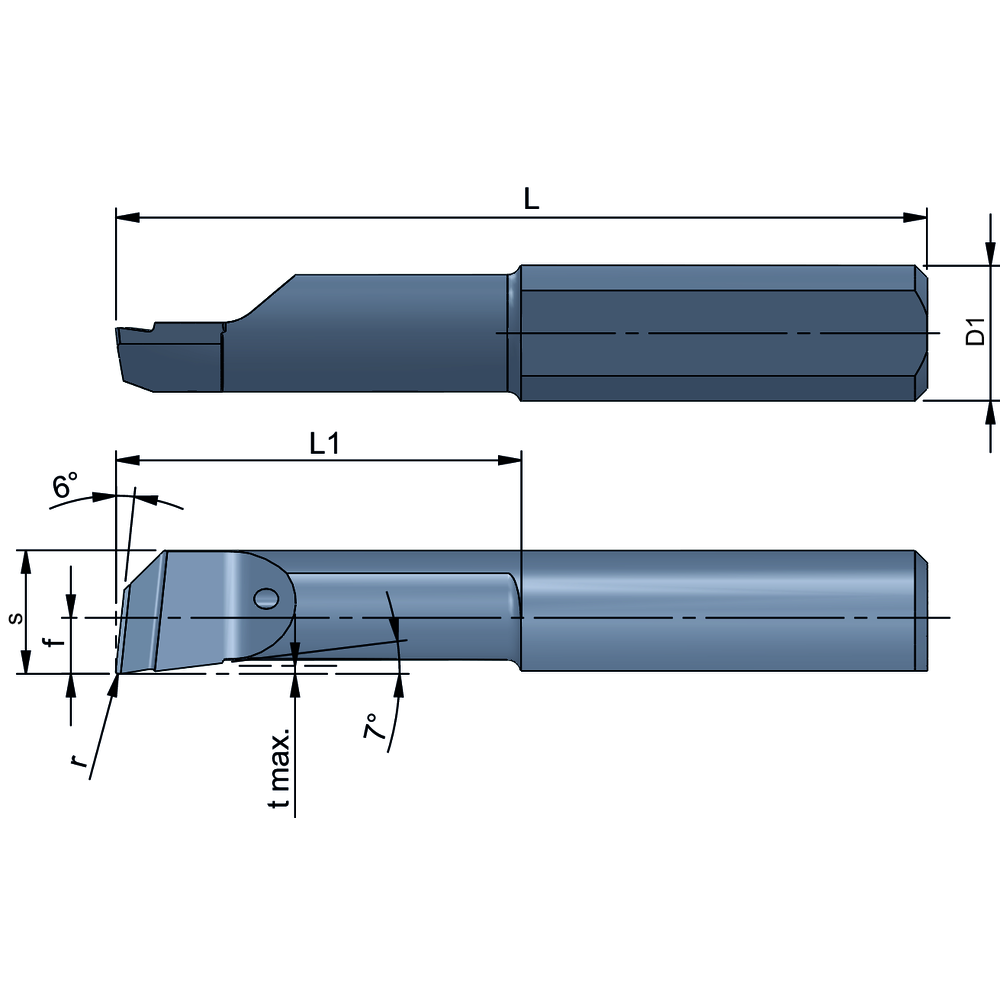

Technical characteristics

Coolant design Internal axial
Cutting data Cutting angle Information - yes
D min. 1,0 mm
D1 4,0 mm
Design P18C left-hand
Designation R/LX050.1-5R05
F 0,45 mm
L 20 mm
L1 5 mm
R 0,05 mm
R 645...
S 0,9 mm
t max. 0,03 mm
STEP Download
Catalogue page Download
Cutting values Download
